hansgrohe Activera QShowerpipe 290/180 1jet EcoSmart with ShowerTablet Select 360 Varia
Product code 28648000
Article features
- consists of: overhead shower, hand shower, thermostatic shower mixer, shower rail, slider, shower hose
- overhead shower Activera Q 290/180 1jet
- shower head size overhead shower: 290 x 180 mm
- spray type overhead shower: Rain
- spray disc surface: graphite
- removable shower head
- shelf made of plastic
- flow regulator: 8 l/min (with possible tolerances -20%)
- outlet from: 3.2 l/min

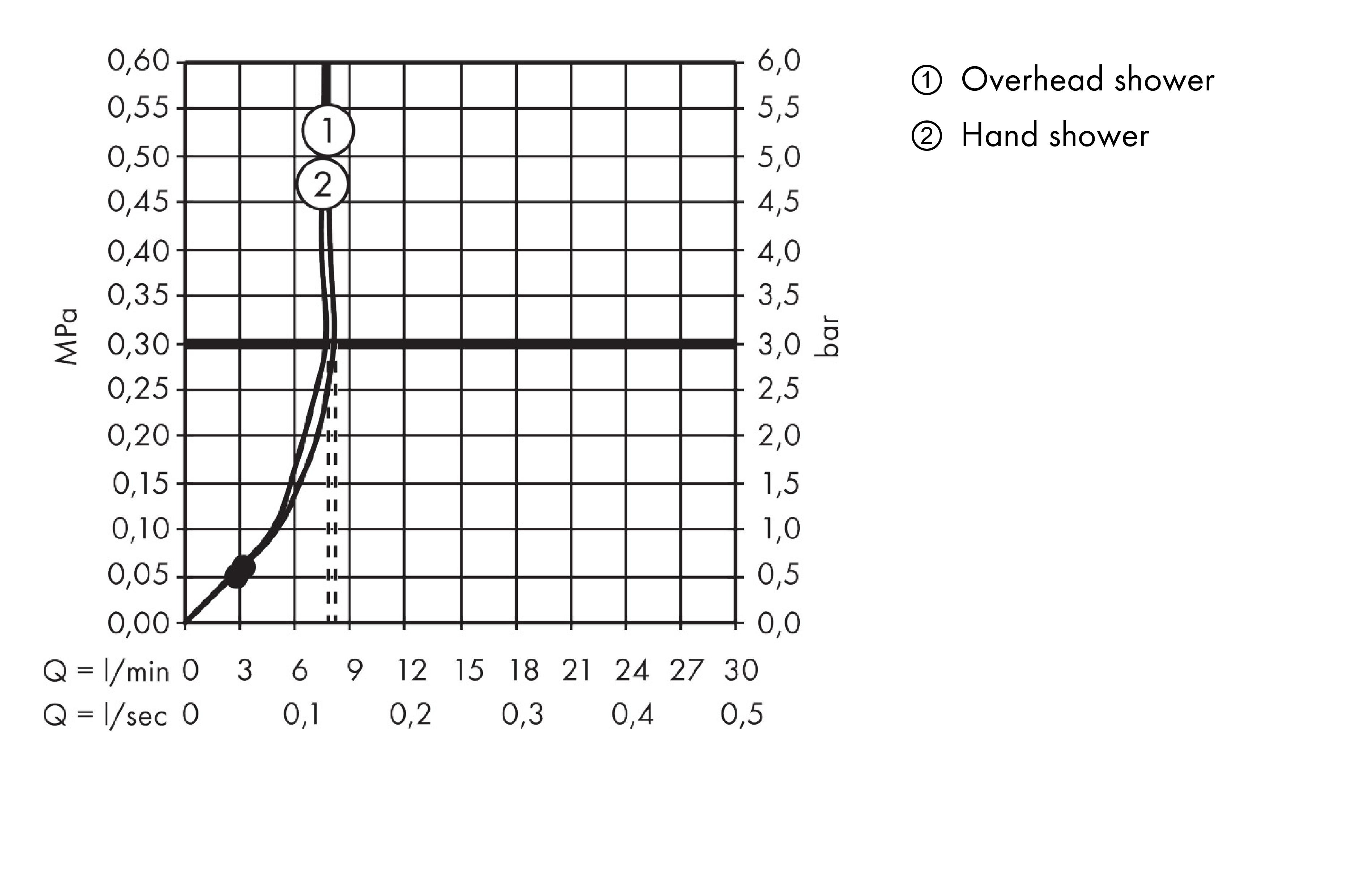

- flow rate Rain spray at 3 bar: 8.2 l/min
- spray type hand shower: Rain, ImpactRain
- flow rate of hand shower at 3 bar: 7,8 l/min
- maximum flow rate for Showerpipe at 3 bar: 8 l/min
- min. operating pressure: 0.6 bar
- max. operating pressure: 10 bar
- FlexPower: nozzles automatically adjust to water pressure by opening and closing
- convenient spray selection via Select button
- QuickClean+: reduce limescale deposits thanks to the elasticity of the nozzles
- overhead shower angle adjustable
- height-adjustable slider with locking push-button slider
- slider rotatable on the pipe for left or right operation
- shower arm length overhead shower: 344 mm
- CoolContact thermostat: Prevents the housing from heating up, making showering even safer
- thermostatic mixer ShowerTablet Select 360
- SafetyStop at 40°C
- adjustable hot water limitation
- simultaneous utilization of 2 outlets
- exposed installation
- connection dimension: DN15
- connection thread: G ½
- centre distance: 150 ± 12 mm (fittings offset 17 mm to the right)
- variable wall support
- variable drilling hole distance: 700 - 850 mm
- pipe can be shortened in height
- intrinsically safe against backflow
- shower rail diameter: 22 mm
- 2 outlets
Consists of
Downloads
Innovative technologies
Safe and indulgent showering
Want to save water? With pleasure!
FlexPower - Top performance with less water
Effectively reduces annoying limescale buildup
Great showering pleasure
Always constant water temperature
Safety lock at over 40 °C
Intuitive jet adjustment
Flexible mounting with variable wall support.
Angle-adjustable overhead shower
CoolContact
Safe and indulgent showering
This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.
EcoSmart
Want to save water? With pleasure!
Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.
FlexPower
FlexPower - Top performance with less water
Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.
QuickClean+
Effectively reduces annoying limescale buildup
Elastic spray nozzles that constantly expand and return to their original position, reducing limescale buildup. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.
XXL Performance
Great showering pleasure
XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.
Thermostat
Always constant water temperature
Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
