hansgrohe Activera SShowerpipe 240 1jet EcoSmart+ mit Ecostat Fine Varia
Product code 28083000
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- consists of: overhead shower, hand shower, thermostatic shower mixer, shower rail, slider, shower hose
- overhead shower Activera S 240 1 jet
- shower head size overhead shower: 240 mm
- spray type overhead shower: Rain
- spray disc surface: graphite
- removable shower head
- flow regulator: 6 l/min (with possible tolerances -20%)
- outlet from: 2,9 l/min

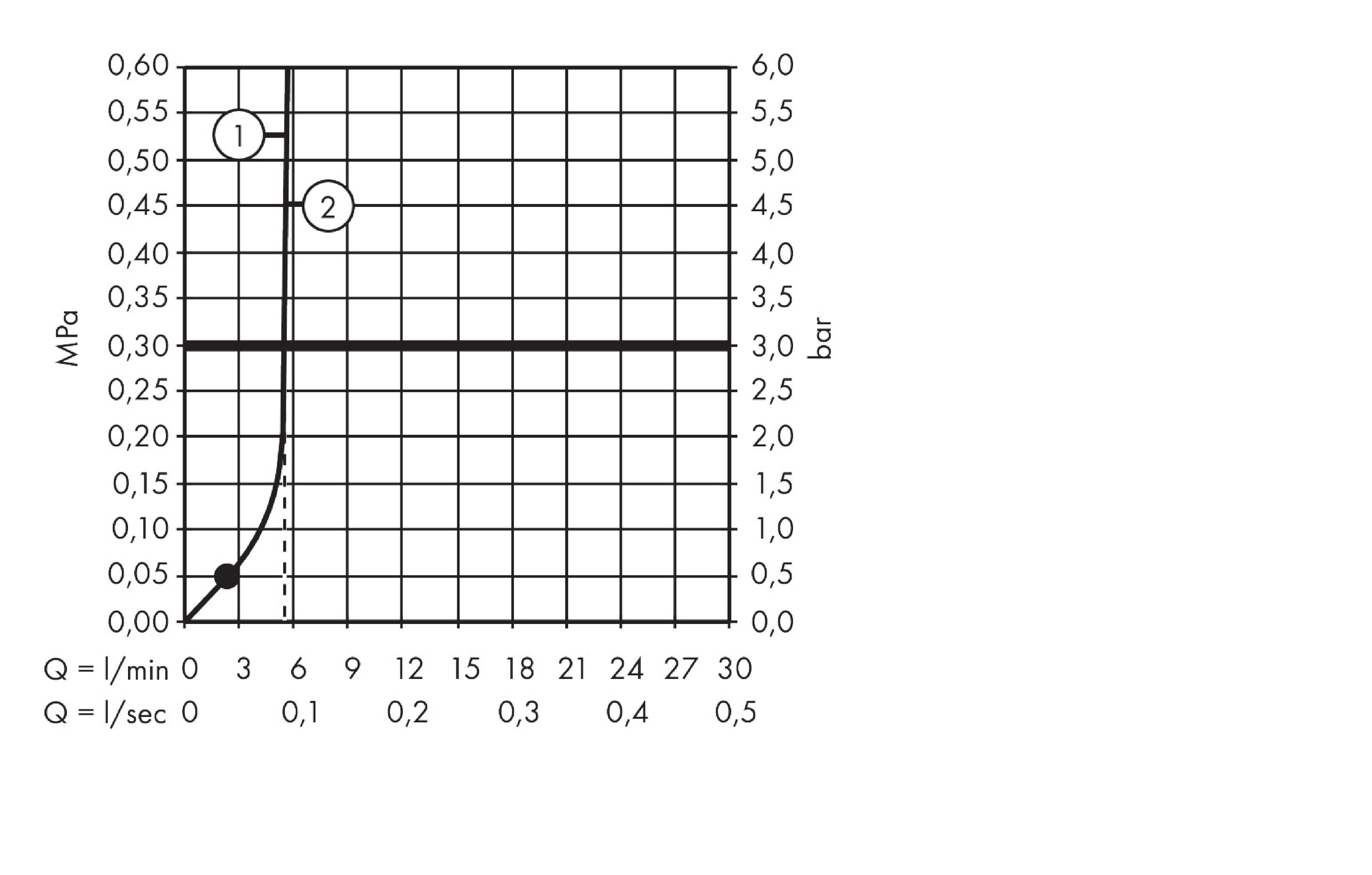

- flow rate Rain spray at 3 bar: 5.5 l/min
- spray type hand shower: Rain, ImpactRain
- flow rate of hand shower at 3 bar: 5.7 l/min
- maximum flow rate for Showerpipe at 3 bar: 6 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- FlexPower: nozzles automatically adjust to water pressure by opening and closing
- convenient spray selection via Select button on the hand shower
- QuickClean+: reduce limescale deposits thanks to the elasticity of the nozzles
- overhead shower angle adjustable
- height-adjustable slider with locking push-button slider
- slider rotatable on the pipe for left or right operation
- shower arm length overhead shower: 344 mm
- thermostatic mixer Ecostat Fine
- SafetyStop at 40°C
- adjustable hot water limitation
- temperature and water flow control
- Outlets may not be operated simultaneously
- exposed installation
- connection dimension: DN15
- connection thread: G ½
- centre distance: 150 ± 12 mm
- variable wall support
- variable drilling hole distance: 750 - 900 mm
- pipe can be shortened in height
- intrinsically safe against backflow
- shower rail diameter: 22 mm
- 2 outlets
- WRAS 241002006
Consists of
Downloads
Certificates
Innovative technologies
FlexPower - Top performance with less water
Flexible, elastic nozzles in the spray head ensure greater comfort and efficiency when showering.
Effectively reduces annoying limescale buildup
Elastic spray nozzles expand and return to their original position, reducing limescale buildup.
Great showering pleasure
Large-scale distribution of the water in the shower so that the whole body is cocooned in feel-good droplets.
Always constant water temperature
Thermostat with integrated temperature control for constant water temperature.
For mindful use of water
Actively regulates water consumption – the amount of water can be adjusted via the control dial.
Safety lock at over 40 °C
Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Intuitive jet adjustment
A playful way to control the water flow, shower or spray type at the simple touch of a button.
Flexible mounting with variable wall support.
Full installation flexibility by using existing holes for easy renovation.
Angle-adjustable overhead shower
The angle of the overhead shower can be adjusted and the water spray can be individually adapted.
Ergonomic Push Slider
The height of the hand shower can be single-handedly and smoothly shifted at the touch of a button.
FlexPower
FlexPower - Top performance with less water
Flexible, elastic nozzles in the spray head ensure greater comfort and efficiency when showering.
QuickClean+
Effectively reduces annoying limescale buildup
Elastic spray nozzles expand and return to their original position, reducing limescale buildup.
XXL Performance
Great showering pleasure
Large-scale distribution of the water in the shower so that the whole body is cocooned in feel-good droplets.
Thermostat
Always constant water temperature
Thermostat with integrated temperature control for constant water temperature.
Water flow control
For mindful use of water
Actively regulates water consumption – the amount of water can be adjusted via the control dial.
SafetyStop
Safety lock at over 40 °C
Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Select
Intuitive jet adjustment
A playful way to control the water flow, shower or spray type at the simple touch of a button.
VarioFix
Flexible mounting with variable wall support.
Full installation flexibility by using existing holes for easy renovation.
Spray Types
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
