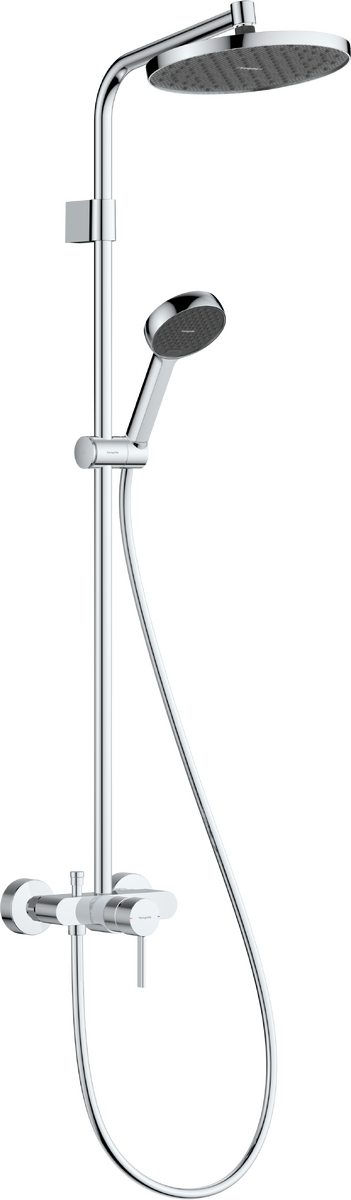

hansgrohe Activera SShowerpipe 240 1jet EcoSmart with single lever mixer Varia
Product code 28875000
Please try again.
Article features
- consists of: shower rail, overhead shower, hand shower, slider, single lever manual shower mixer, shower hose
- overhead shower Activera S 240 1 jet
- shower head size overhead shower: 240 mm
- spray type overhead shower: Rain
- spray disc surface: graphite
- FlexPower: nozzles automatically adjust to water pressure by opening and closing
- QuickClean+: avoid limescale deposits thanks to the elasticity of the nozzles
- flow regulator: 8 l/min (with possible tolerances -20%)
- spray type hand shower: Rain, ImpactRain

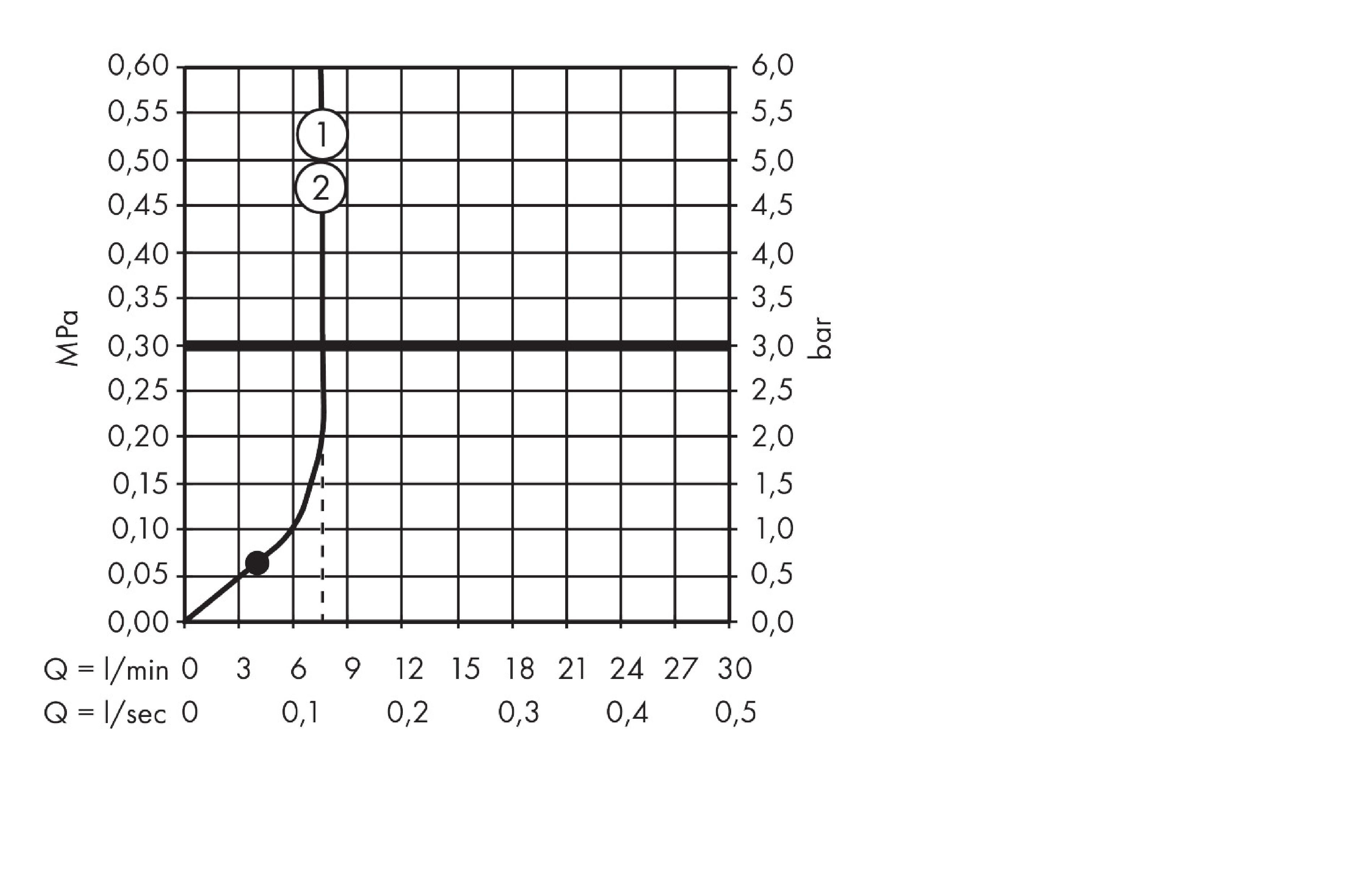

- flow rate of hand shower at 3 bar: 7,8 l/min
- maximum flow rate for Shower pipe at 3 bar: 8 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- overhead shower angle adjustable
- convenient spray selection via Select button on the hand shower
- variable wall support
- variable drilling hole distance: 750 - 850 mm
- pipe can be shortened in height
- shower rail diameter: 22 mm
- height-adjustable hand shower holder
- shower arm length overhead shower: 350 mm
- exposed installation
- connection dimension: DN15
- connection thread: G ½
- centre distance: 150 ± 12 mm
- ceramic cartridge
- temperature limitation adjustable
- 2 outlets
- removable shower head
- slider rotatable on the pipe for left or right operation
- flow rate Rain 7,8 l/min at 3 bar
Consists of
Downloads
Technical drawings
Innovative technologies
Want to save water? With pleasure!
Great showering pleasure
Intuitive jet adjustment
Effectively prevents annoying limescale buildup
Angle-adjustable overhead shower
FlexPower - Top performance with less water
Flexible mounting with variable wall support.
EcoSmart
Want to save water? With pleasure!
Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.
XXL Performance
Great showering pleasure
XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
QuickClean+
Effectively prevents annoying limescale buildup
Elastic silicone nozzles constantly open and close preventing limescale build-up. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.
Adjustable Shower Head
Angle-adjustable overhead shower
The angle of the overhead shower can be tilted so that the shower rain is adjusted to suit the specific shower area or a person’s height. The water sprays can then work their feel-good magic and envelop the whole body.
FlexPower
FlexPower - Top performance with less water
Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.
VarioFix
Flexible mounting with variable wall support.
The flexible wall support allows the use of existing drill holes and individual installation of shower bars. Ideal for easy shower and bathtub renovations.
Spray Types
