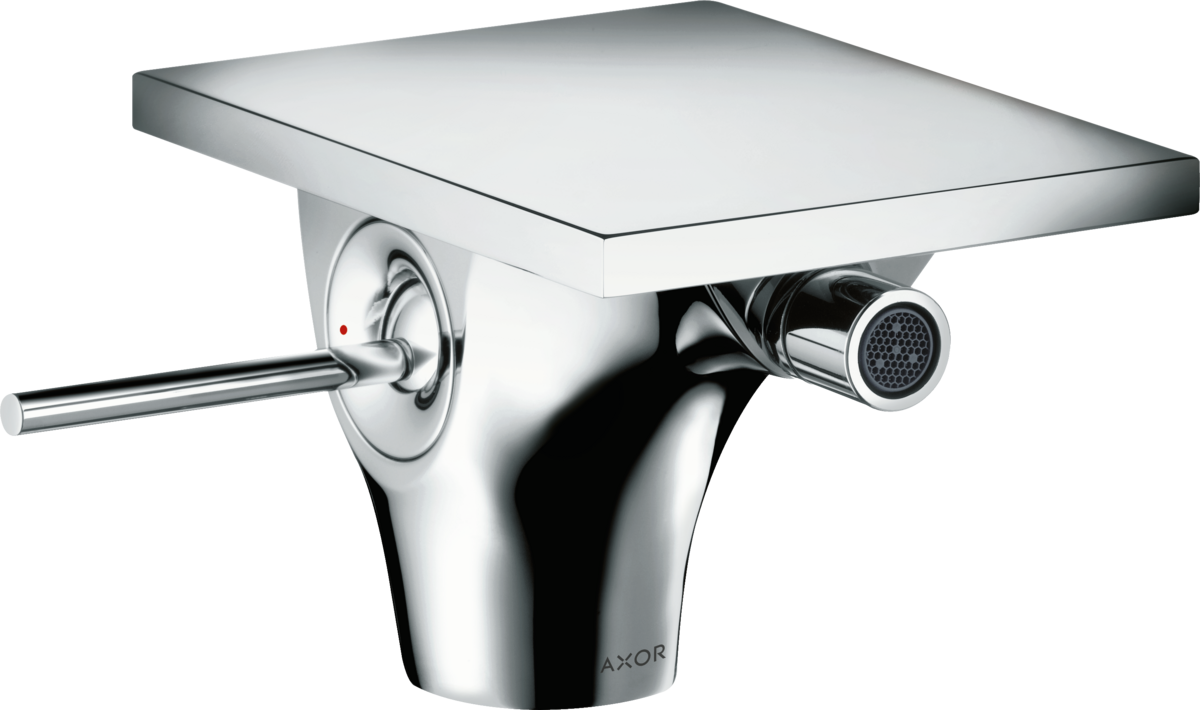

AXOR MassaudSingle lever bidet mixer with pop-up waste
Product code 18210000
Article features
- Consists of: single lever bidet mixer, waste set
- spout 105 mm long
- with fixed spout
- swivel joint enables directional spray
- Spray pattern: laminar spray
- Maximum flow rate (at 3 bar): 7.2 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- easy control joystick handle
- pop-up waste set 1¼"
- ⅜" hose connections
Downloads
Technical drawings
Spare parts for build year 07/16
| Item no. |
|---|
| a | pop up waste94139000 |
| c | service tool for disassembling the handle92124000 |
| b | fixation extension 35 mm13898000 |
| 1 | cover98651000 |
| 2 | escutcheon92989000 |
| 3 | O-ring 35x1,592114000 |
| 4 | handle92490000 |
| 5 | O-ring 9x298119000 |
| 6 | nut95667000 |
| 7 | O-ring 30x1,598433000 |
| 8 | cartridge, assy96339000 |
| 9 | O-ring 21,95x1,7895169000 |
| 10 | ball joint97362000 |
| 11 | aerator laminar M16x1 (7 l/min)97360000 |
| 12 | pull rod97158000 |
| 13 | flat seal98749000 |
| 14 | fixing set (Ø 32)13961000 |
| 15 | lever collar97548000 |
| 16 | connection hose 450 mm M8x0,75 G3/897206000 |
| 17 | O-ring 7x1,598422000 |
| 18 | filter97973000 |
