AXOR OneShowerpipe with thermostat and overhead shower 280 1jet for concealed installation
Product code 48796000
Please try again.
Article features
- consists of: overhead shower, hand shower, slider, thermostatic shower mixer, shower hose, shower rail
- overhead shower AXOR One 280 1 Jet
- shower head size overhead shower: 280 mm
- spray type overhead shower: PowderRain and Rain in combination
- flow regulator: 12 l/min (with possible tolerances ± 10 %)
- outlet from: 8.8 l/min

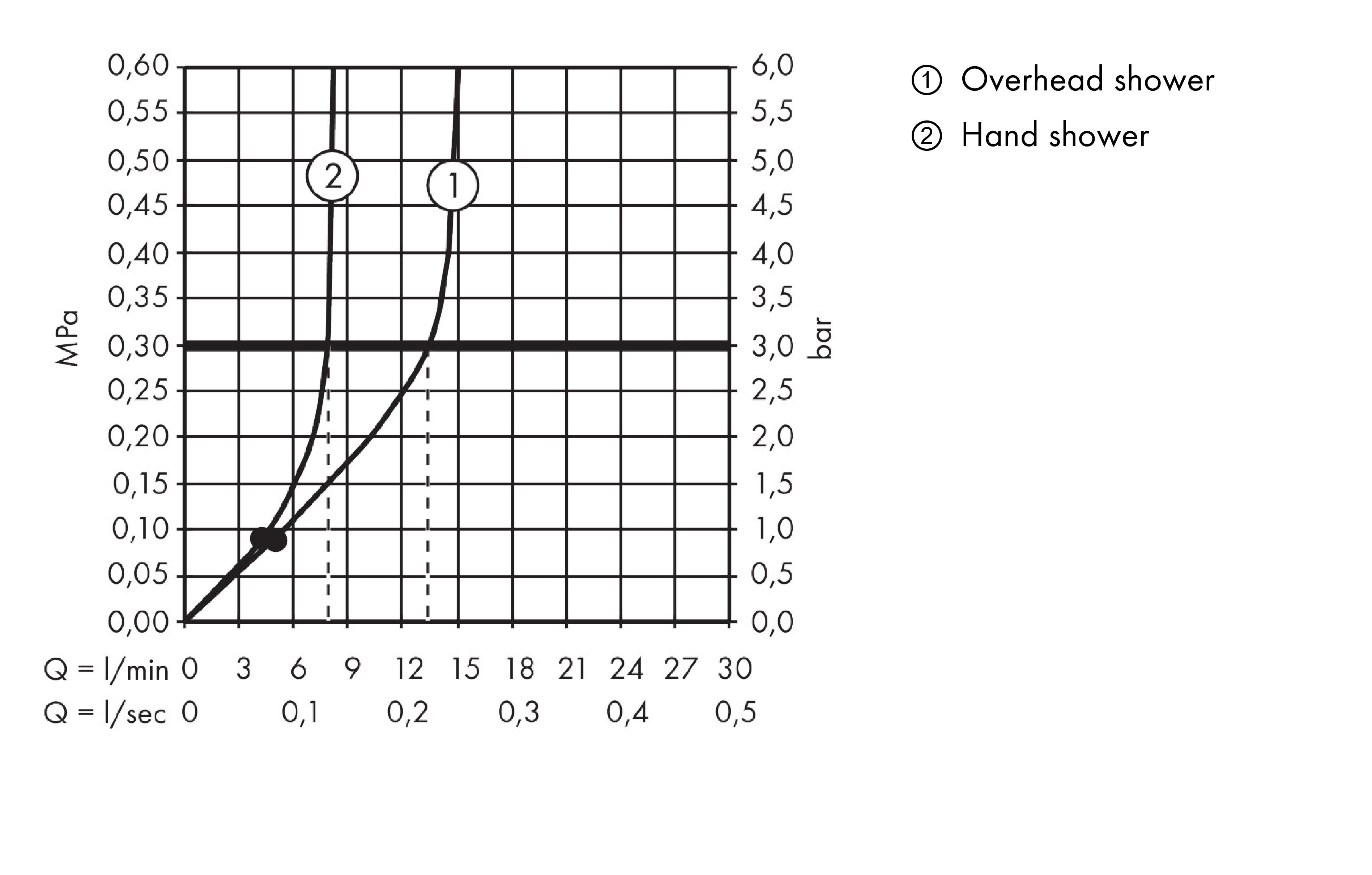

- flow rate PowderRain and Rain spray in combination at 3 bar: 10.7 l/min
- spray type hand shower: PowderRain
- flow rate of hand shower at 3 bar: 9.1 l/min
- maximum flow rate for Showerpipe at 3 bar: 12 l/min
- min. operating pressure: 0.9 bar
- max. operating pressure: 10 bar
- overhead shower angle adjustable
- height-adjustable slider
- swivelling shower arm
- SafetyStop at 40°C
- temperature and water flow control
- concealed
- connection type: basic set
- connection thread: G ½
- intrinsically safe against backflow
- 2 outlets
Consists of
Downloads
Required parts
Innovative technologies
Always constant water temperature
For mindful use of water
Safety lock at over 40 °C
Thermostat
Always constant water temperature
Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Water flow control
For mindful use of water
The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
