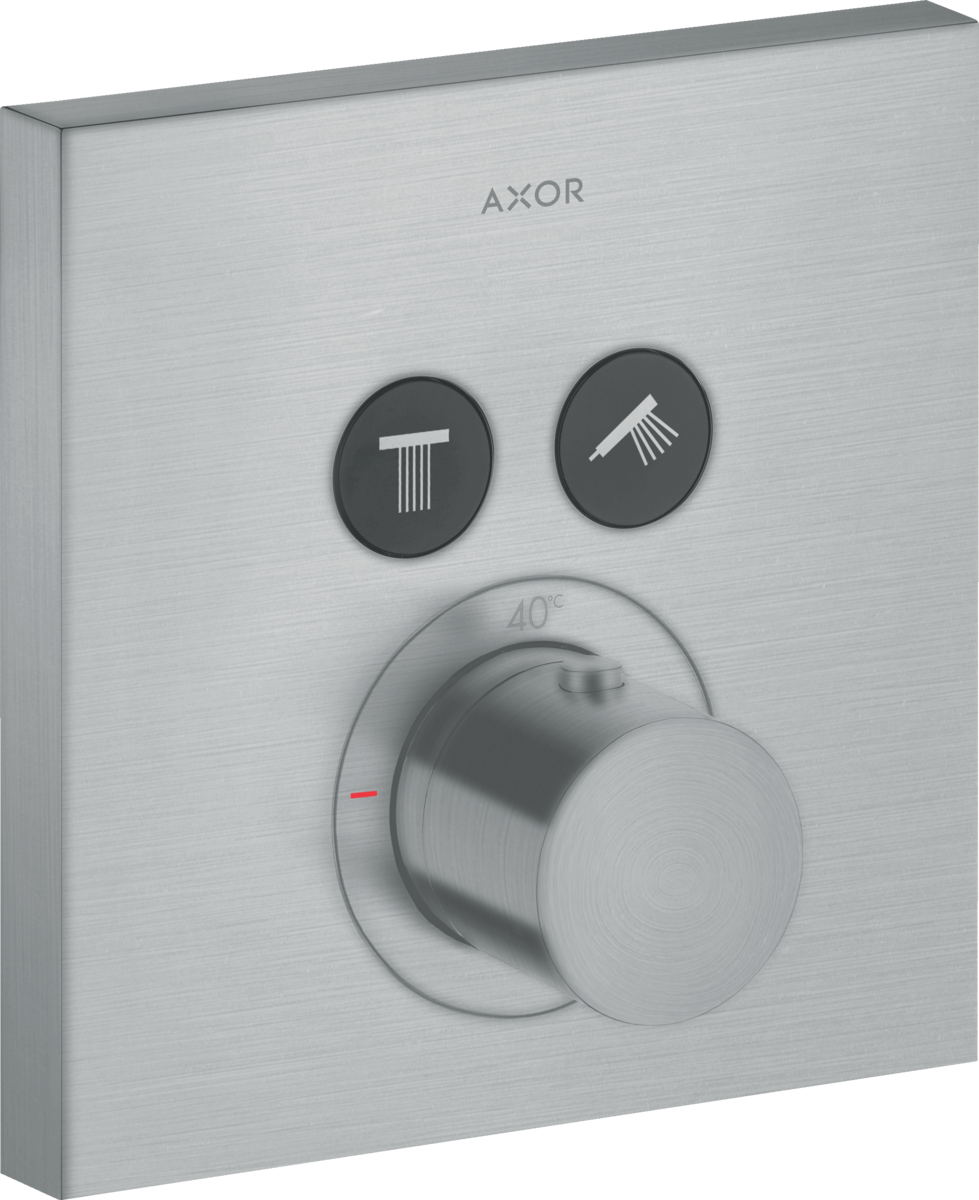

AXOR ShowerSolutionsThermostatic mixer square for concealed installation for 2 outlets
Product code 36715260
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- designed to run 2 outlets
- multiple outlets can be run simultaneously
- Select push button on / off control for 2 outlets
- T30
- Installation type: concealed installation
- Maximum flow rate (at 3 bar): 29.7 l/min
- Flow rate upper outlet (at 3 bar): 25 l/min
- Flow rate lower outlet (at 3 bar): 23 l/min
- Flow rate by simultaneous use of all outlets (at 3 bar): 29.7 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Safety stop at 40°C
- Maximum temperature can be adjusted on installation
- Connection type: basic set
- thermostat is delivered with buttons Rain large and hand shower
- WRAS 2004021
Downloads
Download all files
Download all files
Required parts
Spare parts for build year 11/16
| Item no. |
|---|
| b | adapter for exchanged connections93181000 |
| a | concealed item01800180 |
| 1 | handle for thermostat92534260 |
| 2 | handle fixing set95843000 |
| 3 | escutcheon 170 / 170 mm92642260 |
| 4 | set of symbols92544610 |
| 5 | O-Ring 48x395508000 |
| 6 | safety set for temperature control97334000 |
| 7 | sleeve92546260 |
| 8 | holder for escutcheon98793000 |
| 9 | set of fixing screws96454000 |
| 10 | Select-adapter92219000 |
| 11 | nut98368000 |
| 12 | nut98913000 |
| 13 | thermostat cartridge98282000 |
| 14 | adapter for handle98701000 |
| 15 | O-ring 25x2,592146000 |
| 16 | O-ring 25x1,598146000 |
| 17 | O-ring 20x1,598197000 |
| 18 | shut off unit95758000 |
| 19 | O-ring 36x298156000 |
| 20 | set of screws96525000 |
| 21 | O-ring 16x298133000 |
| 22 | noise reduction94073000 |
| 23 | non return valve97980000 |
| 24 | non return valve (pressure-resistant up to 2 MPa)92594000 |
| 25 | extension 25 mm13595000 |
| 26 | set of fixing screws97747000 |
| 27 | extension 22 mm97407260 |
| 28 | compensation set 1°95521000 |
| 29 | fit-up aid92540000 |
| 30 | symbol head shower Rain large93571610 |
| 31 | symbol head shower Rain small93572610 |
| 32 | symbol handshower93573610 |
| 33 | symbol Flood jet93574610 |
| 34 | symbol Whirl93575610 |
| 35 | symbol Mono93576610 |
| 36 | symbol tub93577610 |
| 37 | symbol body shower93578610 |
| 38 | symbol ON/OFF93579610 |
Innovative technologies
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
Always constant water temperature
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
Thermostat
Always constant water temperature
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Five-year manufacturer’s guarantee
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
