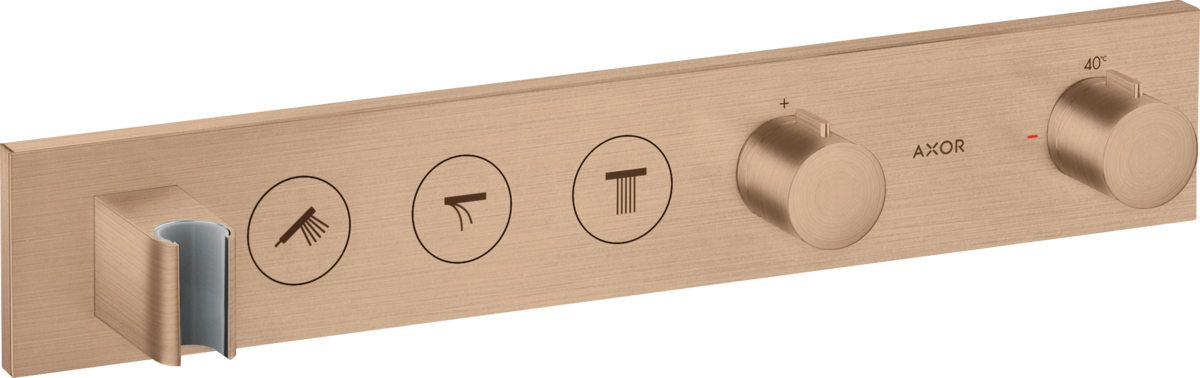

AXOR ShowerSolutionsThermostatic module Select 530/90 for concealed installation for 3 outlets
Product code 18356310
Please try again.
Article features
- consists of: thermostatic mixer module, shower holder
- 3 outlets
- simultaneous use of several outlets
- Select push-button on/off control for 3 outlets
- depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off outlet
- thermostatic mixer cartridge, Start/stop valve to operate the outlets
- installation type: concealed installation
- maximum flow rate at 3 bar: 26 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- Safety stop at 40 °C
- temperature limitation adjustable
- for shower hoses with a conical nut
- connection type: basic set
- thermostatic mixer is delivered with buttons Rain large, Waterfall, hand shower
- noise class: I
- WRAS 2207061
Downloads
Innovative technologies
Always constant water temperature
For mindful use of water
Safety lock at over 40 °C
Intuitive jet adjustment
Thermostat
Always constant water temperature
Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Water flow control
For mindful use of water
The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
