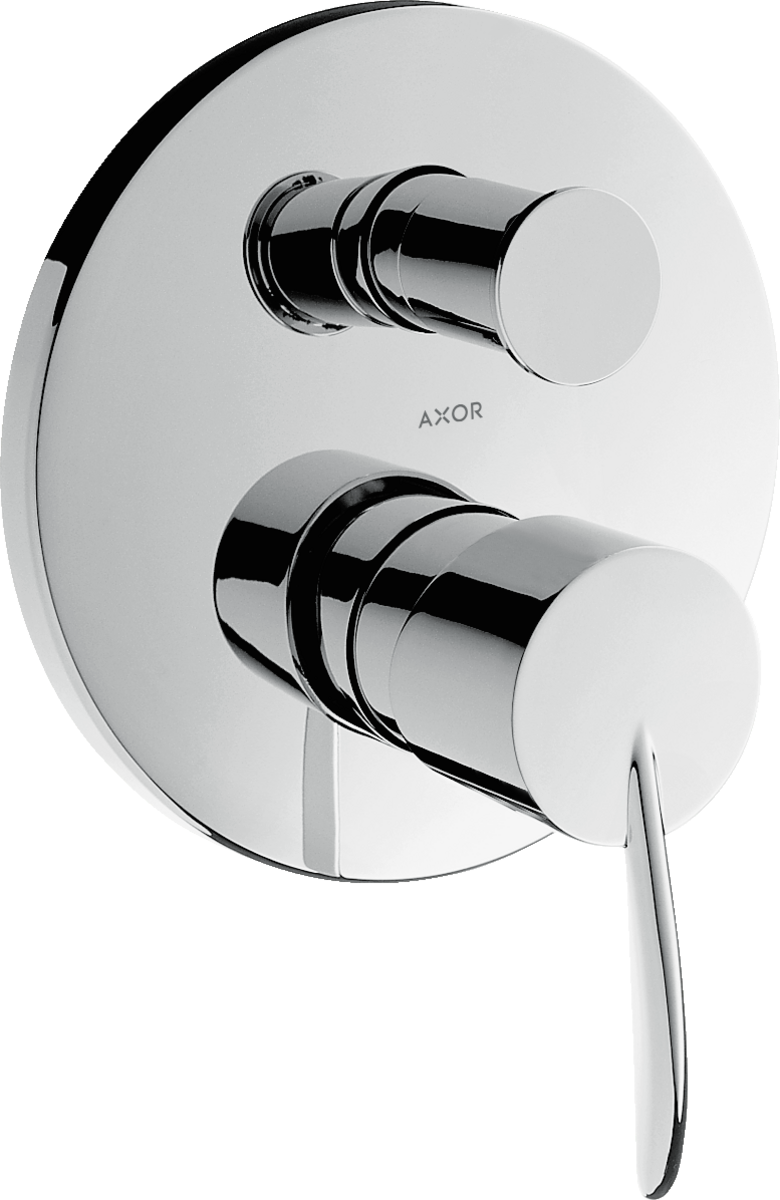

AXOR Starck ClassicSingle lever manual bath mixer for concealed installation
Product code 10415000
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- designed to run 2 outlets
- Flow rate upper outlet (at 3 bar): 21 l/min
- Flow rate lower outlet (at 3 bar): 28 l/min
- ceramic cartridge
- Maximum temperature can be adjusted on installation
- diverter with automatic resetting
- with silencer
- concealed installation
- Noise class: I
- Connection type: basic set
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- WRAS 1903005
Downloads
Technical drawings
Required parts
Spare parts for build year 01/17
| Item no. |
|---|
| c | spring for exchanged connections96365000 |
| b | adapter for exchanged connections93181000 |
| a | concealed item01800180 |
| d | fixation set96615000 |
| 1 | handle10492000 |
| 2 | screw cover96338000 |
| 3 | diverter knob cpl.96934000 |
| 4 | escutcheon Ø 170 mm95806000 |
| 5 | O-Ring 48x395508000 |
| 6 | O-ring 29x398371000 |
| 7 | flange95010000 |
| 8 | sleeve96448000 |
| 9 | O-ring 43x1,598148000 |
| 10 | sub plate96447000 |
| 11 | set of fixing screws96454000 |
| 12 | nut98796000 |
| 13 | O-ring 30x1,598433000 |
| 14 | O-ring 39x1,598400000 |
| 15 | cartridge, assy92730000 |
| 16 | locking screw for handle95140000 |
| 17 | seal95008000 |
| 18 | set of screws96525000 |
| 19 | selector assy95014000 |
| 20 | O-ring 17x298199000 |
| 21 | O-ring 20x2,592602000 |
| 22 | O-ring 16x298133000 |
| 23 | noise reduction94073000 |
| 24 | extension 25 mm13595000 |
| 25 | set of fixing screws97747000 |
| 26 | extension 22 mm (Ø 170 mm)13596000 |
| 27 | escutcheon height = 33 mm (when wall is not deep enough).14961000 |
