Concealed cistern 1120 for wall hung WC, UK

NEW
Concealed cistern 1120 for wall hung WC
 View in AR
 360° View

Product code 01025180

Article features

  • material: steel
  • material cistern: plastic
  • material drainage pipe: Polypropylene (PP)
  • quality class cistern: Polyethylene (PE)
  • pipe outer diameter flushing pipe: 45 mm
  • center distance WC fastening: 180 mm, 230 mm
  • drainage pipe depth adjustable: 75 - 115 mm
  • suitable for flush flow throttling
  • position tap water connection: back, side
  • wall type: drywall construction
  • pipe outer diameter drainage: 90 mm
  • dimension connection tap water: R ½
  • water connection: external thread
  • suitable for shower toilet
  • drain pipe with adapter DN 90/110 made of PP, frame for wall hung Wcs with projection up to 70 cm
  • flush volume factory setting: 6 l, 3 l
  • wall mounting: with wall mounting
  • WRAS 2111392

Downloads

Certificates

WRAS (Water Regulations Advisory Scheme)

 The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Installation information

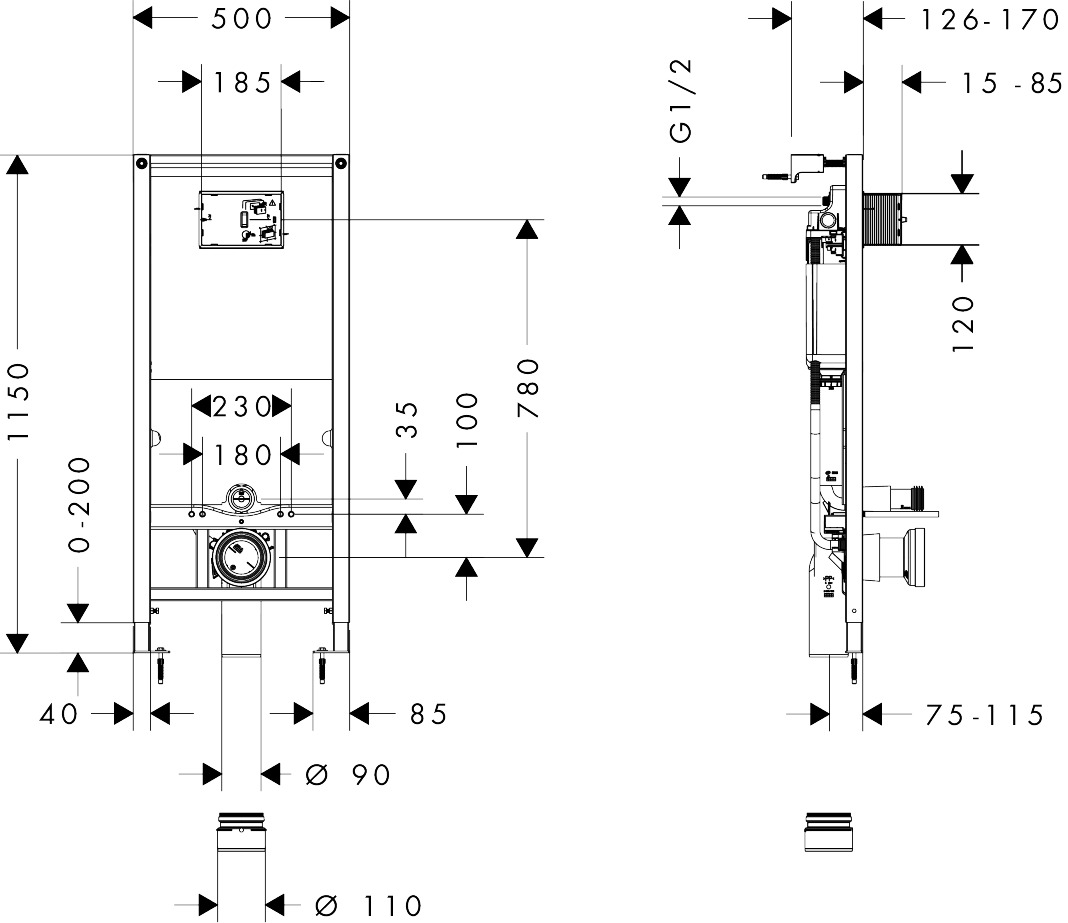

Scale drawing

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
