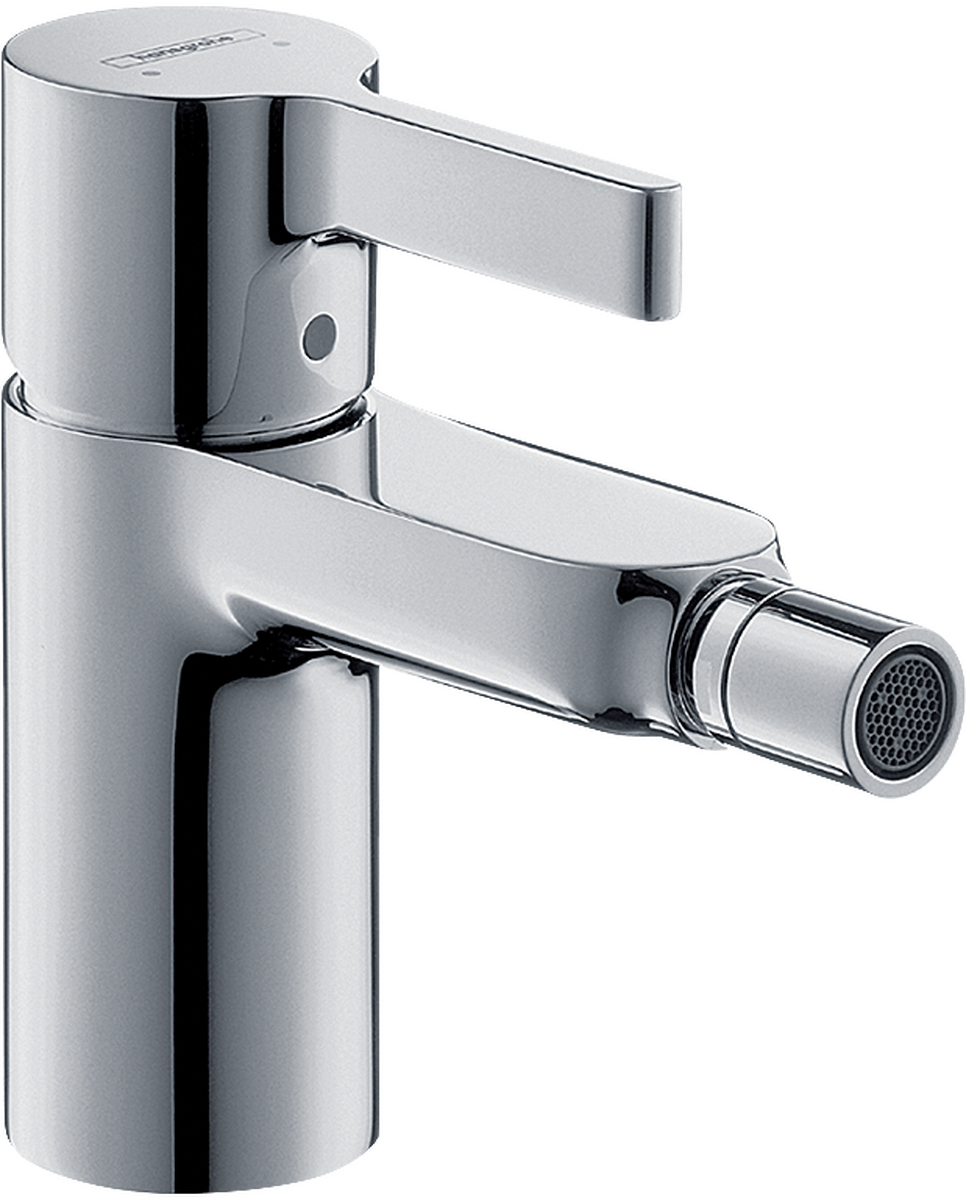

hansgrohe Metris SSingle lever bidet mixer with pop-up waste
Product code 31261000
Article features
- Consists of: single lever bidet mixer, waste set
- spout 122 mm long
- with fixed spout
- swivel joint enables directional spray
- Spray pattern: laminar spray
- Maximum flow rate (at 3 bar): 7.2 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- ceramic cartridge
- Maximum temperature can be adjusted on installation
- Material waste set: metal
- ⅜" hose connections
Downloads
Technical drawings
Spare parts for build year 04/17
| Item no. |
|---|
| a | pop up waste94139000 |
| b | fixation extension 35 mm13898000 |
| 1 | handle31093000 |
| 2 | screw cover96338000 |
| 3 | flange97406000 |
| 4 | nut97209000 |
| 5 | O-Ring 32x298193000 |
| 6 | cartridge, assy92730000 |
| 7 | locking screw for handle95140000 |
| 8 | seal95008000 |
| 9 | adapter for cartridge98750000 |
| 10 | O-Ring 30x298186000 |
| 11 | connection hose 450 mm M8x0,75 G3/897206000 |
| 12 | O-ring 6,6x1,693019000 |
| 13 | O-ring 35x292604000 |
| 14 | ball joint97362000 |
| 15 | aerator laminar M16x1 (7 l/min)97360000 |
| 16 | flat seal98749000 |
| 17 | fixing set (Ø 32)13961000 |
| 18 | lever collar97548000 |
| 19 | pull rod96657000 |
