hansgrohe Raindance Alive QDesign ShowerSet 210/340 1jet with thermostat and basic set iBox universal 2
Product code 24620000
Please try again.
Article features

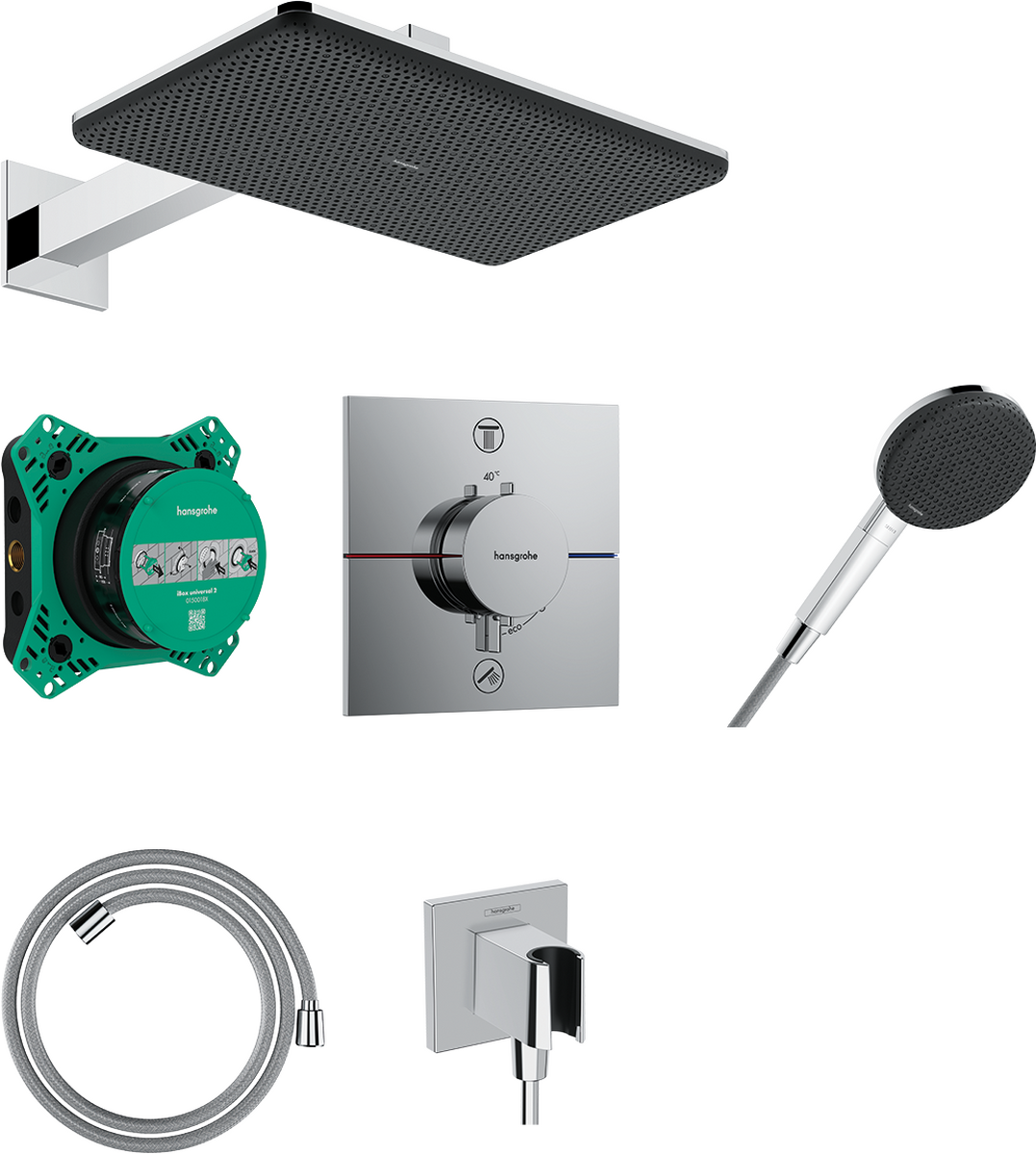

- consists of: overhead shower, shower arm, hand shower, wall outlet with shower holder, textile shower hose, thermostatic shower mixer, basic set
- shower head size: 214 x 343 mm
- shower arm length: 390 mm
- spray type overhead shower: RainAir, or PowderRain
- Spray Type Switch: RainAir (preset), change to PowderRain can be selected upon installation or changed easily at any later stage
- QuickClean technology for easy limescale removal

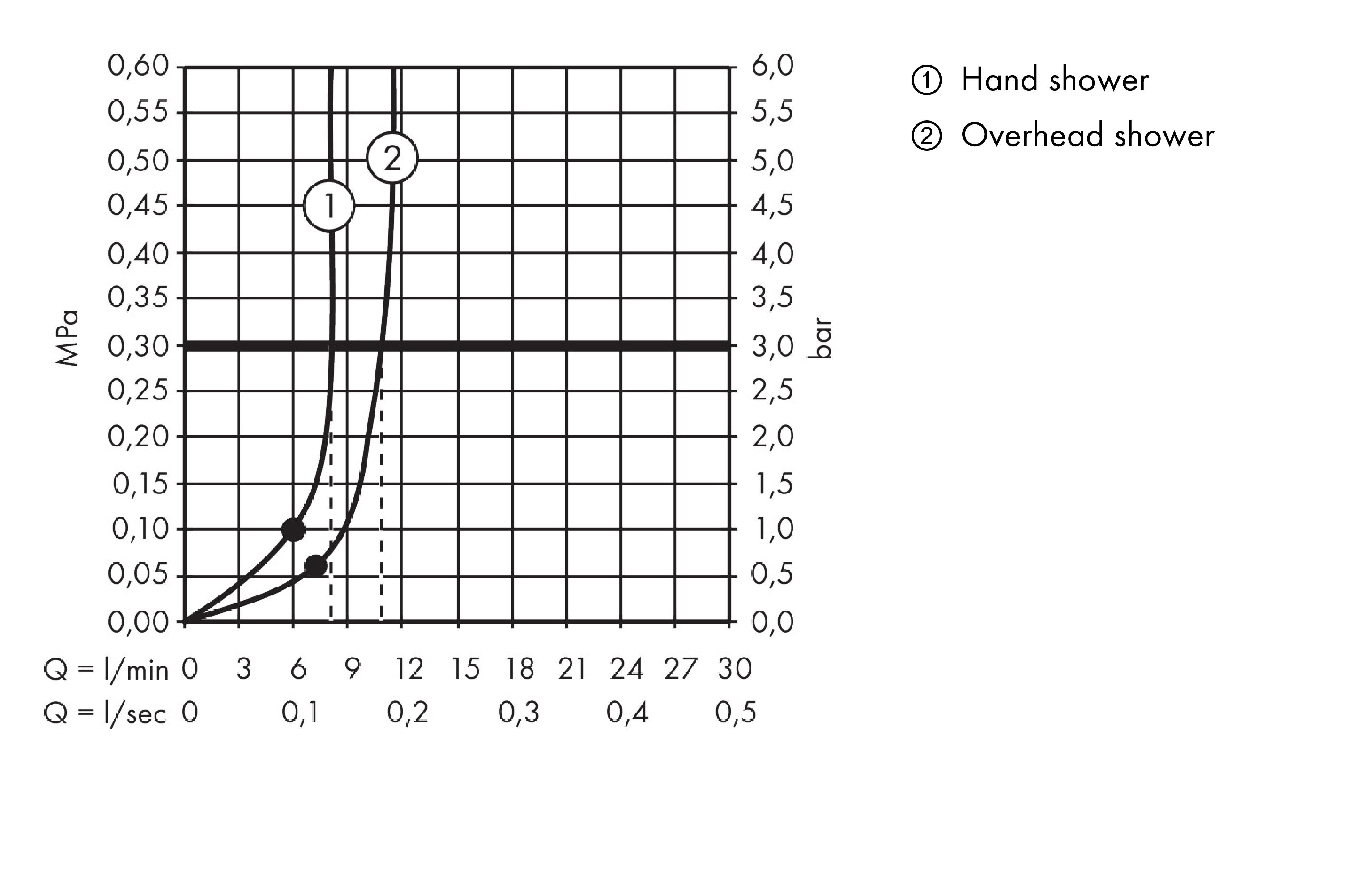

- flow rate PowderRain spray at 3 bar: 11 l/min
- material spray disc overhead shower: anodised aluminium
- spray type hand shower: RainAir, PowderRain, Massage spray
- maximum flow rate at 3 bar: 11 l/min
- min. operating pressure: 1.9 bar
- max. operating pressure: 10 bar
- comfortable turning on / off of outlets with large Select-paddle
- easy installation due to pre-assembled outlet block
- handles always at the same height regardless of the installation depth of the basic set
- design cover conceals the nozzles
- design cover can be removed easily and without tools for cleaning
- design cover surface: graphite
- thermostatic mixer: ShowerSelect Comfort E
- SafetyStop at 40°C
- Designflex textile shower hose, water-resistant and water-repellant material, unique design with multi-coloured braided yarns, yarns are made of recycled PET, warm, cotton-like material feels great to the skin
- shower hose length: 1600 mm
- 1x conical nut, 1x cylindrical nut
- pivot connector prevents hose from tangling
- material handles: metal
- connection type: basic set iBox universal 2 (# 01500180)
- simultaneous use of several outlets
- flow regulator: 12 l/min (with possible tolerances ± 10 %)
Consists of
Downloads
Technical drawings
Innovative technologies
Always constant water temperature
Great showering pleasure
Intuitive jet adjustment
Less limescale, more joy
Safety lock at over 40 °C
For mindful use of water
For maximum security
Quick and safe installation
More pleasure, more efficiency
Thermostat
Always constant water temperature
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
XXL Performance
Great showering pleasure
XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Water flow control
For mindful use of water
The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
Water damage protection
For maximum security
Avoid water damage with a pre-assembled sealing membrane. It is 100% waterproof. This prevents any shower water from getting through the wall or floor for a reliable and safe showering experience.
Easy Installation
Quick and safe installation
Quick and safe installation - several features ensure easy installation. With well thought-out designs and installation aids, we make our specialist partners' working lives easier.
