hansgrohe Raindance Alive QShowerpipe 210/340 1jet EcoSmart with ShowerSelect Comfort
Product code 24581000
Please try again.
Article features
- consists of: overhead shower, hand shower, slider, thermostatic shower mixer, shower hose, shower rail
- overhead shower Raindance Alive Q 210/340 1 Jet
- shower head size overhead shower: 214 x 343 mm
- spray type overhead shower: Rain, or PowderRain
- Spray Type Switch: allows the spray type to be changed even after installation, Rain (preset), change to PowderRain can be selected upon installation or changed easily at any later stage
- spray disc surface: graphite

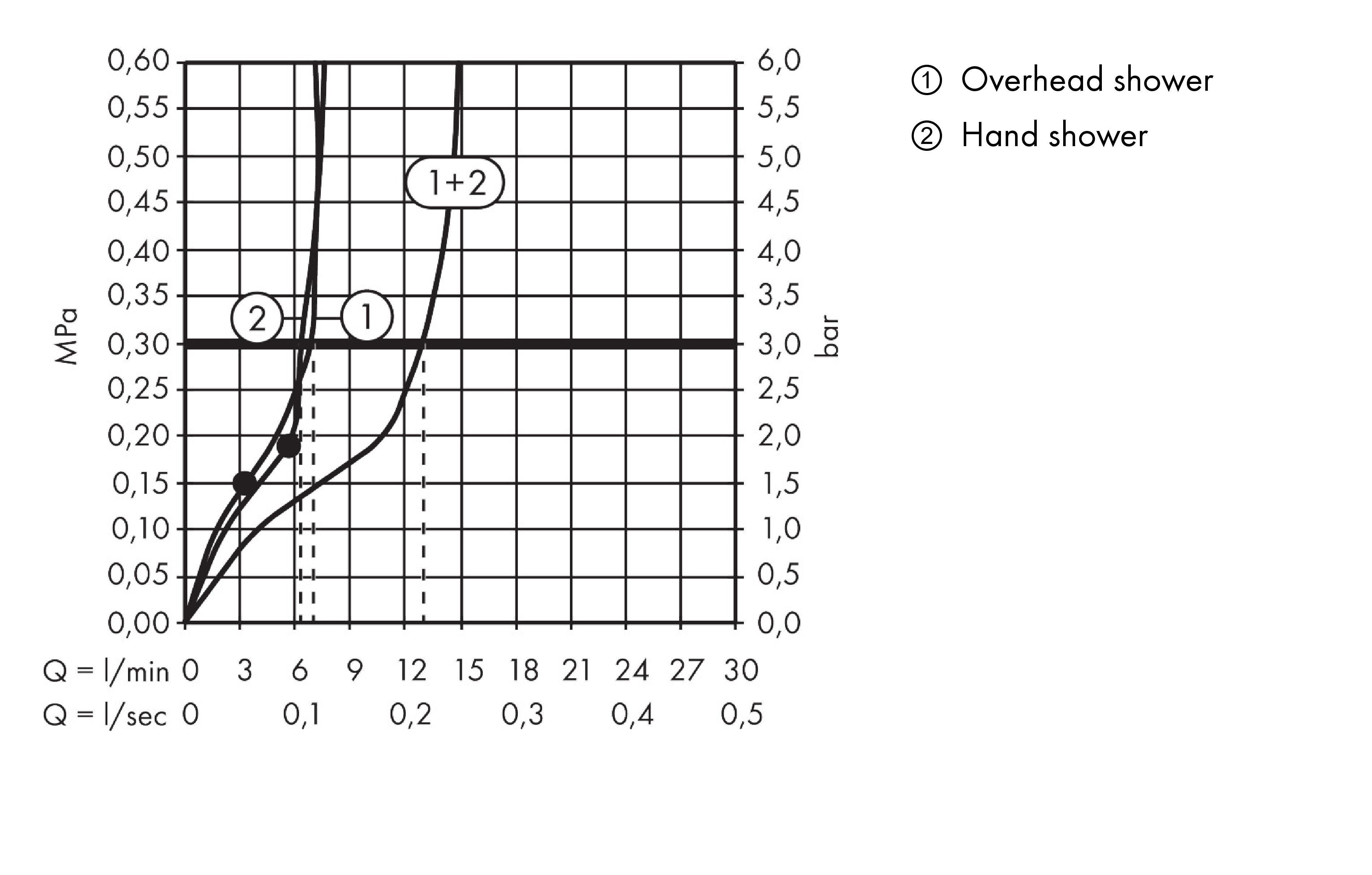

- flow regulator: 8 l/min (with possible tolerances -20%)
- flow rate PowderRain spray at 3 bar: 6.3 l/min
- spray type hand shower: RainAir, PowderRain, Massage spray
- flow rate of hand shower at 3 bar: 6.8 l/min
- maximum flow rate for Showerpipe at 3 bar: 7 l/min
- min. operating pressure: 1.9 bar
- max. operating pressure: 10 bar
- DropGuard reduces the dripping after stopping the shower to just a few seconds
- convenient spray selection via Select button on the hand shower
- overhead shower angle adjustable
- design cover conceals the nozzles, flat, minimalist design
- spray disc removable for cleaning
- design cover can be removed easily and without tools for cleaning
- design cover surface: graphite
- height-adjustable, easy slide slider
- thermostatic mixer ShowerSelect Comfort E
- material thermostatic mixer cover, handle and Select buttons: metal
- SafetyStop at 40°C
- adjustable hot water limitation
- comfortable turning on / off of outlets with large Select-paddle
- simultaneous use of several outlets
- exposed installation
- connection thread: G ½
- centre distance: 150 ± 12 mm
- intrinsically safe against backflow
- Designflex textile shower hose, water-resistant and water-repellant material, unique design with multi-coloured braided yarns
- 2 outlets
- WRAS 250304020
Consists of
Downloads
Planning data
BIM data
Technical drawings
Innovative technologies
Always constant water temperature
Want to save water? With pleasure!
Great showering pleasure
Intuitive jet adjustment
Less limescale, more joy
Safety lock at over 40 °C
Angle-adjustable overhead shower
Thermostat
Always constant water temperature
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
EcoSmart
Want to save water? With pleasure!
Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.
XXL Performance
Great showering pleasure
XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Adjustable Shower Head
Angle-adjustable overhead shower
The angle of the overhead shower can be tilted so that the shower rain is adjusted to suit the specific shower area or a person’s height. The water sprays can then work their feel-good magic and envelop the whole body.
