hansgrohe Raindance Alive S Puro
Showerpipe 300 1jet EcoSmart with Ecostat Element

Showerpipe 300 1jet EcoSmart with Ecostat Element
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
1 / 11
 View in AR
 360° View
Change variant
hansgrohe Raindance Alive S Puro
Select variant
Showerpipe 300 1jet EcoSmart with Ecostat Element
Showerpipe 300 1jet EcoSmart+ with Ecostat Element
Showerpipe 300 1jet with Ecostat Element
Finish Chrome

Product code 24593000

Article features

  • consists of: overhead shower, hand shower, thermostatic shower mixer, slider, shower hose, shower rail
  • overhead shower Raindance Alive S 300 1 Jet
  • shower head size overhead shower: 300 mm
  • spray type overhead shower: Rain, or PowderRain
  • Spray Type Switch: allows the spray type to be changed even after installation, Rain (preset), change to PowderRain can be selected upon installation or changed easily at any later stage
  • flow regulator: 8 l/min (with possible tolerances -20%)
  • outlet from: 6.6 l/min
  • flow rate Rain spray at 3 bar: 6.7 l/min
  • flow rate PowderRain spray at 3 bar: 6.9 l/min
  • spray type hand shower: RainAir, PowderRain, Massage spray
  • flow rate of hand shower at 3 bar: 7.5 l/min
  • maximum flow rate for Showerpipe at 3 bar: 8 l/min
  • min. operating pressure: 1.5 bar
  • max. operating pressure: 10 bar
  • DropGuard reduces the dripping after stopping the shower to just a few seconds
  • convenient spray selection via Select button on the hand shower
  • overhead shower angle adjustable
  • design cover conceals the nozzles, flat, minimalist design
  • spray disc removable for cleaning
  • design cover can be removed easily and without tools for cleaning
  • design cover surface: graphite
  • height-adjustable slider
  • thermostatic mixer Ecostat Element
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • temperature and water flow control
  • with extra large handles
  • exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • shower rail diameter: 25 mm
  • 2 outlets
  • WRAS 250302017

Consists of

Overhead shower 300 1jet EcoSmart
hansgrohe Raindance Alive S

Overhead shower 300 1jet EcoSmart
Hand shower 125 3jet EcoSmart
hansgrohe Raindance Alive Select S

Hand shower 125 3jet EcoSmart
Shower hose 160 cm
hansgrohe Isiflex

Shower hose 160 cm

Downloads

Certificates

Environmental Product Declaration

 An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.

WRAS (Water Regulations Advisory Scheme)

 The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Installation information

Scale drawing

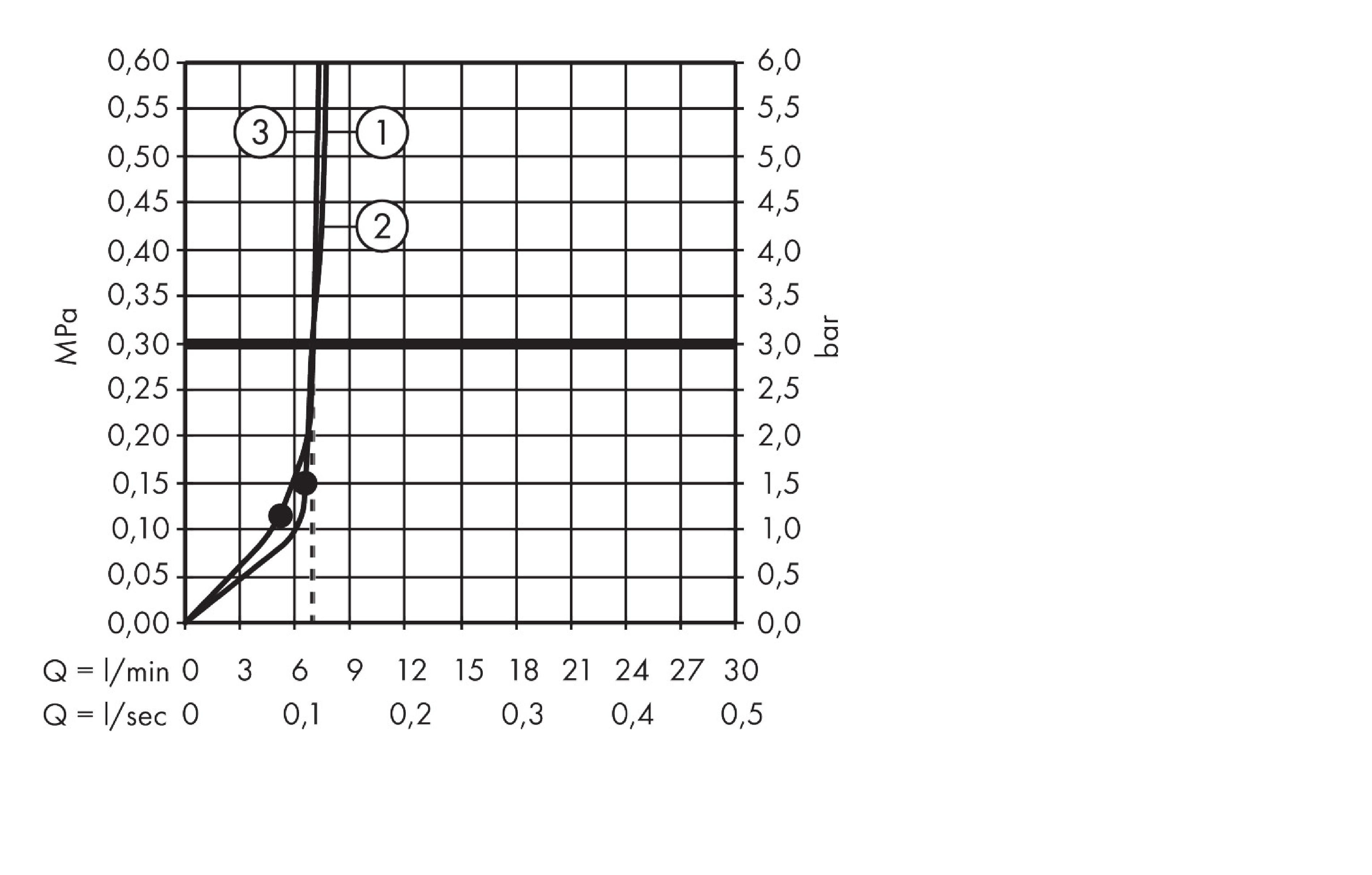

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Always constant water temperature

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
For mindful use of water

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Safety lock at over 40 °C

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Angle-adjustable overhead shower

The angle of the overhead shower can be tilted so that the shower rain is adjusted to suit the specific shower area or a person’s height. The water sprays can then work their feel-good magic and envelop the whole body.
Angle-adjustable overhead shower

EcoSmart

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Water flow control

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Adjustable Shower Head

Angle-adjustable overhead shower

The angle of the overhead shower can be tilted so that the shower rain is adjusted to suit the specific shower area or a person’s height. The water sprays can then work their feel-good magic and envelop the whole body.

Spray Types

Gentle, air-enriched droplets deliver a soft and soothing shower sensation. The generous rain feels pleasant across the skin while remaining efficient, rinsing shampoo thoroughly for a refreshing and indulgent experience.
Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.
Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.

RainAir

Gentle, air-enriched droplets deliver a soft and soothing shower sensation. The generous rain feels pleasant across the skin while remaining efficient, rinsing shampoo thoroughly for a refreshing and indulgent experience.

PowderRain

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.

PowderRain

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Massage

An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.

Awards

iF gold award 2025

iF gold award 2025

 Every year, a highly distinguished jury of experts presents this award to the best product designs from all over the world. Awarded by: International Forum Design.
Red Dot product design award 2025

Red Dot product design award 2025

 One of the most prestigious awards in the world. Awarded for top quality, innovative form and function since 1955 (North Rhine-Westphalia Design Centre).

Trust in highest quality

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
