hansgrohe Raindance S
Showerpipe 240 1jet PowderRain EcoSmart+ with thermostat

Showerpipe 240 1jet PowderRain EcoSmart+ with thermostat
 View in AR
 360° View
Change variant
hansgrohe Raindance S
Select variant
Showerpipe 240 1jet PowderRain EcoSmart+ with thermostat
Showerpipe 240 1jet PowderRain EcoSmart with thermostat
Finish Chrome

Product code 28825000

Article features

  • consists of: overhead shower, hand shower, thermostatic shower mixer, shower hose, slider, shower rail
  • overhead shower Raindance S 240 PowderRain
  • shower head size overhead shower: 240 mm
  • spray type overhead shower: PowderRain
  • outlet from: 5.7 l/min
  • flow rate PowderRain spray at 3 bar: 5.7 l/min
  • spray type hand shower: PowderRain, Rain, Whirl
  • flow rate of hand shower at 3 bar: 5.3 l/min
  • maximum flow rate for Showerpipe at 3 bar: 5.7 l/min
  • min. operating pressure: 1.5 bar
  • max. operating pressure: 10 bar
  • FlexPower: nozzles automatically adjust to water pressure by opening and closing
  • QuickClean+: reduce limescale deposits thanks to the elasticity of the nozzles
  • height-adjustable slider
  • shower arm length overhead shower: 460 mm
  • swivelling shower arm
  • thermostatic mixer Ecostat Comfort
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • shower rail diameter: 25 mm
  • 2 outlets
  • WRAS 250302017

Consists of

Hand shower 120 3jet PowderRain EcoSmart+
hansgrohe Raindance Select S

Hand shower 120 3jet PowderRain EcoSmart+
Shower hose 160 cm
hansgrohe Isiflex

Shower hose 160 cm

Downloads

Certificates

WRAS (Water Regulations Advisory Scheme)

 The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Installation information

Scale drawing

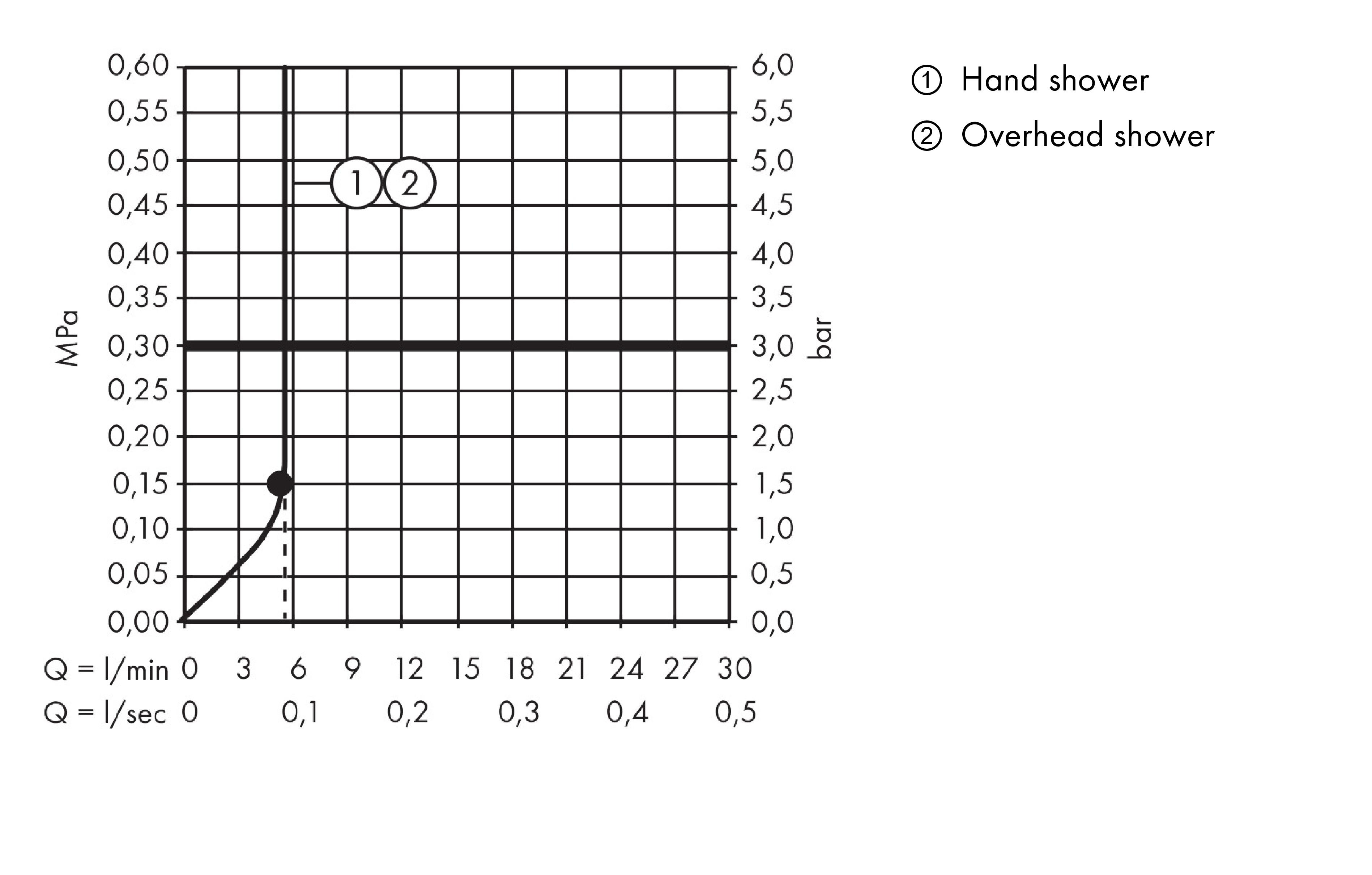

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Optional accessories

Wall bar spacer for Croma 100 Showerpipe
hansgrohe

Wall bar spacer for Croma 100 Showerpipe

Innovative technologies

Save water and protect the climate

With a consumption of up to 60% less water than our conventional models and a maximum flow rate of 6 l/min thanks to a flow limiter, this shower is particularly efficient and economical, reducing water and energy costs every day.

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

Effectively reduces annoying limescale buildup

Elastic spray nozzles that constantly expand and return to their original position, reducing limescale buildup. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.
Effectively reduces annoying limescale buildup

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Always constant water temperature

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Safety lock at over 40 °C

EcoSmart+

Save water and protect the climate

With a consumption of up to 60% less water than our conventional models and a maximum flow rate of 6 l/min thanks to a flow limiter, this shower is particularly efficient and economical, reducing water and energy costs every day.

FlexPower

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

QuickClean+

Effectively reduces annoying limescale buildup

Elastic spray nozzles that constantly expand and return to their original position, reducing limescale buildup. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Spray Types

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Rotating water sprays to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their gentle massaging action.

PowderRain

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Whirl

Rotating water sprays to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their gentle massaging action.

Trust in highest quality

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
