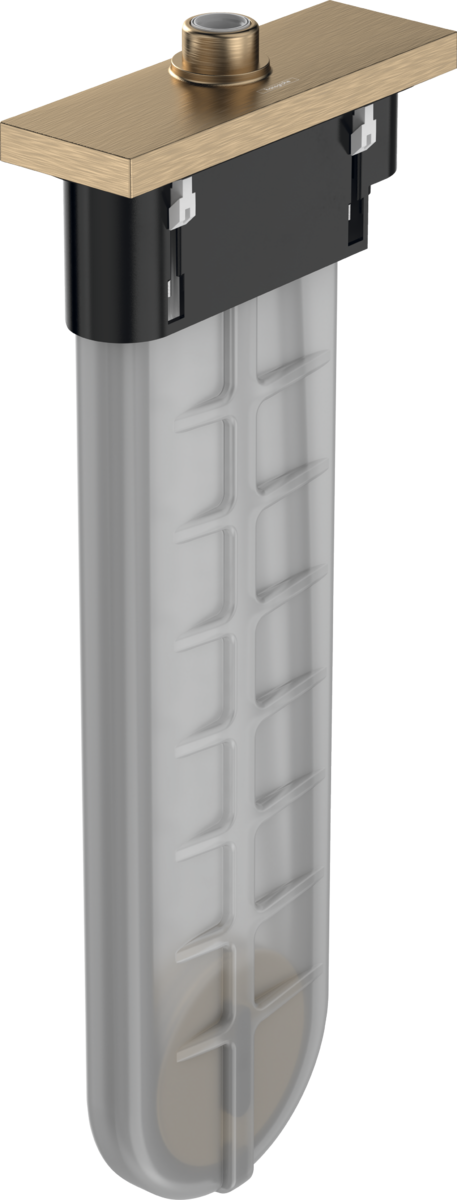

hansgrohe sBox
Finish set square

Finish set square
product.closeup.image.alt
1 / 2
 View in AR
 360° View
Change variant
hansgrohe sBox
Select variant
Finish set square
Finish set oval
Finish Brushed Bronze

Product code 28010140

Article features

  • consists of: hose box, shower hose, escutcheon
  • suitable for shelf trim or tile mounted installation
  • 1 outlet
  • sBox for quiet, smooth and protected hose guidance
  • operating pressure: min. 1 bar/max. 10 bar
  • no additional maintenance opening required
  • bath shelf trim width at least 80 mm
  • clamping range: 0 - 30 mm
  • maximum pull-out length of hand shower: 1.45 m
  • removable for service at any time
  • protected against backflow (according to DIN EN 1717)
  • maximum flow rate at 3 bar: 9.5 l/min
  • REG4 2501754

Downloads

Installation information

Scale drawing

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Further Parts are required
Please note that other products are required to install this product. Click here for more information.

Required parts

Rim and tile mounted bath basic set
hansgrohe sBox

Rim and tile mounted bath basic set

Optional accessories

Mounting angle set for installation plate for tile mounted installation
hansgrohe sBox

Mounting angle set for installation plate for tile mounted installation
Installation plate for tile mounted installation
hansgrohe sBox

Installation plate for tile mounted installation

Awards

iF product design award 2019

iF product design award 2019

 Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.

Trust in highest quality

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
