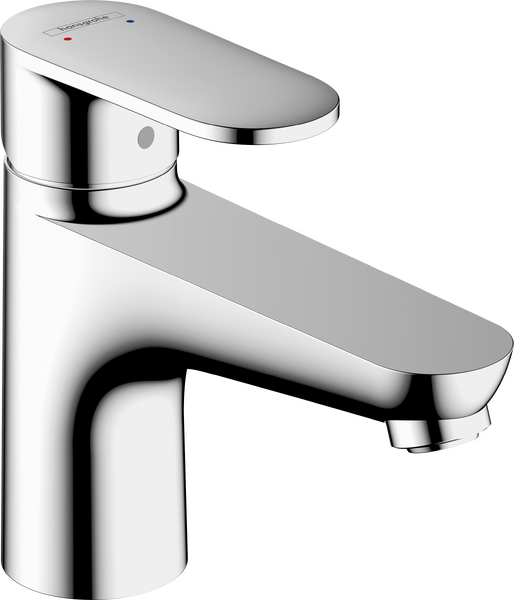

hansgrohe Vernis BlendSingle lever bath mixer for exposed installation
Product code 71440000
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- designed to run 2 outlets
- spout 171 mm long
- Centre distance: 150 mm ± 12 mm
- Spray type mixer: normal spray
- Maximum flow rate (at 3 bar): 22.5 l/min
- Flow rate for bath spout (at 3 bar): 22.5 l/min
- Flow rate of hand shower (at 3 bar): 15.7 l/min
- ceramic cartridge
- Maximum temperature can be adjusted on installation
- diverter with automatic resetting
- with silencer
- Noise class: II
- Connection type: S connections
- wall-mounted
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
Downloads
Planning data
BIM data
Technical drawings
Spare parts for build year 01/21
| Item no. |
|---|
| 1 | handle93715000 |
| 2 | screw cover96338000 |
| 3 | flange93716000 |
| 4 | nut93717000 |
| 5 | cartridge, assy92730000 |
| 6 | locking screw for handle95140000 |
| 7 | diverter knob93766000 |
| 8 | selector97978000 |
| 9 | aerator M24x1 (38 l/min)92513000 |
| 10 | connecting thread G½93767000 |
| 11 | O-ring 16x298133000 |
| 12 | filter packing96922000 |
| 13 | escutcheon Ø 70 mm93718000 |
| 14 | set of S-unions (±12 mm)94140000 |
| 15 | noise reduction96429000 |
Innovative technologies
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
Five-year manufacturer’s guarantee
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
