hansgrohe Waterforms

product.closeup.image.alt
1 / 2
 View in AR
 360° View

Product code 26985000

Article features

  • consists of: overhead shower, hand shower, thermostatic shower mixer, shower hose, slider
  • overhead shower Croma 220
  • shower head size overhead shower: 220 mm
  • spray type overhead shower: RainAir
  • removable shower head
  • outlet from: 7 l/min
  • flow rate RainAir 8.7 l/min at 3 bar
  • spray type hand shower: Rain, IntenseRain, TurboRain
  • flow rate of hand shower at 3 bar: 8 l/min
  • maximum flow rate for Showerpipe at 3 bar: 8.7 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • overhead shower angle adjustable
  • height-adjustable slider
  • shower arm length overhead shower: 350 mm
  • thermostatic mixer Fox
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • variable wall support
  • intrinsically safe against backflow
  • shower rail diameter: 22 mm
  • 2 outlets
  • WRAS 240188001

Consists of

Overhead shower 220 1jet EcoSmart
hansgrohe Croma

Overhead shower 220 1jet EcoSmart
Shower hose 160 cm
hansgrohe Isiflex

Shower hose 160 cm

Downloads

Certificates

WRAS (Water Regulations Advisory Scheme)

 The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Installation information

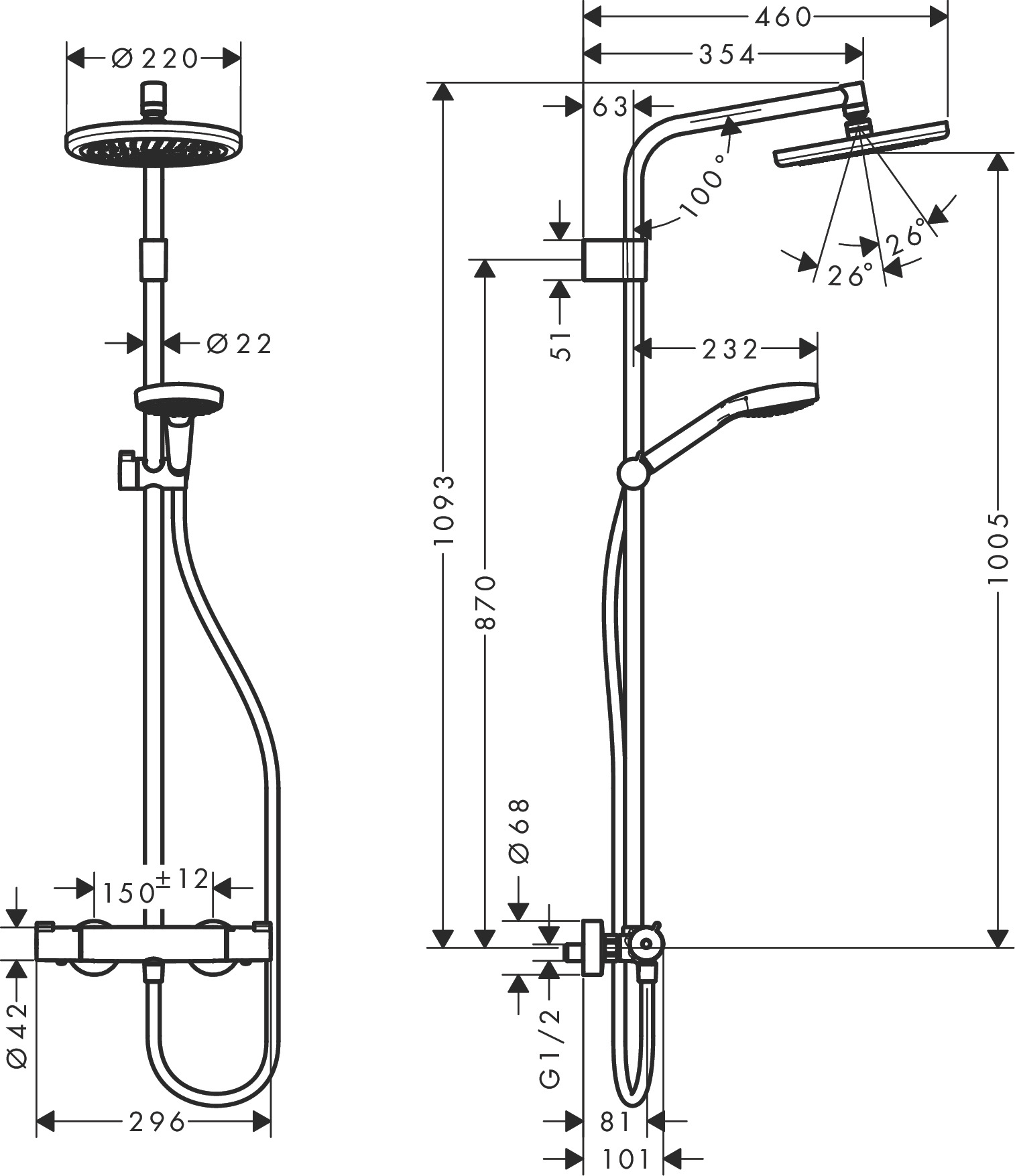

Scale drawing

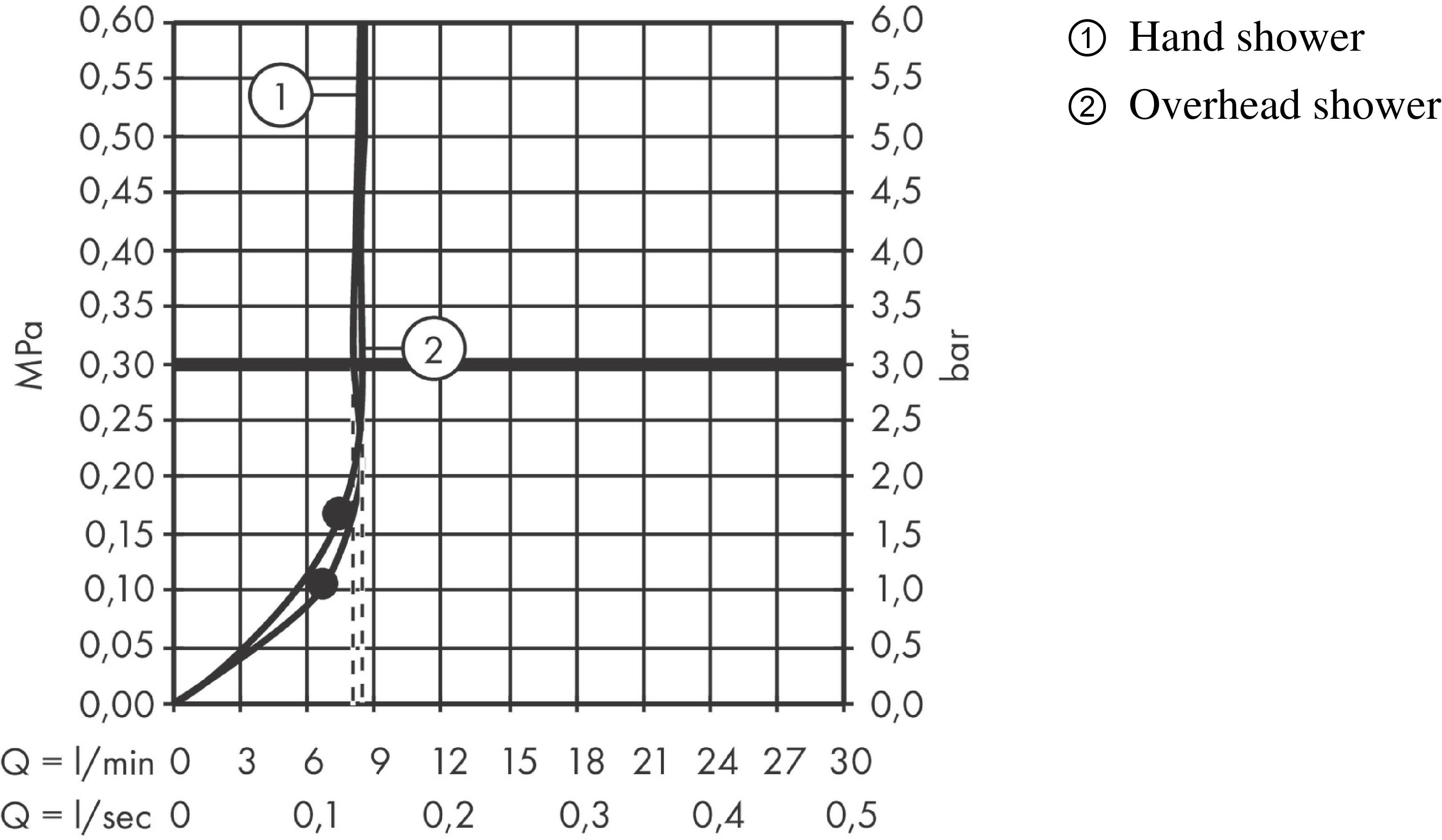

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

More pleasure, more efficiency

Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Flexible mounting with variable wall support.

The flexible wall support allows the use of existing drill holes and individual installation of shower bars. Ideal for easy shower and bathtub renovations.
Flexible mounting with variable wall support.

EcoSmart

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

AirPower

More pleasure, more efficiency

Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

VarioFix

Flexible mounting with variable wall support.

The flexible wall support allows the use of existing drill holes and individual installation of shower bars. Ideal for easy shower and bathtub renovations.

Spray Types

Gentle, air-enriched droplets deliver a soft and soothing shower sensation. The generous rain feels pleasant across the skin while remaining efficient, rinsing shampoo thoroughly for a refreshing and indulgent experience.
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.
An invigorating multi-purpose spray that lives up to its name. With Turbo, the rain sprays ensure powerful, soothing showering. Perfect for those who want a quick and straightforward way to refresh themselves.

RainAir

Gentle, air-enriched droplets deliver a soft and soothing shower sensation. The generous rain feels pleasant across the skin while remaining efficient, rinsing shampoo thoroughly for a refreshing and indulgent experience.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

IntenseRain

Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.

TurboRain

An invigorating multi-purpose spray that lives up to its name. With Turbo, the rain sprays ensure powerful, soothing showering. Perfect for those who want a quick and straightforward way to refresh themselves.

Trust in highest quality

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
