AXOR ShowerSelect

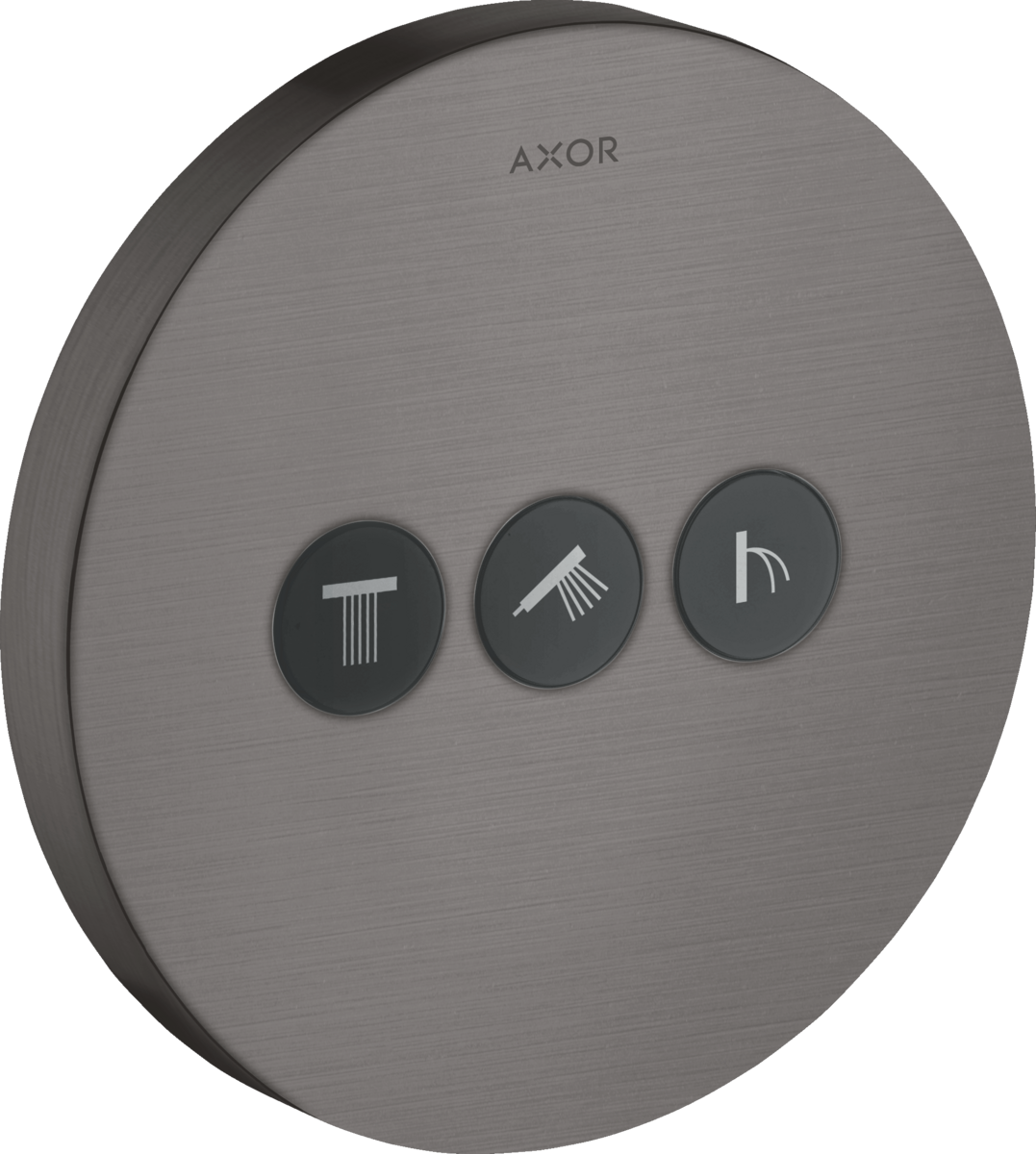

Valve round for concealed installation for 3 outlets

Valve round for concealed installation for 3 outlets
 View in AR
 360° View

Product code 36727340

Article features

  • 3 outlets
  • simultaneous use of several outlets
  • Select push-button on/off control for 3 outlets
  • Start/stop valve to operate the outlets
  • connection type: basic set
  • flow rate upper outlet 26 l/min at 3 bar
  • flow rate left and right: 29 l/min
  • maximum flow rate at 3 bar: 30 l/min
  • maximum temperature cannot be adjusted on installation
  • valve is delivered with buttons Rain large, Waterfall, hand shower
  • noise class: II
  • WRAS 2012028
  • WRAS 260102301

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Certificates

WRAS (Water Regulations Advisory Scheme)

 The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Installation information

Scale drawing

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

Basic set ½"
AXOR iBox universal 2

Basic set ½"
Adapter plate for iBox universal 2
hansgrohe

Adapter plate for iBox universal 2
Basic set ½" and ¾"
AXOR iBox universal

Basic set ½" and ¾"

Optional accessories

Fastening rail set for iBox universal

Fastening rail set for iBox universal
Extension 25 mm for basic set iBox universal

Extension 25 mm for basic set iBox universal

Innovative technologies

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Trust in highest quality

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
