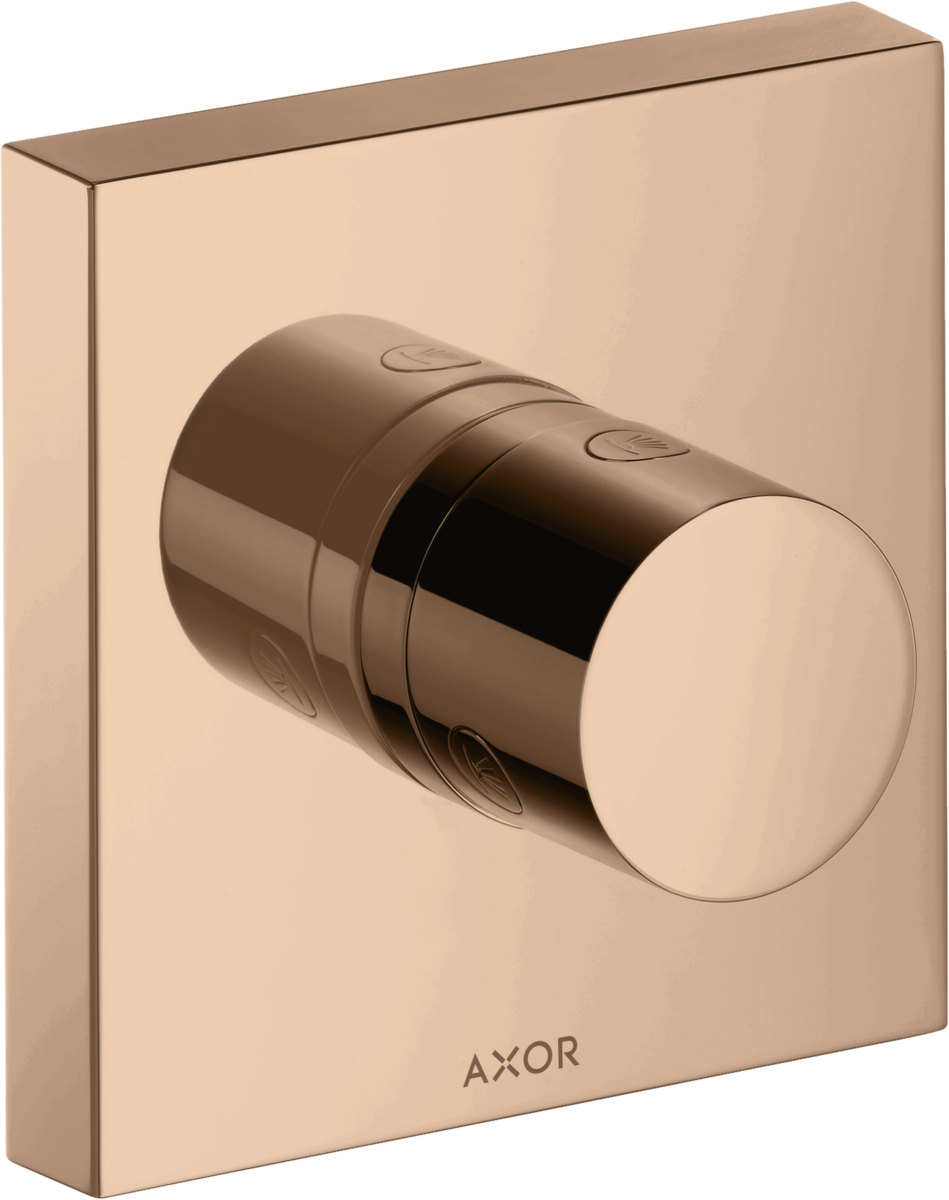

Shut-off / diverter valve Trio / Quattro shut-off / diverter valve 120 mm x 120 mm square

Shut-off / diverter valve Trio / Quattro shut-off / diverter valve 120 mm x 120 mm square
 View in AR
 360° View
Finish Polished Red Gold

Product code 10932300

Article features

  • 3 functions: in a freely-arranged installation (distance greater than 10 mm), the basic set no.16930180 must be used
  • 2 functions: in a joined installation (10 mm distance) with no.36702000, the basic set no.36770180 must be used
  • 2 functions: in a freely-arranged installation (distance greater than 10 mm), the basic set no.16982180 must be used
  • simultaneous utilization of 2 outlets
  • WRAS 240102009

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Certificates

WRAS (Water Regulations Advisory Scheme)

 The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

Basic set for Trio 2-way diverter valve with integrated shut-off ¾"

Basic set for Trio 2-way diverter valve with integrated shut-off ¾"
Basic set for Quattro 3-way diverter valve ¾"

Basic set for Quattro 3-way diverter valve ¾"
Basic set Trio shut-off/ diverter valve 12 mm x 12 mm
AXOR Citterio E

Basic set Trio shut-off/ diverter valve 12 mm x 12 mm
