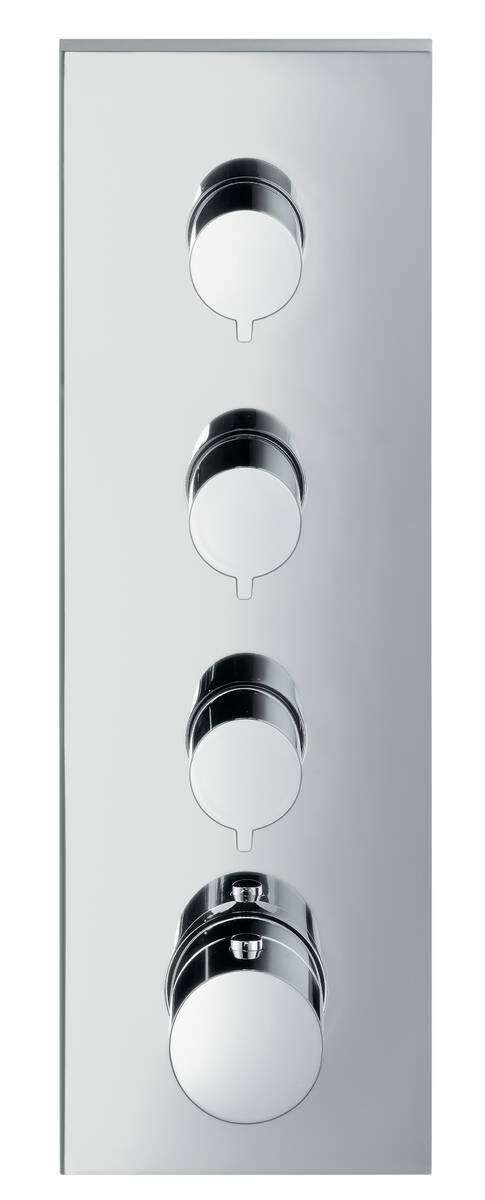

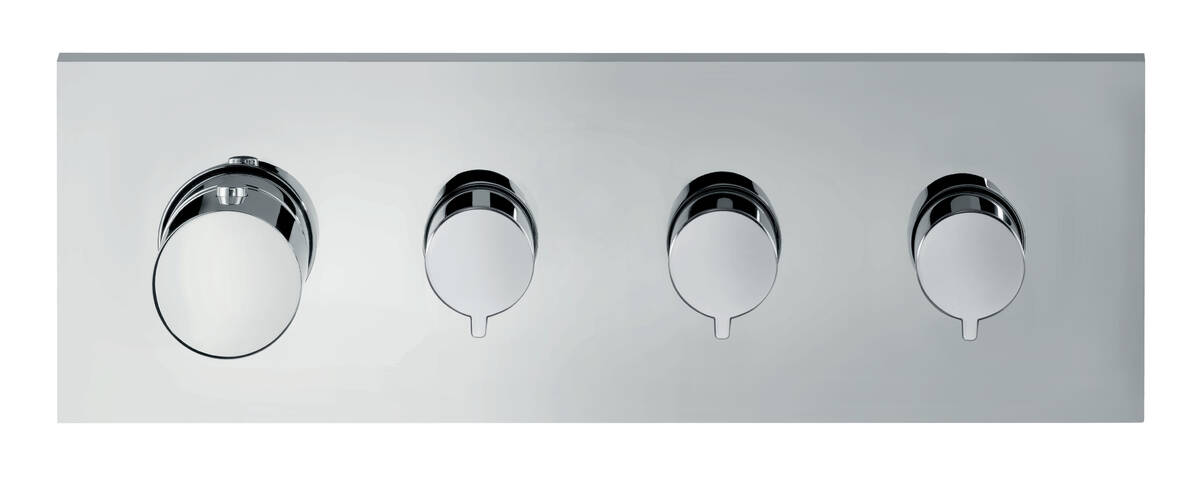

AXOR ShowerSolutionsThermostatic module 360/120 square for concealed installation for 3 outlets
Product code 10751000
Article features
- designed to run 3 outlets
- multiple outlets can be run simultaneously
- wall-mounted
- thermostat cartridge
- safety stop at 40°C
- Maximum temperature can be adjusted on installation
- Non-return valve
- Connection type: basic set
- Min. operating pressure: 1.5 bar
- Max. operating pressure: 10 bar
- WRAS 1806015
Downloads
Technical drawings
Spare parts for build year 03/14
| Item no. |
|---|
| a | concealed item10750180 |
| 1 | escutcheon95317000 |
| 2 | seal95885000 |
| 3 | handle92338000 |
| 4 | handle fixing set94184000 |
| 5 | adapter for handle95153000 |
| 6 | O-ring 26x298147000 |
| 7 | fixing set96393000 |
| 8 | handle for thermostat95316000 |
| 9 | adapter for handle98701000 |
| 10 | safety set for temperature control97334000 |
| 11 | sleeve95331000 |
| 12 | O-ring 28x2,598209000 |
| 13 | thermostat cartridge96633000 |
| 14 | O-ring 48x498414000 |
| 15 | set of non return valves DW 1597350000 |
| 16 | filter97973000 |
| 17 | extension 25 mm10790000 |
| 18 | handle95423000 |
| 19 | extension 25 mm96370000 |
Impressions
