hansgrohe EcosSingle lever manual bath mixer for exposed installation
Product code 14084000
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- designed to run 2 outlets
- spout 180 mm long
- Centre distance: 150 mm ± 12 mm
- Spray type mixer: normal spray

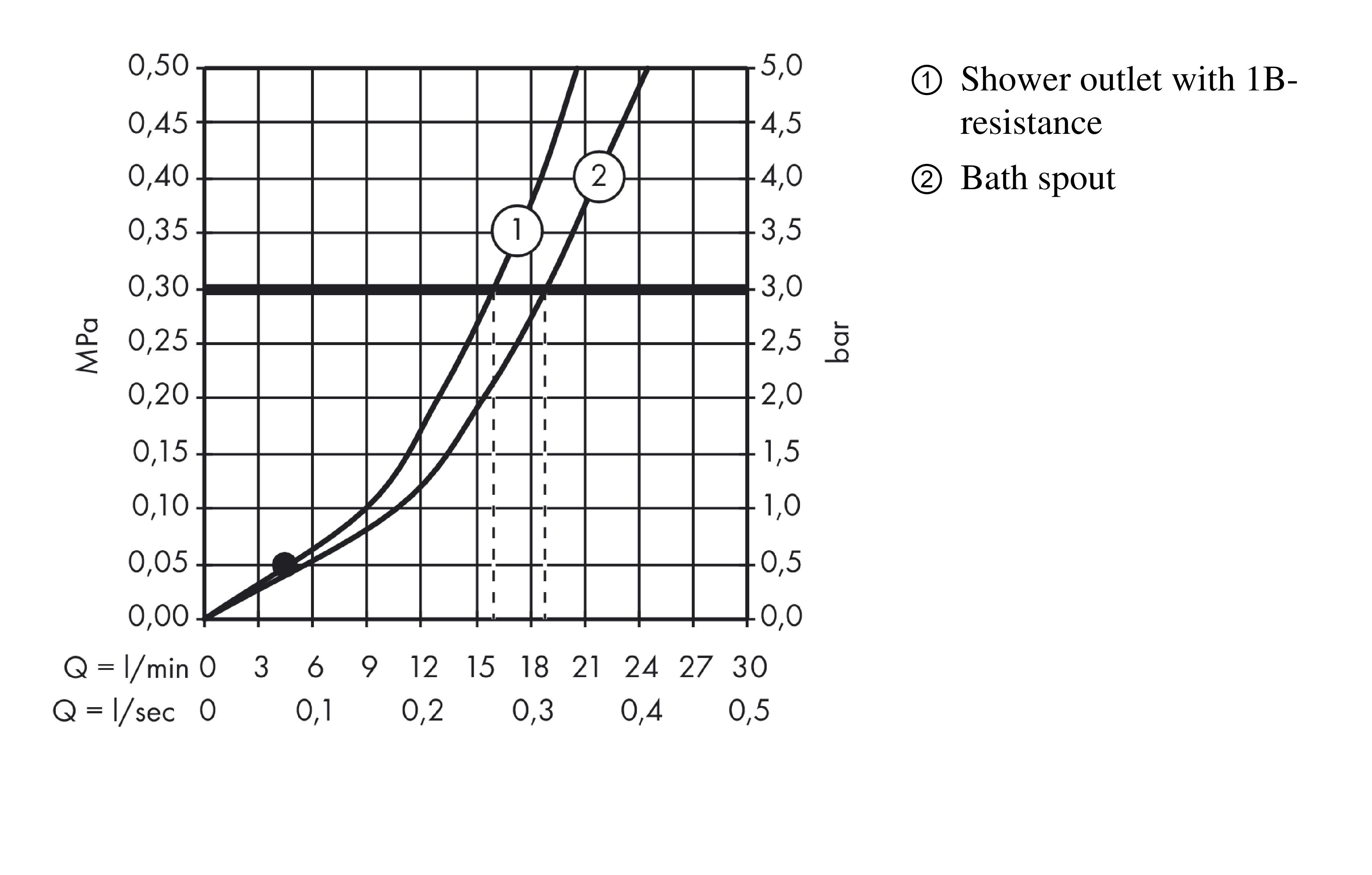

- Maximum flow rate (at 3 bar): 19 l/min
- ceramic cartridge
- Maximum temperature can be adjusted on installation
- protected against backflow, according to DIN EN 1717
- with silencer
- Connection type: S connections
- Min. operating pressure: 1 bar
- Max. operating pressure: 6 bar
Downloads
Download all files
Download all files
Spare parts for build year 04/19
| Item no. |
|---|
| a | O-ring 33x298154000 |
| b | diverter fixing device97211000 |
| 1 | handle95518000 |
| 2 | screw cover96338000 |
| 3 | flange97406000 |
| 4 | nut97977000 |
| 5 | O-Ring 32x298193000 |
| 6 | O-ring 33x1,598164000 |
| 7 | cartridge, assy92730000 |
| 8 | locking screw for handle95140000 |
| 9 | seal95008000 |
| 10 | diverter knob97981000 |
| 11 | sleeve97979000 |
| 12 | selector97978000 |
| 13 | aerator M24x1 (25 l/min)92511000 |
| 14 | set of nuts96157000 |
| 15 | connecting thread97220000 |
| 16 | O-ring 15x298163000 |
| 17 | filter packing96922000 |
| 18 | escutcheon Ø 70 mm94135000 |
| 19 | set of S-unions (±12 mm)94140000 |
| 20 | noise reduction96429000 |
Innovative technologies
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Five-year manufacturer’s guarantee
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
