AXOR Showers/FrontShowerpipe with thermostatic mixer and 2jet overhead shower 240

Product code 26020000
Please try again.
Please try again.
Article features
- Consists of: overhead shower, hand shower, Thermostatic shower mixer, shower hose, slider, shower bar
- shower head size overhead shower: 279 mm
- spray type overhead shower: Rain, RainAir
- Select button to comfortably switch between spray modes
- individually height adjustable shower head with easy-to-use twist lock. Adjustment 300 mm.
- flow rate RainAir 14 l/min at 3 bar
- flow rate Rain 15 l/min at 3 bar
- spray type hand shower: Rain
- Flow rate of hand shower (at 3 bar): 8 l/min
- Maximum flow rate for Showerpipe at 3 bar: 21 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- overhead shower angle adjustable
- Shower bar diameter: 25 mm
- height-adjustable hand shower holder
- shower arm length overhead shower: 470 mm
- Swivel shower arm
- safety stop at 40°C
- adjustable hot water limitation
- outlets controlled via volume control/diverter and may not be used simultaneously
- exposed design allows easy installation, all working parts are outside of the wall
- Connection dimension 1/2"
- Connection thread ½"
- Centre distance 150 mm ± 12 mm
- Intrinsically safe against backflow
- designed to run 2 outlets
- WRAS 2207059
Consists of
Downloads
Technical drawings
Installation information
Scale drawing
Installation example
Flow diagram
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 11/13
To the online spare parts shopItem no. | DescriptionProduct codeDescription and article no. |
---|
a | Grease90920000 |
1 | shower arm92242000 |
2 | head shower26022000 |
3 | O-Ring 21x398182000 |
4 | O-ring 27x392503000 |
5 | seal98058000 |
6 | hollow set screw M4x697767000 |
7 | spray body92192000 |
8 | selector assy92387000 |
9 | filter97735000 |
10 | mounting set96179000 |
11 | tile-matching-disk 7 mm95239000 |
12 | wall flange95688000 |
13 | O-Ring 50x298187000 |
14 | escutcheon Ø 60 mm92229000 |
15 | hollow set screw M6x897810000 |
16 | O-ring 20x2,592602000 |
17 | pipe92243000 |
18 | support, assy95480000 |
19 | O-ring 17x2,598387000 |
20 | handshower26025000 |
21 | flow limiter (9 l/min)95659000 |
22 | filter packing94246000 |
23 | shower hose Isiflex'B 1,60 m28276000 |
24 | non return valve97980000 |
25 | handle for thermostat92231000 |
26 | handle fixing set98290000 |
27 | safety set92232000 |
28 | nut98913000 |
29 | O-ring 26x1,598390000 |
30 | thermostat cartridge98282000 |
31 | cartridge for exchanged connections92373000 |
32 | handle92233000 |
33 | handle fixing set98932000 |
34 | O-ring 21x1,598219000 |
35 | shut off unit right closing98817000 |
36 | O-ring 14x298129000 |
37 | escutcheon Ø 65 mm92228000 |
38 | O-ring 45x2,598432000 |
39 | hollow set screw M4x1097667000 |
40 | non return valve (pressure-resistant up to 2 MPa)95773000 |
41 | set of S-unions95772000 |
42 | noise reduction96429000 |
43 | O-ring 29x398371000 |
Innovative technologies
Less limescale, more joy
Intuitive jet adjustment
More pleasure, more efficiency
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.
Spray Types
RainAir
Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.
Rain
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Five-year manufacturer’s guarantee
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
Similar products

AXOR Starck

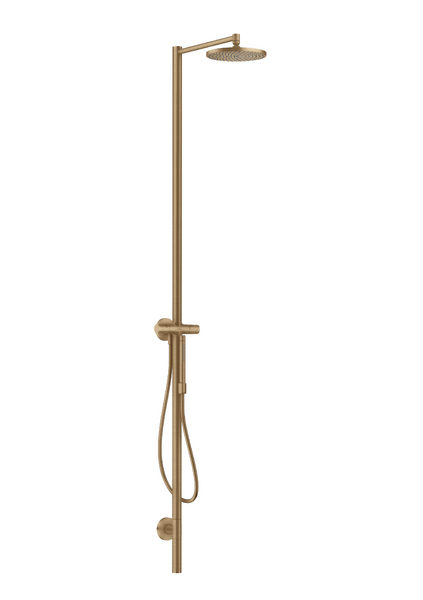

Nature shower column with hand shower
Product code 12670140

AXOR Starck

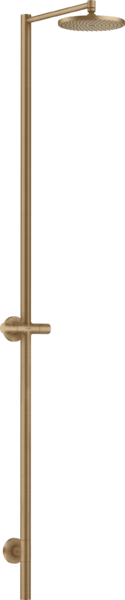

Nature shower column
Product code 12671140

AXOR Starck

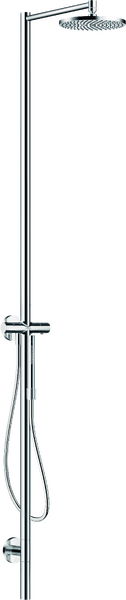

Shower column with hand shower
