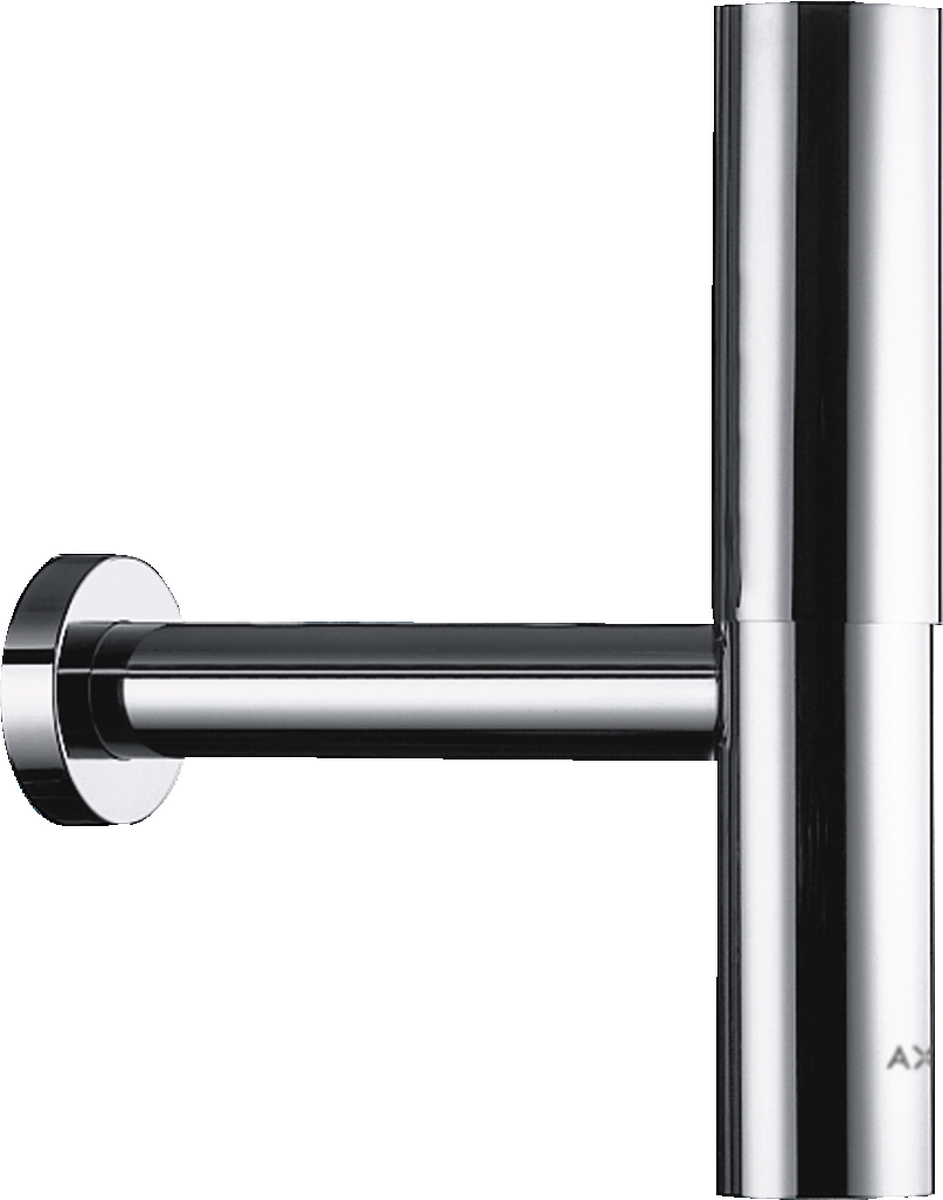

Bottle trap 1¼" Flowstar

product.image.alt
 View in AR
 360° View
chrome

Product code 51303000

Add to notepad Product noted
Product saved for 30 daysSee notepad
The product could not be saved.
Please try again.
Compare products Product added
Product saved for 30 daysTo the product comparison
The article could not be saved.
Please try again.

Article features

  • adjustment distance 65 - 165 mm
  • Distance to wall 330 mm
  • water seal: 70 mm
  • connection dimension entry: 1¼"

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Further Parts are required
Please note that other products are required to install this product. Click here for more information.

Required parts

McAlpine MS4-ISO 90° Multifit Bend 1¼" x 32 mm to connect UK waste pipe to European dimensions
hansgrohe

McAlpine MS4-ISO 90° Multifit Bend 1¼" x 32 mm to connect UK waste pipe to European dimensions
McAlpine S28L-ISO Multifit Straight Connector 1¼" x 32 mm to connect UK waste pipe to European dimensions
hansgrohe

McAlpine S28L-ISO Multifit Straight Connector 1¼" x 32 mm to connect UK waste pipe to European dimensions

Spare parts for build year 10/17

To the online spare parts shop
To the online spare parts shop
product.spareparts.image.alt
Item no. DescriptionProduct codeDescription and article no.
1 valve cover13957000
2 coating pipe96553000
3 seal 1¼"53971000
4 sleeve pipe 1¼" 150 mm96420000
5 sleeve nut97590000
6 hand nut 1¼"53951000
7 wedge-shaped seal 1¼"53985000
8 sealed box96487000
9 wall pipe 1¼" 500 mm53493000
10 escutcheon96490000
11 sleeve96554000
12 plug97258000
13 O-ring 38x2,598198000

Five-year manufacturer’s guarantee

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
