hansgrohe Croma E
Showerpipe 280 1jet with bath thermostat

Showerpipe 280 1jet with bath thermostat
product.closeup.image.alt
1 / 2
 View in AR
 360° View
Finish Chrome

Product code 27687000

Article features

  • consists of: overhead shower, hand shower, thermostatic bath filler, shower hose, slider, shower rail
  • shower head size overhead shower: 280 x 170 mm
  • spray type overhead shower: RainAir
  • spray disc surface: chrome
  • outlet from: 9.5 l/min
  • flow rate RainAir 15 l/min at 3 bar
  • flow rate bath filler 20 l/min at 3 bar

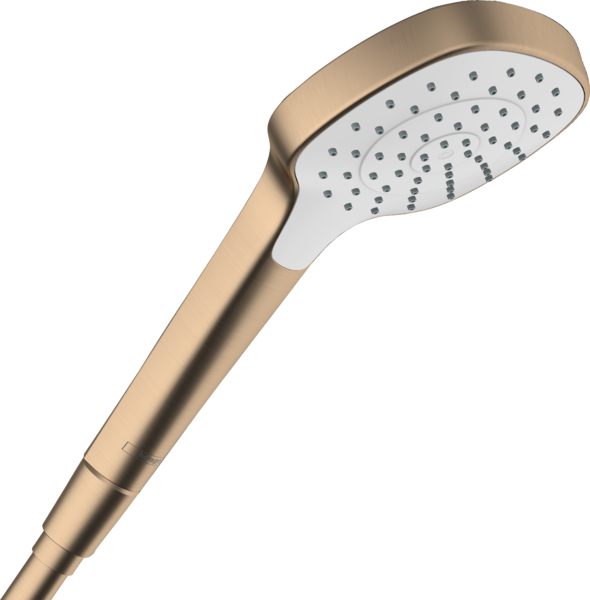

  • spray type hand shower: Massage spray, IntenseRain, SoftRain
  • flow rate of hand shower at 3 bar: 13.6 l/min
  • maximum flow rate for Showerpipe at 3 bar: 20.3 l/min
  • min. operating pressure: 1.7 bar
  • max. operating pressure: 10 bar
  • overhead shower angle adjustable
  • height-adjustable slider with locking push-button slider
  • swivelling shower arm
  • CoolContact thermostat: Prevents the housing from heating up, making showering even safer
  • thermostatic mixer Ecostat E
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • exposed installation
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • shower rail diameter: 22 mm
  • 3 outlets
  • REG4 2308774

Consists of

Overhead shower 280 1jet
hansgrohe Croma E

Overhead shower 280 1jet
Shower hose 160 cm
hansgrohe Isiflex

Shower hose 160 cm

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Certificates

TMV2 - A thermostatic mixing valve, with a maximum temperature stop

 The TMV2 Scheme is the third party valve accreditation programme administered by Buildcert, testing valves and certifying their suitability for use in the domestic market.

Environmental Product Declaration

 An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.

Installation information

Scale drawing

Installation example

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Safe and indulgent showering

This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.

More pleasure, more efficiency

Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

CoolContact

Safe and indulgent showering

This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.

AirPower

More pleasure, more efficiency

Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Spray Types
Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.
An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.
Caressing water sprays that gently swirl around the body. An act of kindness for the skin, mind and soul. A perfectly smooth way to wake up in the morning, recover after exercise or wash off the stresses of a challenging day.

RainAir

IntenseRain

Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.

Massage

An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.

SoftRain

Caressing water sprays that gently swirl around the body. An act of kindness for the skin, mind and soul. A perfectly smooth way to wake up in the morning, recover after exercise or wash off the stresses of a challenging day.

Trust in highest quality

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
