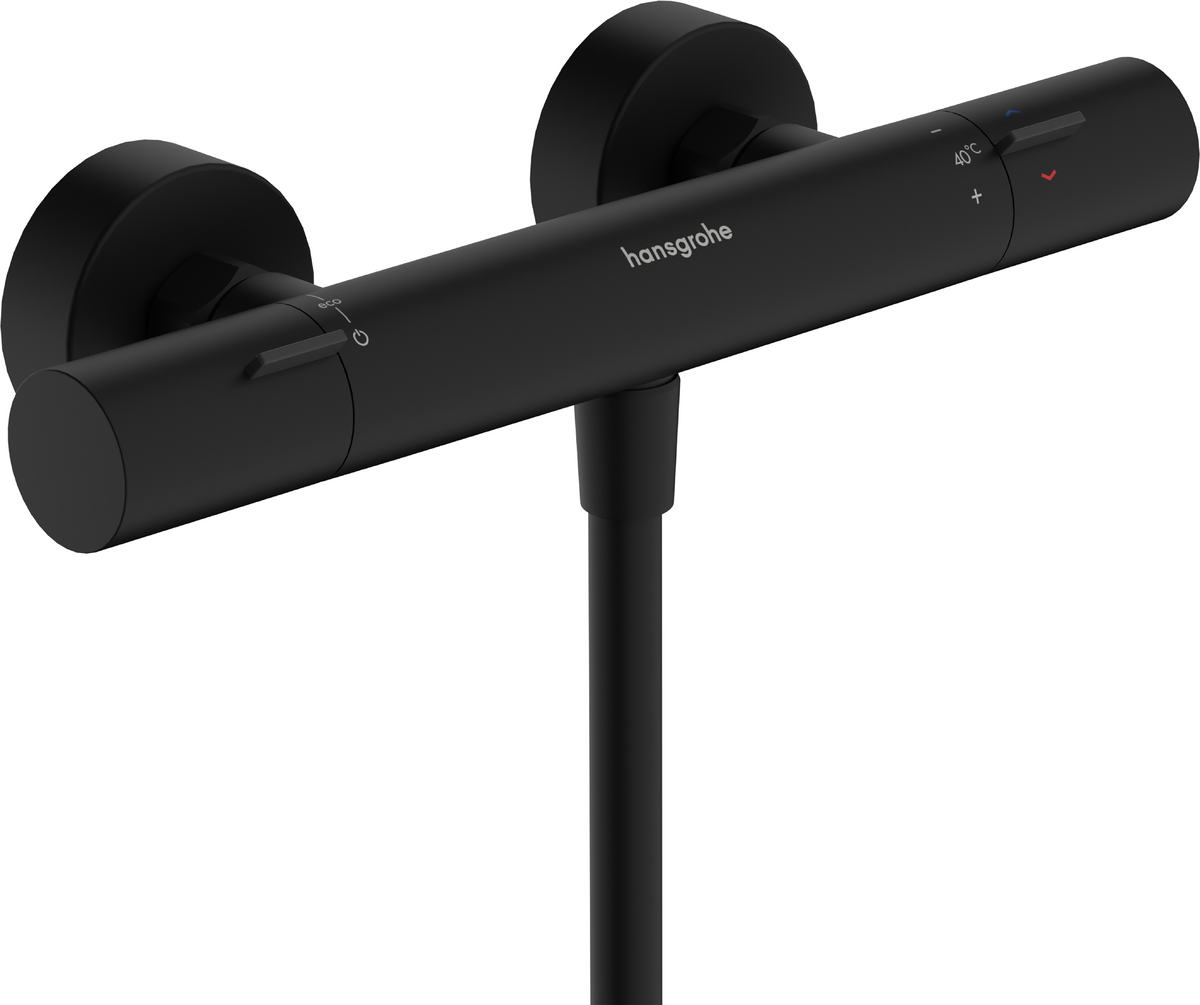

hansgrohe Ecostat FineShower thermostat for exposed installation
Product code 13324670
Please try again.
Article features
- 1 outlet
- temperature and water flow control
- EcoStop+ button limits the water consumption to 6 l/min
- thermostatic mixer cartridge
- exposed design allows easy installation, all working parts are outside of the wall
- maximum flow rate at 3 bar: 17 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- Safety stop at 40 °C
- temperature limitation adjustable
- non-return valve
- material handles: metal
- centre distance: 150 ± 12 mm
- connection type: S-connections, G ½
- dirt filter included
- noise class: I
- WRAS 240204013
Downloads
Certificates
TMV3 - A thermostatic mixing valve with enhanced thermal performance, complying with NHS Estates requirements.
The TMV3 Scheme is the third party valve accreditation programme administered by Buildcert. It is an independent test to check if the submitted valves are suitable for use in high risk commercial healthcare applications in the UK.
Innovative technologies
Always constant water temperature
Safety lock at over 40 °C
Full control over water consumption
For mindful use of water
Thermostat
Always constant water temperature
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
EcoStop+
Full control over water consumption
Consciously save valuable resources thanks to the EcoStop+ function. The water consumption of your thermostat is regulated to a maximum of 6 l/ min. If more water is needed, a higher water flow can be released by simply pressing the EcoStop+ button.
Water flow control
For mindful use of water
The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
