hansgrohe Vernis Shape

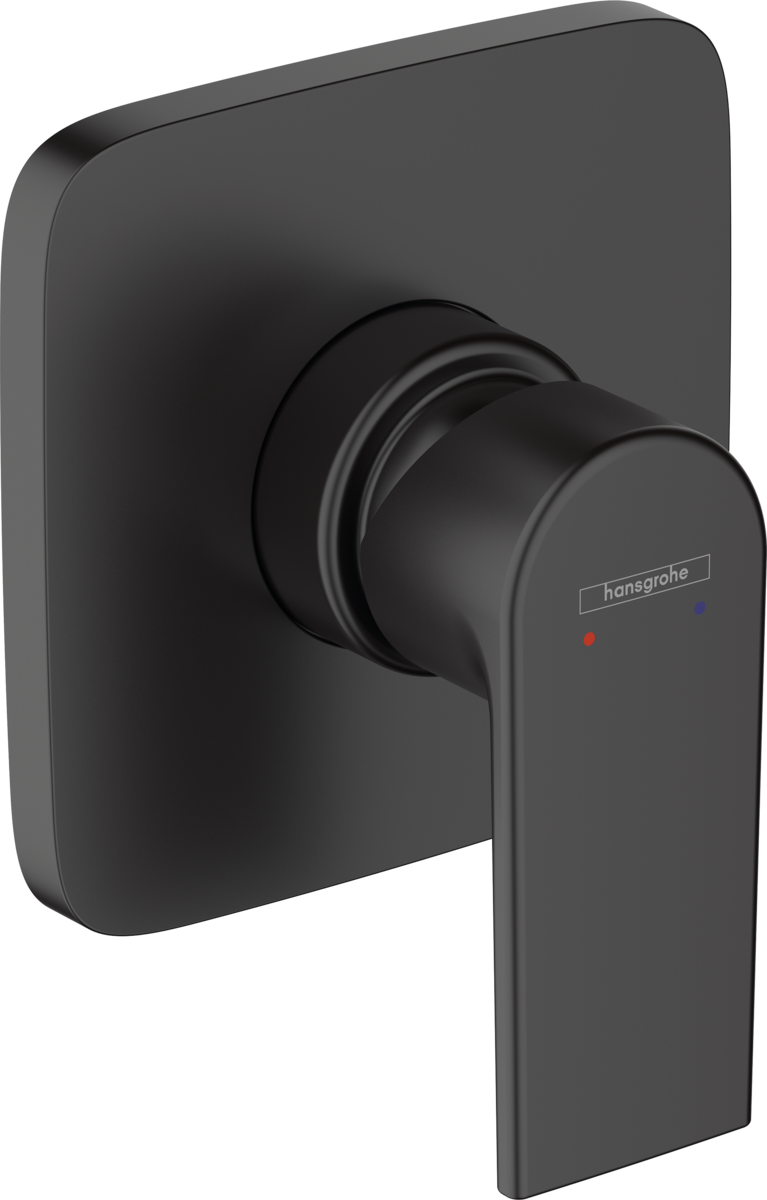

Single lever shower mixer for concealed installation

Single lever shower mixer for concealed installation
 View in AR
 360° View
Finish Matt Black

Product code 71658670

Article features

  • 1 outlet
  • maximum flow rate at 3 bar: 28.7 l/min
  • maximum flow rate at 1 bar: 16.9 l/min
  • ceramic cartridge
  • temperature limitation adjustable
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • connection type: basic set
  • WRAS 240102073

Downloads

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Certificates

WRAS (Water Regulations Advisory Scheme)

 The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Installation information

Scale drawing

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Further Parts are required
Please note that other products are required to install this product. Click here for more information.

Required parts

Basic set for single lever manual shower mixer for concealed installation
hansgrohe

Basic set for single lever manual shower mixer for concealed installation
