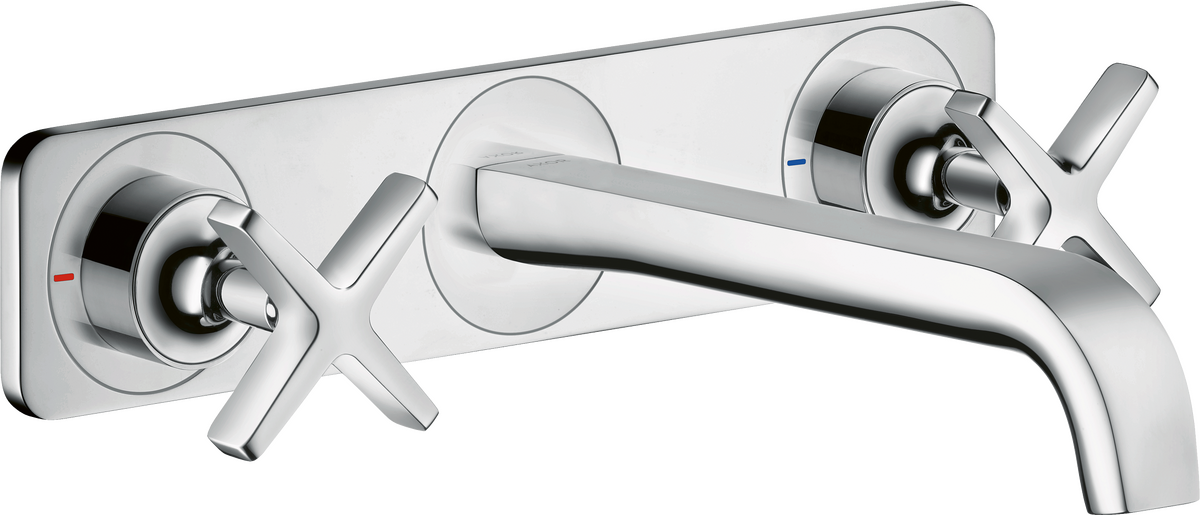

AXOR Citterio E3-hole basin mixer for concealed installation wall-mounted with spout 220 mm and plate
Product code 36115000
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Consists of: 3-hole basin mixer for concealed installation wall-mounted, waste set
- spout 220 mm long
- Handle variant: Cross
- wall-mounted
- Spray pattern: laminar spray
- Maximum flow rate (at 3 bar): 5 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- ceramic valves hot / cold 180°
- free flow non-closing waste
- operating pressure: min. 1 bar / max. 10 bar
- winner of the iF product design award 2015
- WRAS 2101006
Downloads
Planning data
Technical drawings
Required parts
Spare parts for build year 12/14
| Item no. |
|---|
| b | plug92313000 |
| a | waste50001000 |
| c | base body10303180 |
| 1 | spout 220 mm92336000 |
| 2 | aerator laminar M16,5x1 (5 l/min)95382000 |
| 3 | special tool98987000 |
| 4 | hollow set screw M5x598446000 |
| 5 | escutcheon for spout92342000 |
| 6 | O-ring 30x1,598433000 |
| 7 | O-ring 17x1,598137000 |
| 8 | connecting thread G½95626000 |
| 9 | O-ring 13x298128000 |
| 10 | handle92343000 |
| 11 | escutcheon92344000 |
| 12 | seal97530000 |
| 13 | fixing set96393000 |
| 14 | extension 25 mm95413000 |
| 15 | extension 25 mm96259000 |
Innovative technologies
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
EcoSmart
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Five-year manufacturer’s guarantee
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
