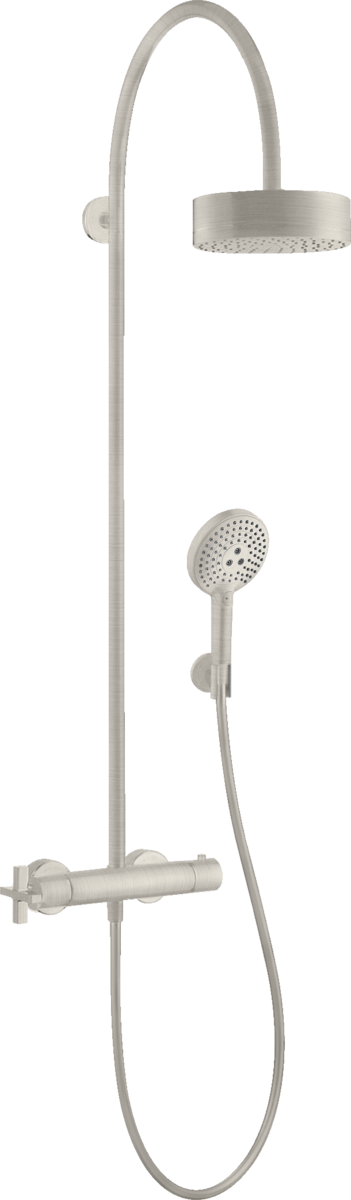

AXOR CitterioShowerpipe with thermostatic mixer and 1jet overhead shower 180
Product code 39670800
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Consists of: overhead shower, hand shower, Thermostatic shower mixer, shower hose, shower holder
- overhead shower AXOR Citterio
- shower head size overhead shower: 180 mm
- spray type overhead shower: Rain
- flow rate Rain 17 l/min at 3 bar
- spray type hand shower: RainAir, Rain, Whirl
- Flow rate of hand shower (at 3 bar): 14.9 l/min
- Maximum flow rate for Showerpipe at 3 bar: 17 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- overhead shower angle adjustable
- Shower bar diameter: 22 mm
- shower arm length overhead shower: 444 mm
- thermostat AXOR Citterio
- safety stop at 38°C
- adjustable hot water limitation
- outlets controlled via volume control/diverter and may not be used simultaneously
- exposed design allows easy installation, all working parts are outside of the wall
- Connection dimension: 1/2"
- Connection thread: ½"
- Centre distance: 150 mm ± 12 mm
- Intrinsically safe against backflow
- thermostatic temperature control
- designed to run 2 outlets
Consists of
Downloads
Technical drawings
Optional accessories
Innovative technologies
More pleasure, more efficiency
Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
Spray Types
Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Rotating water sprays to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their gentle massaging action.
Trust in highest quality
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
