Discontinued product

AXOR Citterio

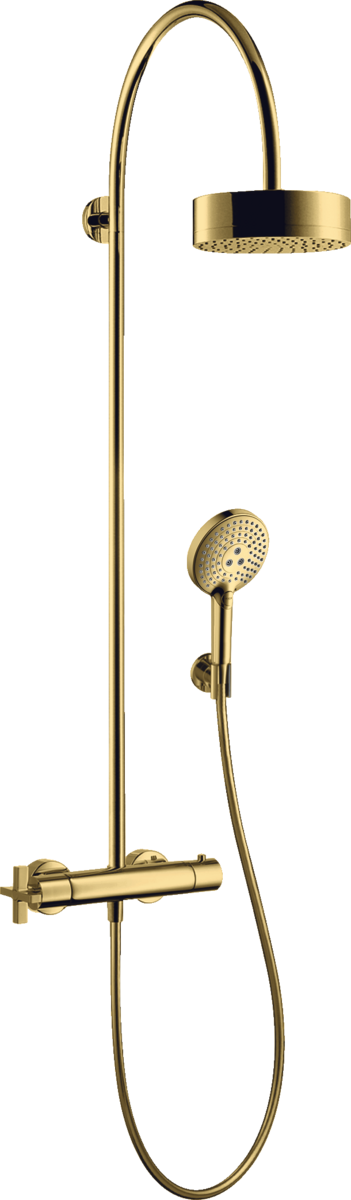

Showerpipe with thermostatic mixer and 1jet overhead shower 180

Showerpipe with thermostatic mixer and 1jet overhead shower 180
 View in AR
 360° View

Product code 39670990

Find the right spare part
Add to notepad Product noted
Product saved for 30 daysSee notepad
The product could not be saved.
Please try again.

Installation information

Scale drawing

Installation example

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Article features

  • consists of: overhead shower, hand shower, thermostatic shower mixer, shower hose, shower holder
  • overhead shower AXOR Citterio
  • shower head size overhead shower: 180 mm
  • spray type overhead shower: Rain
  • flow rate Rain spray at 3 bar: 17 l/min
  • spray type hand shower: RainAir, Rain, Whirl
  • flow rate of hand shower at 3 bar: 14.9 l/min
  • maximum flow rate for Showerpipe at 3 bar: 17 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • overhead shower angle adjustable
  • shower arm length overhead shower: 444 mm
  • thermostatic mixer AXOR Citterio
  • safety stop at 38°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • intrinsically safe against backflow
  • shower rail diameter: 22 mm
  • thermostatic temperature control
  • 2 outlets

Consists of

Hand shower 120 3jet
AXOR ShowerSolutions

Hand shower 120 3jet
Shower holder
AXOR Citterio

Shower holder
Metal effect shower hose 1.60 m with conical nuts
AXOR ShowerSolutions

Metal effect shower hose 1.60 m with conical nuts
