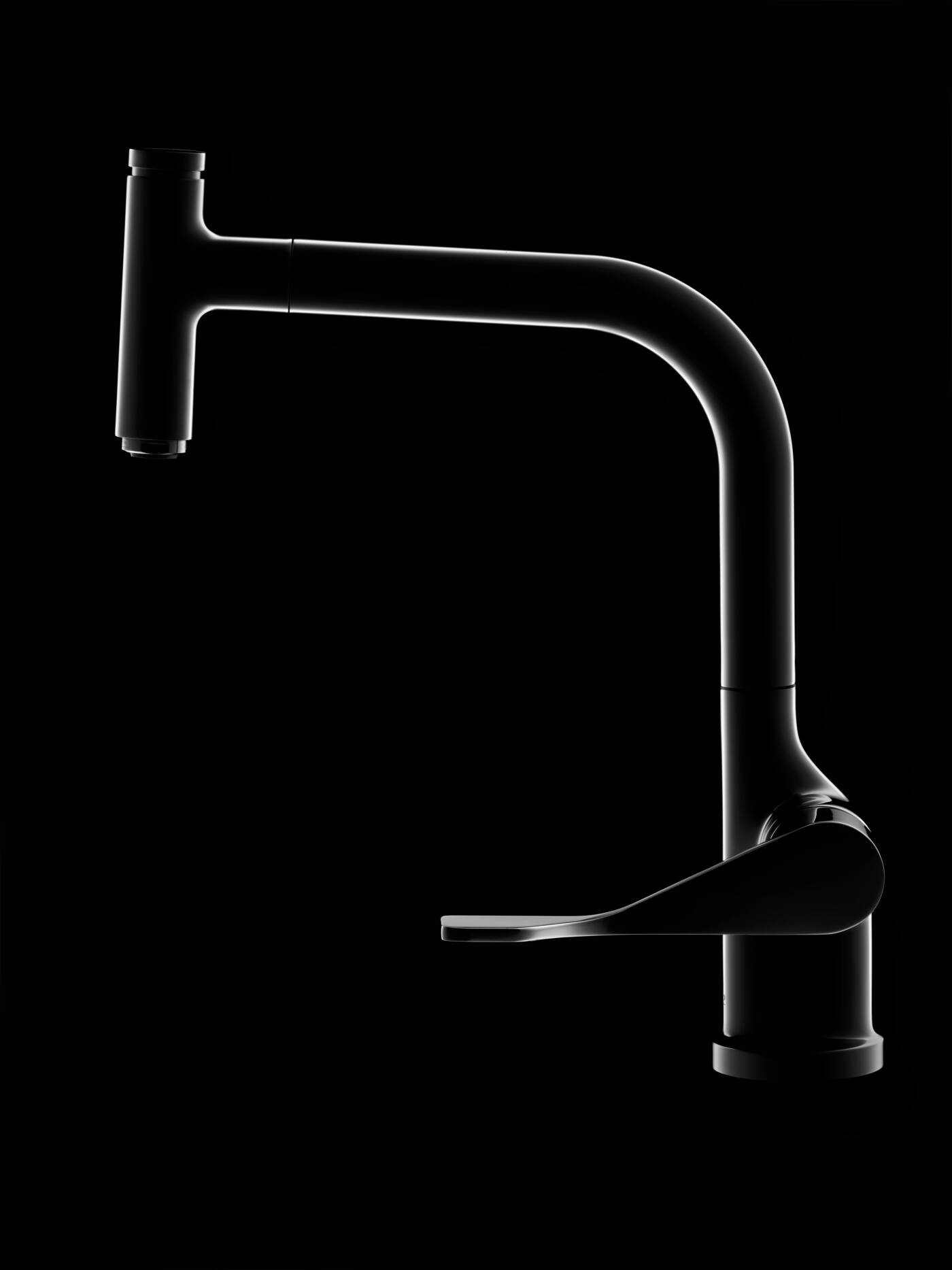

AXOR CitterioSingle lever kitchen mixer Select 230 with pull-out spout

Product code 39861000
Please try again.
Please try again.
Article features
- ComfortZone 230 provides space for greater freedom of movement
- Swivel spout adjustable in 2 steps to 110° or 150°
- normal spray
- Select button for a comfortable start/stop of the water flow
- MagFit magnetic shower support
- quick connect hose
- Maximum flow rate (at 3 bar): 9 l/min
- ceramic cartridge
- ⅜" hose connections
- integrated non-return valve
- operating pressure: min. 1 bar / max. 10 bar
- winner of the iF product design award 2016
Downloads
Technical drawings
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 06/19
To the online spare parts shopItem no. | DescriptionProduct codeDescription and article no. |
---|
1 | spout cpl.92583000 |
2 | O-ring 8x298112000 |
3 | handspray92570000 |
4 | cover92566000 |
5 | O-Ring 14x1,598201000 |
6 | nut92567000 |
7 | shut off unit98463000 |
8 | aerator M24x1 (15 l/min)13913000 |
9 | set of lever collars98365000 |
10 | O-ring 21x2,598211000 |
11 | handle39891000 |
12 | hollow set screw M6x10 DIN 91696029000 |
13 | screw cover96338000 |
14 | flange98603000 |
15 | nut96461000 |
16 | O-Ring 32x298193000 |
17 | cartridge, assy92730000 |
18 | seal95008000 |
19 | weight92500000 |
20 | hose 1,50 m92569000 |
21 | squeezing connection96099000 |
22 | connection hose 600 mm M10x192568000 |
23 | O-ring 8x1,7597827000 |
24 | support97523000 |
25 | fixing set (Ø 34)95049000 |
26 | lever collar97548000 |
27 | connection hose 900 mm M8x0,75 G3/895372000 |
28 | O-ring 7x1,598422000 |
29 | non return valve DW 1096456000 |
30 | filter packing95291000 |
Innovative technologies
AirPower: more volume with added air
With this shower technology, Hansgrohe mixes water with air, and you feel pleasantly sparkling AirPower all over your skin. As water enriched with air makes the droplets plumper, lighter and softer. This means you use your water more efficiently.
Select: convenience at the touch of a button
The Select function can be used to stop and start the water flow at your kitchen tap conveniently at the touch of a button. For precise, ergonomic water control and easier housework.
QuickClean: Less limescale, more fun
Who likes cleaning? With QuickClean, limescale deposits and dirt on hansgrohe taps and showers disappear in an instant. Simply rub any dirt off the flexible silicone nozzles.
ComfortZone: for more space at the kitchen sink
The hansgrohe ComfortZone describes the space you can use between the tap and sink. All taps come with sophisticated technology and are extremely user-friendly.
AirPower
AirPower: more volume with added air
With this shower technology, Hansgrohe mixes water with air, and you feel pleasantly sparkling AirPower all over your skin. As water enriched with air makes the droplets plumper, lighter and softer. This means you use your water more efficiently.
Select
Select: convenience at the touch of a button
The Select function can be used to stop and start the water flow at your kitchen tap conveniently at the touch of a button. For precise, ergonomic water control and easier housework.
QuickClean
QuickClean: Less limescale, more fun
Who likes cleaning? With QuickClean, limescale deposits and dirt on hansgrohe taps and showers disappear in an instant. Simply rub any dirt off the flexible silicone nozzles.
ComfortZone
ComfortZone: for more space at the kitchen sink
The hansgrohe ComfortZone describes the space you can use between the tap and sink. All taps come with sophisticated technology and are extremely user-friendly.
Spray Types
Aerated jet through AirPower technology. More voluminous, lighter, softer droplets for a pleasant water jet.

Normal
Aerated jet through AirPower technology. More voluminous, lighter, softer droplets for a pleasant water jet.

Impressions

Five-year manufacturer’s guarantee
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
