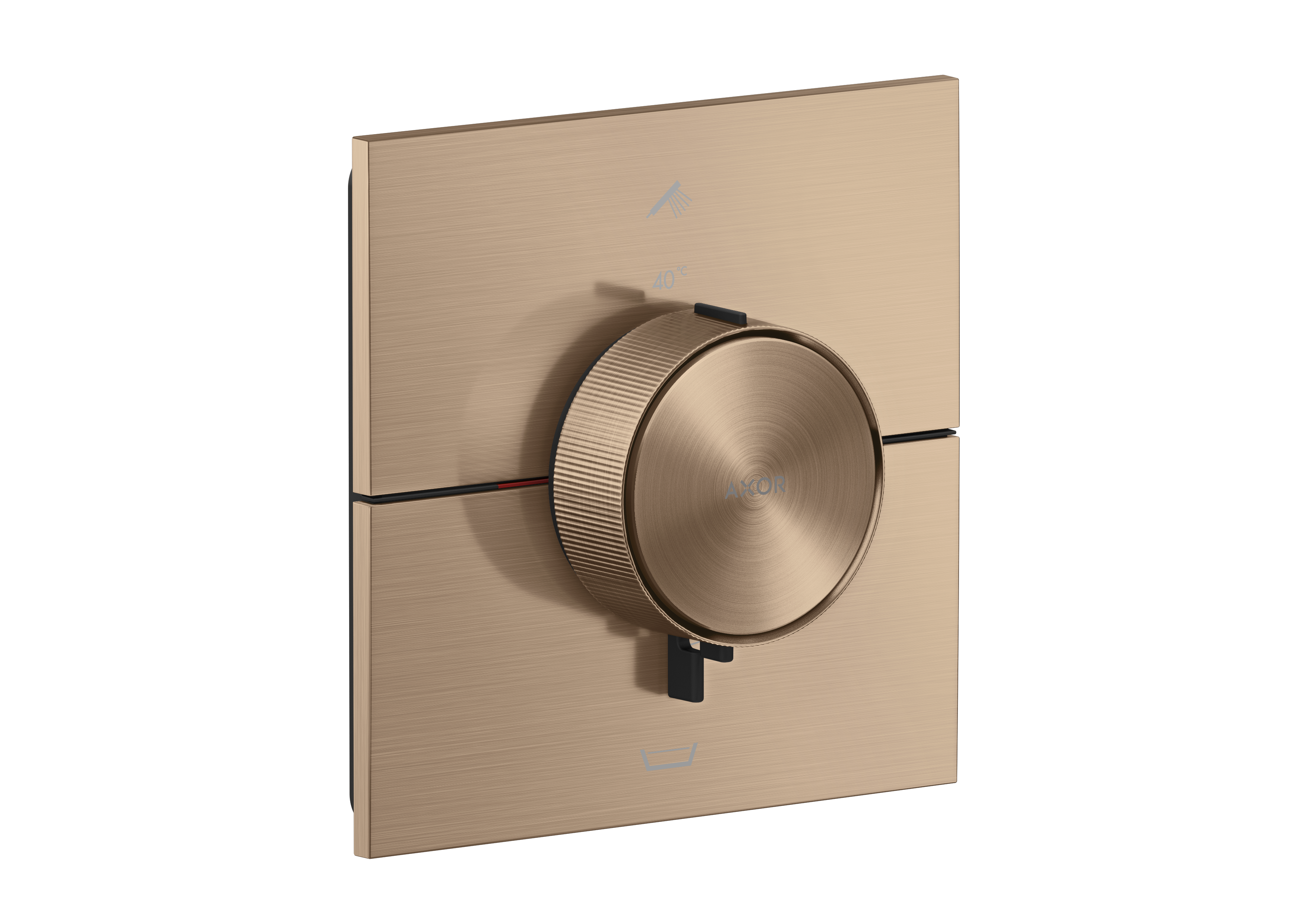

AXOR ShowerSelect IDThermostat for concealed installation square for 2 functions with integrated security combination according to EN1717
Product code 36753310
Please try again.
Article features
- 2 outlets
- comfortable turning on / off of outlets with large Select-paddle, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostatic mixer handle
- water flow control with stop outlet
- thermostatic mixer cartridge, Start/stop valve to operate the outlets
- installation type: concealed installation
- maximum flow rate at 3 bar: 22,1 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- flat escutcheon for more space in the shower
- escutcheon can be aligned by +/- 3°
- easy installation due to pre-assembled outlet block
- handles always at the same height regardless of the installation depth of the basic set
- Safety stop at 40 °C
- temperature limitation adjustable
- the thermostatic mixer offers the possibility for thermal disinfection
- with integrated backflow prevention EN 1717
- material button: metal
- material handles: metal
- connection type: basic set iBox universal 2 (# 01400180)
- Select-paddles are delivered with lasered user symbols (hand shower and bath tub)
- noise class: I
- WRAS 2311030
Downloads
Required parts
Innovative technologies
Always constant water temperature
For mindful use of water
Safety lock at over 40 °C
Intuitive jet adjustment
Thermostat
Always constant water temperature
Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Water flow control
For mindful use of water
The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
