AXOR ShowerSelect

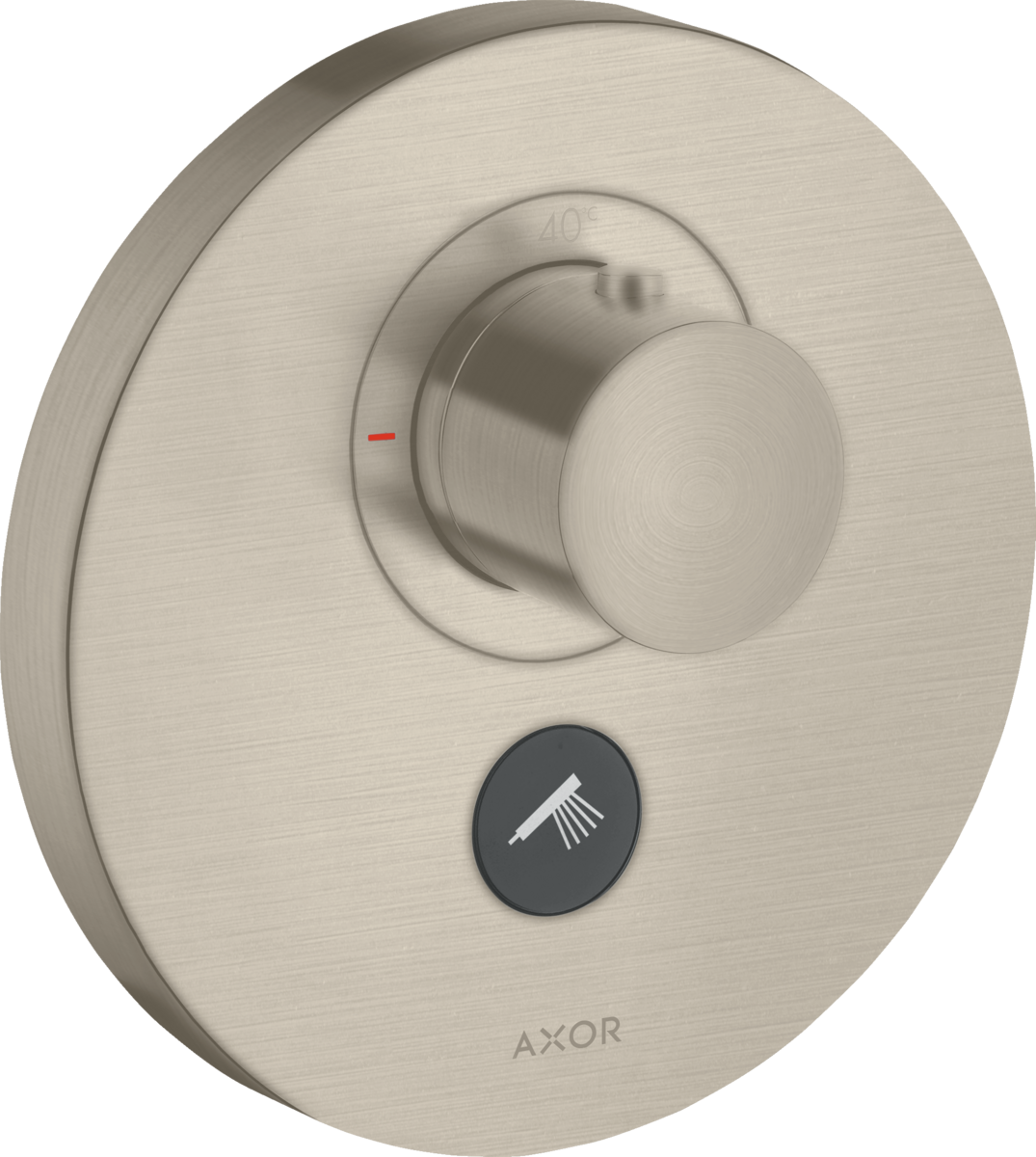

Thermostatic mixer HighFlow round for concealed installation for multiple outlets

Thermostatic mixer HighFlow round for concealed installation for multiple outlets
 View in AR
 360° View

Product code 36726820

Article features

  • 1 outlet
  • Select push button on/off control for 1 outlet
  • thermostatic mixer cartridge
  • installation type: concealed installation
  • maximum flow rate at 3 bar: 59 l/min
  • flow rate upper outlet: 59 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • connection type: basic set
  • thermostatic mixer is delivered with button hand shower
  • noise class: I
  • WRAS 2211001
  • NSF REG 4 192566

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Certificates

WRAS (Water Regulations Advisory Scheme)

 The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Installation information

Scale drawing

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

Basic set ½"
AXOR iBox universal 2

Basic set ½"
Adapter plate for iBox universal 2
hansgrohe

Adapter plate for iBox universal 2
Basic set ½" and ¾"
AXOR iBox universal

Basic set ½" and ¾"

Optional accessories

Extension set 170 mm
hansgrohe

Extension set 170 mm
Extension 25 mm for basic set iBox universal

Extension 25 mm for basic set iBox universal
Fastening rail set for iBox universal

Fastening rail set for iBox universal

Innovative technologies

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Trust in highest quality

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
