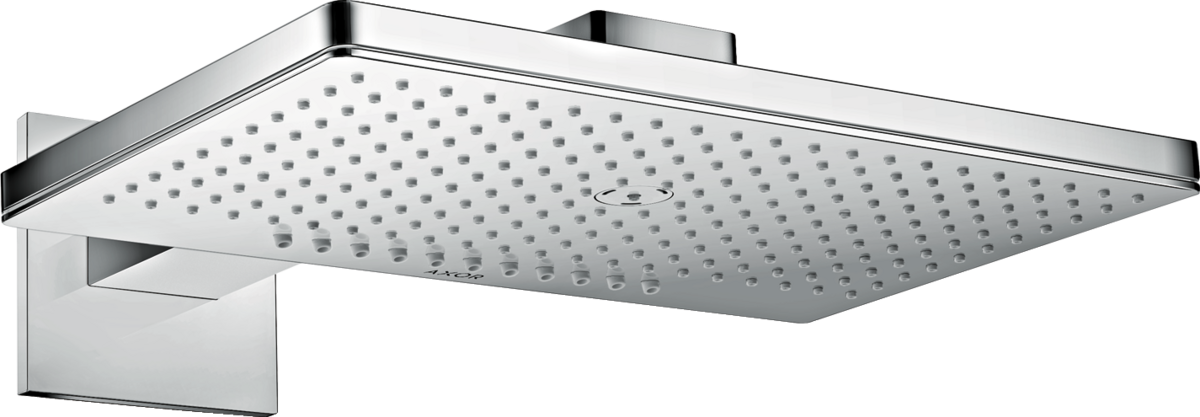

AXOR ShowerSolutionsOverhead shower 460/300 2jet with shower arm and square escutcheon
Product code 35280000
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Consists of: overhead shower, shower arm, escutcheon
- Shower head size: 466 x 300 mm
- Spray pattern: Rain, RainStream
- Spray face: metal
- Shower arm length 460 mm
- maximum flow rate 18 l/min at 3 bar
- flow rate Rain 18 l/min at 3 bar
- flow rate RainStream 15 l/min at 3 bar
- Operating pressure: min. 1.5 bar/max. 6 bar
- spray disc removable for cleaning
- overhead shower removable for cleaning
- Installation: wall-mounted - based on iBox
- Connection type: basic set
- WRAS 2006045
Downloads
Download all files
Download all files
Required parts
Spare parts for build year 07/17
| Item no. |
|---|
| 1 | filter98513000 |
| 2 | O-ring 16x298133000 |
| 3 | O-ring 18x298181000 |
| 4 | O-ring 12x298214000 |
| 5 | set of screws96525000 |
| 6 | escutcheon 155 / 155 mm92700000 |
| 7 | hollow set screw M5x892851000 |
| 8 | shower arm92701000 |
| 9 | head shower93208000 |
| 10 | cover93393000 |
| 11 | cartridge, assy93389000 |
| 12 | spray insert92923000 |
| 13 | frame93391000 |
| 14 | spray body93210000 |
| 15 | filter92683000 |
| 16 | O-ring 24x298388000 |
| 17 | spray insert93207000 |
| 18 | O-ring 15x298163000 |
| 19 | O-ring 21x298205000 |
| 20 | special tool92686000 |
| 21 | extension 25 mm13595000 |
| 22 | set of fixing screws97747000 |
| 23 | compensation set 1°95521000 |
Innovative technologies
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
Spray Types
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Lavish downpour with soft sprays that invigorate the body, mind and soul. The extraordinary spray consists of individual pearl-like droplets and is an intense, energising shower for people of all ages.
Five-year manufacturer’s guarantee
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
