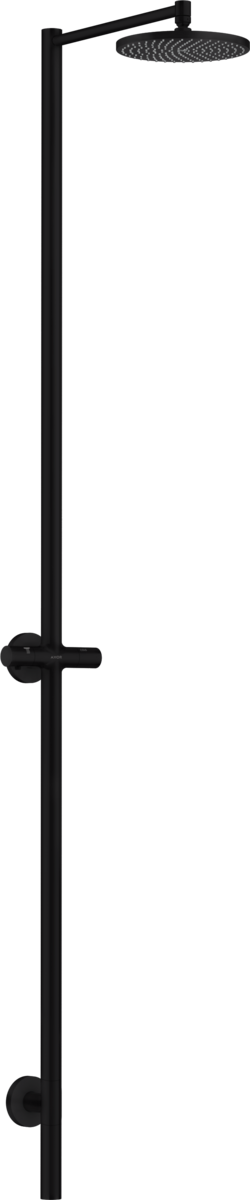

AXOR StarckNature shower column
Product code 12671670
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Consists of: shower column, overhead shower, shower mixer
- Shower head size: 240 mm
- overhead shower 240 1jet
- Spray pattern: PowderRain
- Maximum flow rate (at 3 bar): 12.2 l/min
- Maximum flow rate (at 1 bar): 6.2 l/min
- minimum flow pressure: 1 bar
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- ceramic cartridge
- Installation: wall-mounted
- Connection type: ½"
- Non-return valve
- designed to run 1 outlet
- easy drainage system by removing the check valves to empty the product
- installation area: outdoor
- in case of wintering/danger of frost: The product must be completely dismantled, emptied and stored in a dry place. All components must no longer contain water.
- the water connection of the product must be accessible
Consists of
Downloads
Technical drawings
Optional accessories
Spare parts for build year 10/22
| Item no. |
|---|
| 1 | O-Ring 30x298186000 |
| 2 | O-ring 10x298170000 |
| 3 | O-ring 30x1,598433000 |
| 4 | head shower Ø 240 mm94830670 |
| 5 | seal98058000 |
| 6 | filter92672000 |
| 7 | flow limiter93071000 |
| 8 | ball joint98941670 |
| 9 | lock washer98942670 |
| 10 | lever collar97536000 |
| 11 | seal97606000 |
| 12 | screw95796000 |
| 13 | O-ring 7x298419000 |
| 14 | handle94817000 |
| 15 | safety set95840000 |
| 16 | nut98913000 |
| 17 | O-ring 26x1,598390000 |
| 18 | cartridge, assy98303000 |
| 19 | shut off unit with selector98283000 |
| 20 | handle94814000 |
| 21 | 13608000 |
| 22 | O-Ring 28x298194000 |
| 23 | nut94815000 |
| 24 | special tool97563000 |
| 25 | handle94816000 |
| 26 | O-ring 17x1,598137000 |
| 27 | non return valve (pressure-resistant up to 2 MPa)92594000 |
| 28 | filter packing95291000 |
| 29 | O-ring 11x298127000 |
Innovative technologies
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
Spray Types
Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.
Five-year manufacturer’s guarantee
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
