AXOR Starck V

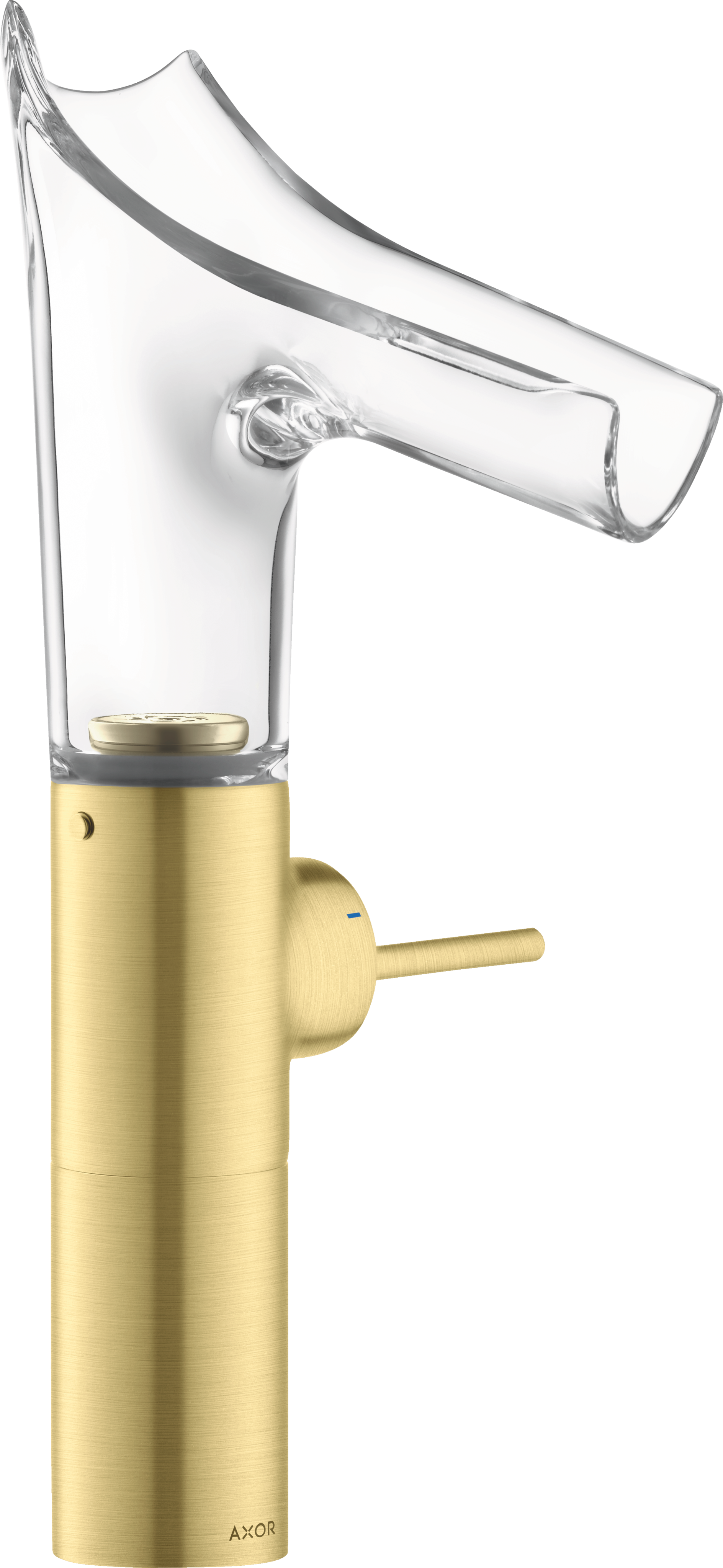

Single lever basin mixer 220 with glass spout for wash bowls without waste

Single lever basin mixer 220 with glass spout for wash bowls without waste
 View in AR
 360° View
Change variant
AXOR Starck V
Select variant
Single lever basin mixer 220 with glass spout for wash bowls without waste
Single lever basin mixer 140 with glass spout without waste
Single lever basin mixer 140 with glass spout - bevel cut without waste
Finish Brushed Brass

Product code 12114950

Article features

  • consists of: single lever basin tap, waste set
  • ComfortZone 220 provides space for greater freedom of movement
  • spout 125 mm long
  • spout height: 220 mm
  • handle variant: pin handle
  • deck mounted installation
  • swivel range adjustable in 3 steps 95°, 120° or 360°
  • spray type: laminar spray
  • EasyClick connection between body and spout with SafetyStop-outlet
  • Spout is dishwasher safe
  • material spout: crystal glass
  • maximum flow rate at 3 bar: 4 l/min
  • min. operating pressure: 1.5 bar
  • max. operating pressure: 5 bar
  • ceramic cartridge
  • free flow non-closing waste
  • handle can be positioned on the right or left
  • winner of the iF product design award 2015
  • not recommended for the public and semi-public area

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Saving resources with pleasure

hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.

Excellent user comfort

Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.

EcoSmart

Saving resources with pleasure

hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.

ComfortZone

Excellent user comfort

Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.

Trust in highest quality

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
