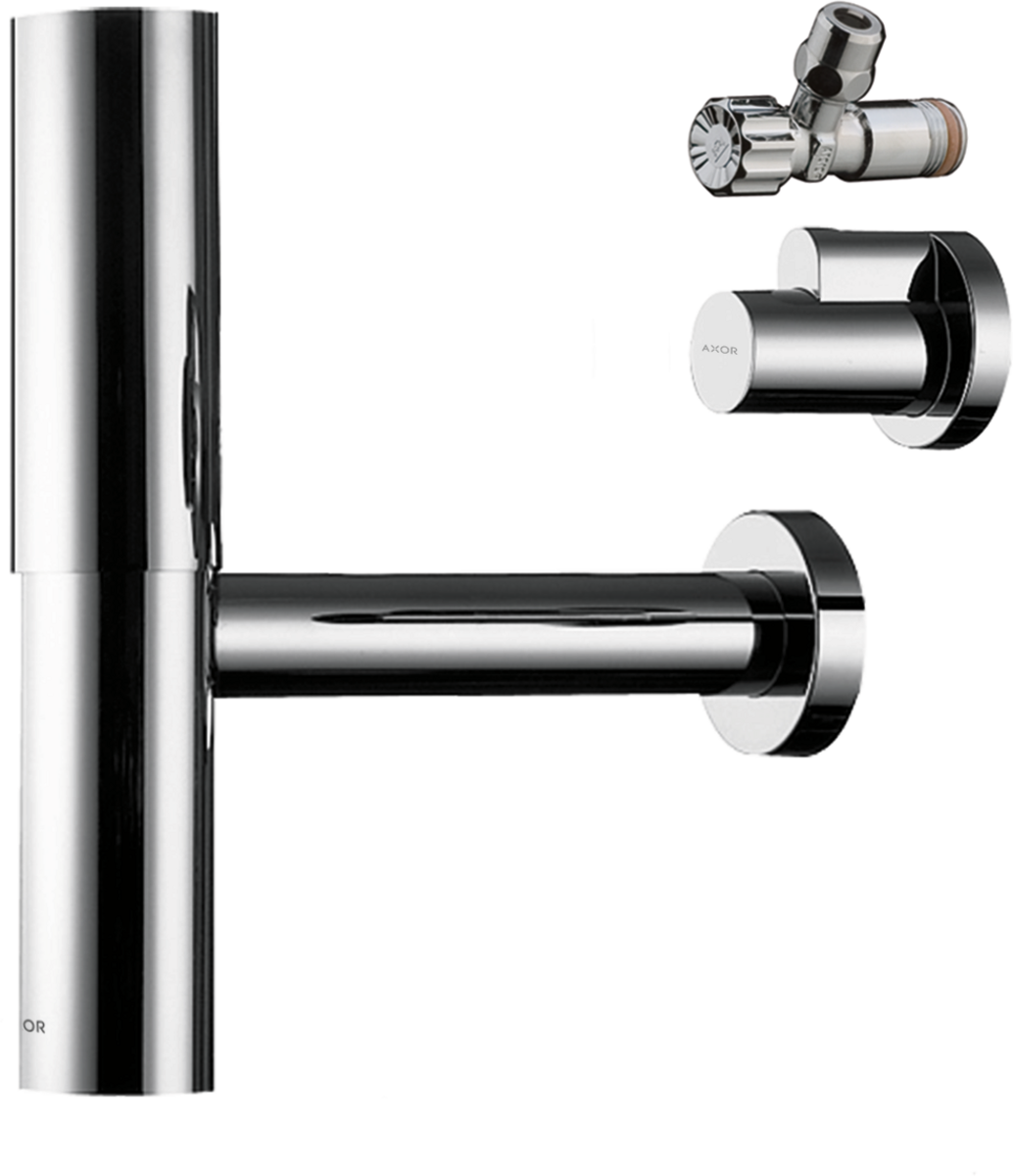

Bottle trap Flowstar design set with angle valves

Bottle trap Flowstar design set with angle valves
 View in AR
 360° View
Finish Chrome

Product code 51304000

Article features

  • consists of: design trap, 2 angle valves, 2 covers
  • adjustment distance 65 - 165 mm
  • distance to wall 330 mm
  • odour trap - backwater height is 75 mm
  • connection dimension entry: G 1¼

Consists of

Bottle trap 1¼" Flowstar

Bottle trap 1¼" Flowstar
Angle valve with cover (single)

Angle valve with cover (single)

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Further Parts are required
Please note that other products are required to install this product. Click here for more information.

Required parts

McAlpine S28L-ISO Multifit Straight Connector 1¼" x 32 mm to connect UK waste pipe to European dimensions
hansgrohe

McAlpine S28L-ISO Multifit Straight Connector 1¼" x 32 mm to connect UK waste pipe to European dimensions
McAlpine MS4-ISO 90° Multifit Bend 1¼" x 32 mm to connect UK waste pipe to European dimensions
hansgrohe

McAlpine MS4-ISO 90° Multifit Bend 1¼" x 32 mm to connect UK waste pipe to European dimensions
