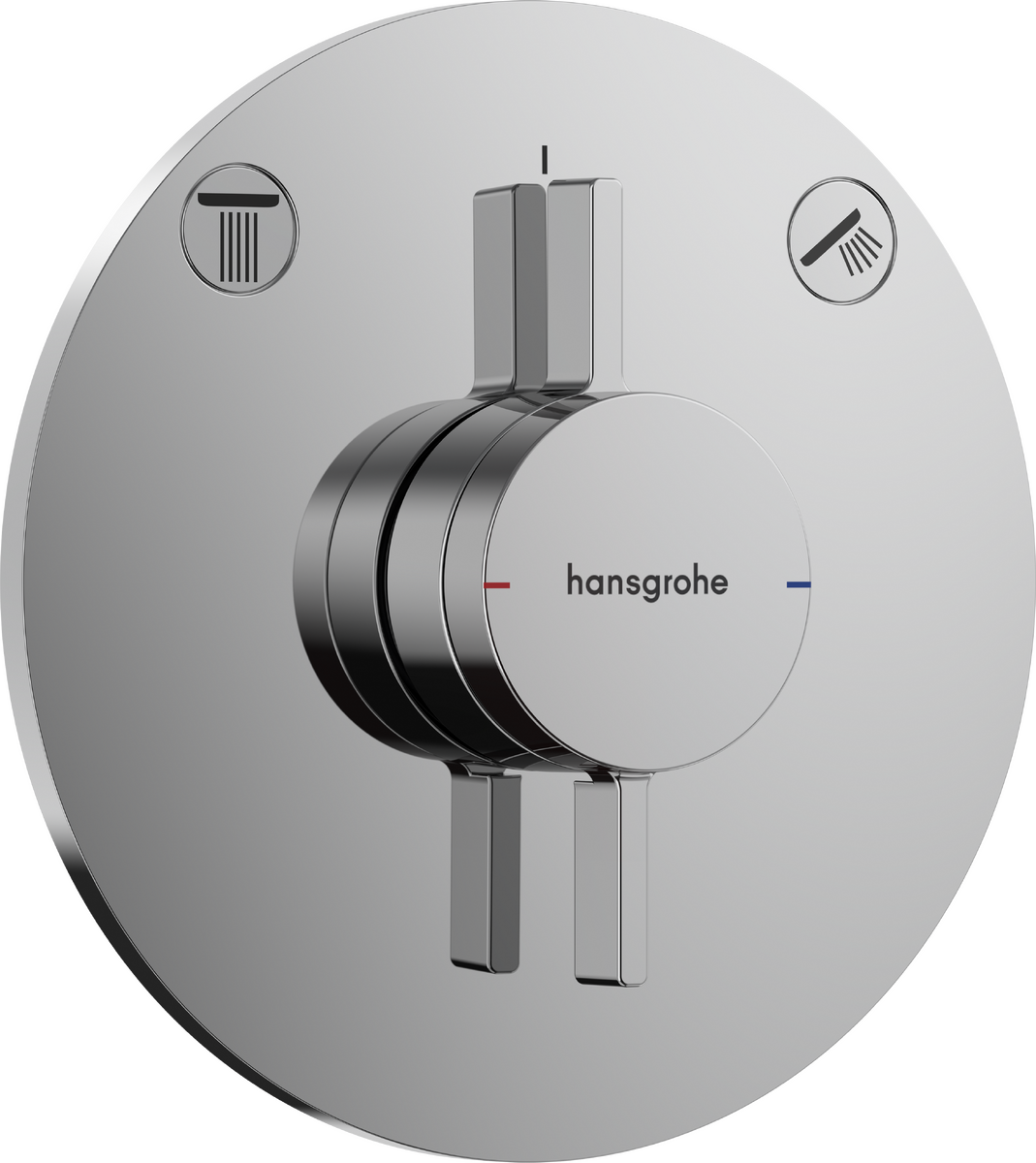

hansgrohe DuoTurn S
Mixer for concealed installation for 2 functions

NEW
product.image.alt
product.closeup.image.alt
1 / 2
 View in AR
 360° View
Change variant
hansgrohe DuoTurn S
Select variant
Mixer for concealed installation for 2 functions
Mixer for concealed installation for 1 function
Finish Chrome

Product code 75418000

Article features

  • designed to run 2 outlets
  • volume control and diverter for 2 functions
  • Maximum flow rate (at 3 bar): 29.5 l/min
  • flow rate upper outlet 29.5 l/min at 3 bar
  • flow rate lower outlet 29.5 l/min at 3 bar
  • MR 32, AuV 26
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • escutcheon can be aligned by +/- 3°
  • material escutcheon: plastic
  • Material handles: metal
  • Min. operating pressure: 1 bar
  • Max. operating pressure: 10 bar
  • mixer is delivered with buttons Rain small, Rain large, hand sower, Waterfall, bath tub
  • Connection type: basic set iBox universal 2 (# 01500180)

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Further Parts are required
Please note that other products are required to install this product. Click here for more information.

Required parts

Basic set ½"
hansgrohe iBox universal 2

Basic set ½"

Optional accessories

Adapter for extension element
hansgrohe DuoTurn S

Adapter for extension element

Spare parts for build year 09/23

To the online spare parts shop
To the online spare parts shop
product.spareparts.image.alt
Item no. DescriptionProduct codeDescription and article no.
a concealed item01500180
d Security combination according to EN 171713077000
c extension 25 mm13638000
b extension 25 - 75 mm13632000
1 handle94913000
2 handle for shut off unit94914000
3 set of symbols94924000
4 O-ring 3,1x1,694927000
5 escutcheon94917000
7 compensation set94930000
8 hexagon socket screw M4x1294929000
9 service unit94928000
11 O-Ring 22x298185000
12 nut98913000
13 cartridge, assy98303000
14 nut92853000
15 shut off unit with selector94716000
17 O-ring 16x2,598134000
18 extension 5 mm13614000
19 extension set13631000
20 extension 22 mm13624000

Innovative technologies

Water Flow Control: Precisely regulate the water volume

This water volume can be precisely regulated, so you can use less of this precious resource. Individually adjustable for all those who usually find a gentle water flow more pleasant.

Water flow control

Water Flow Control: Precisely regulate the water volume

This water volume can be precisely regulated, so you can use less of this precious resource. Individually adjustable for all those who usually find a gentle water flow more pleasant.

Awards

iF product design award 2023

 Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.

Five-year manufacturer’s guarantee

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
