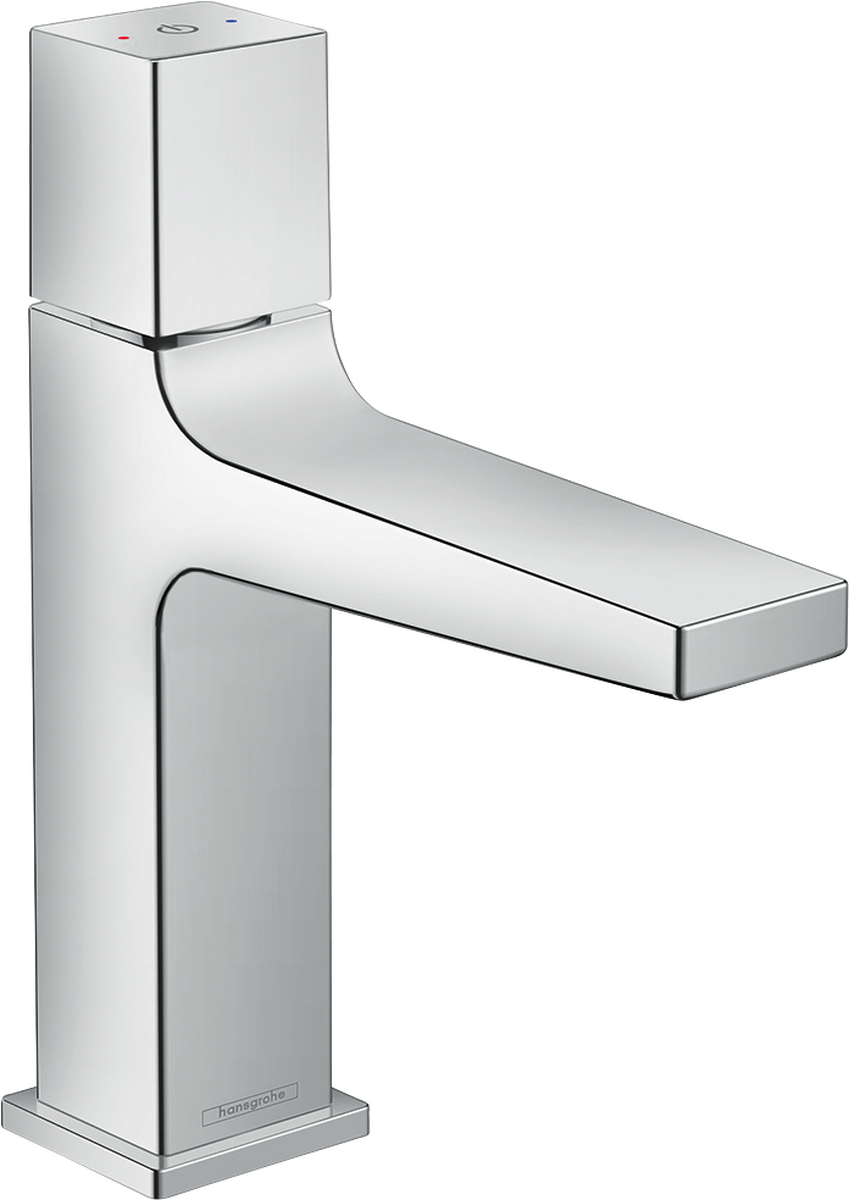

hansgrohe MetropolBasin mixer 110 Select with push-open waste
Product code 32571000
Please try again.
Article features
- Consists of: Basin mixer, waste set
- ComfortZone 110 provides space for greater freedom of movement
- spout 135 mm long
- spout height: 117 mm
- Handle variant: Select
- free-standing installation
- Spray pattern: normal spray
- Maximum flow rate (at 3 bar): 5 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Select Cartridge with temperature control
- push-open waste set G 1¼
- Material waste set: metal
- QuickClean technology for easy limescale removal
- if running with a pump, please specify a universal (negative head) pump
- WRAS 2305024
- EPD_20220300_Basin_faucets
Downloads
Planning data
Technical drawings
Certificates
Spare parts for build year 03/18
| Item no. |
|---|
| b | fixation extension 35 mm13898000 |
| a | push-open waste set50100000 |
| 1 | handle93070000 |
| 2 | adapter for handle92526000 |
| 3 | nut92528000 |
| 4 | O-ring 27x1,592527000 |
| 5 | cartridge, assy92529000 |
| 6 | adapter for cartridge98866000 |
| 7 | O-ring 23x298398000 |
| 8 | aerator M24x1 (5 l/min)92996000 |
| 9 | service tool95661000 |
| 10 | escutcheon93048000 |
| 11 | flat seal98749000 |
| 12 | fixing set (Ø 32)13961000 |
| 13 | lever collar97548000 |
| 14 | connection hose 450 mm M8x0,75 G3/892531000 |
| 15 | O-ring 7x1,598422000 |
| 16 | non return valve DW 1096456000 |
| 17 | filter92532000 |
| 18 | sealing set92533000 |
Innovative technologies
More pleasure, more efficiency
Excellent user comfort
Saving resources with pleasure
Select for faucets
QuickClean: Less limescale, more pleasure
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
ComfortZone
Excellent user comfort
Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.
EcoSmart
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.

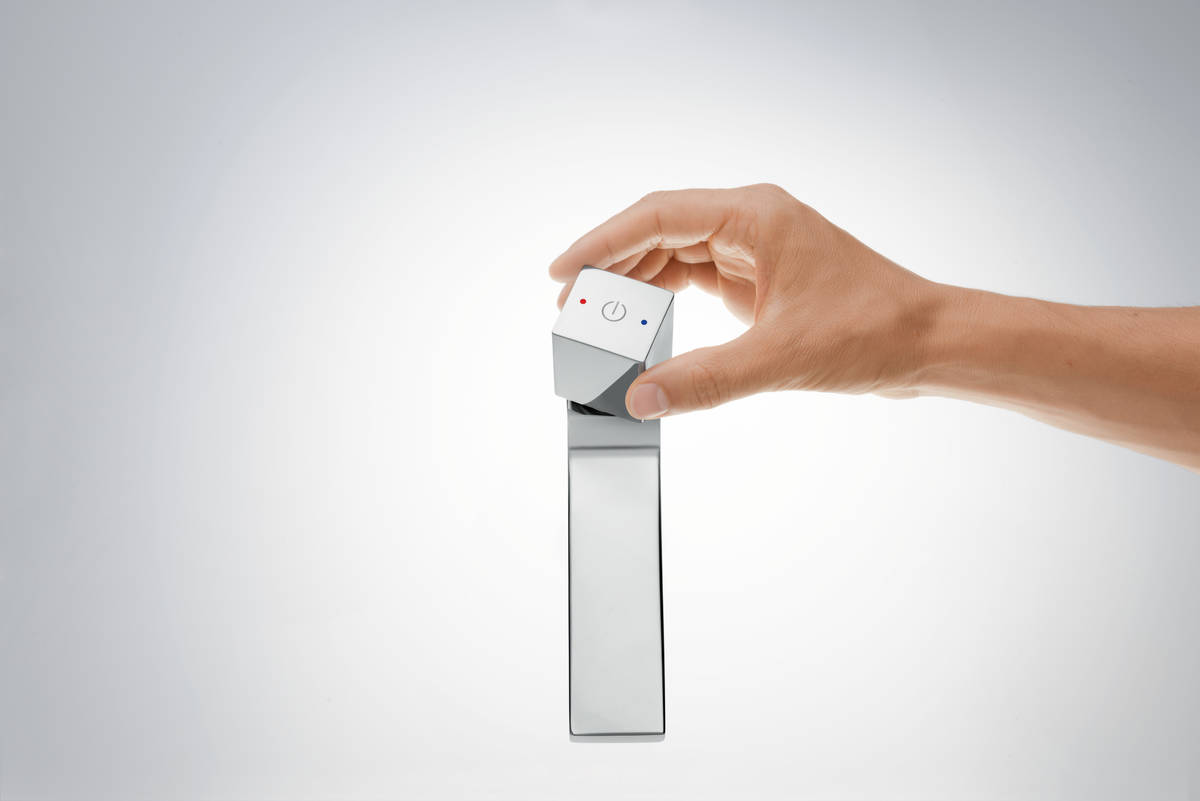

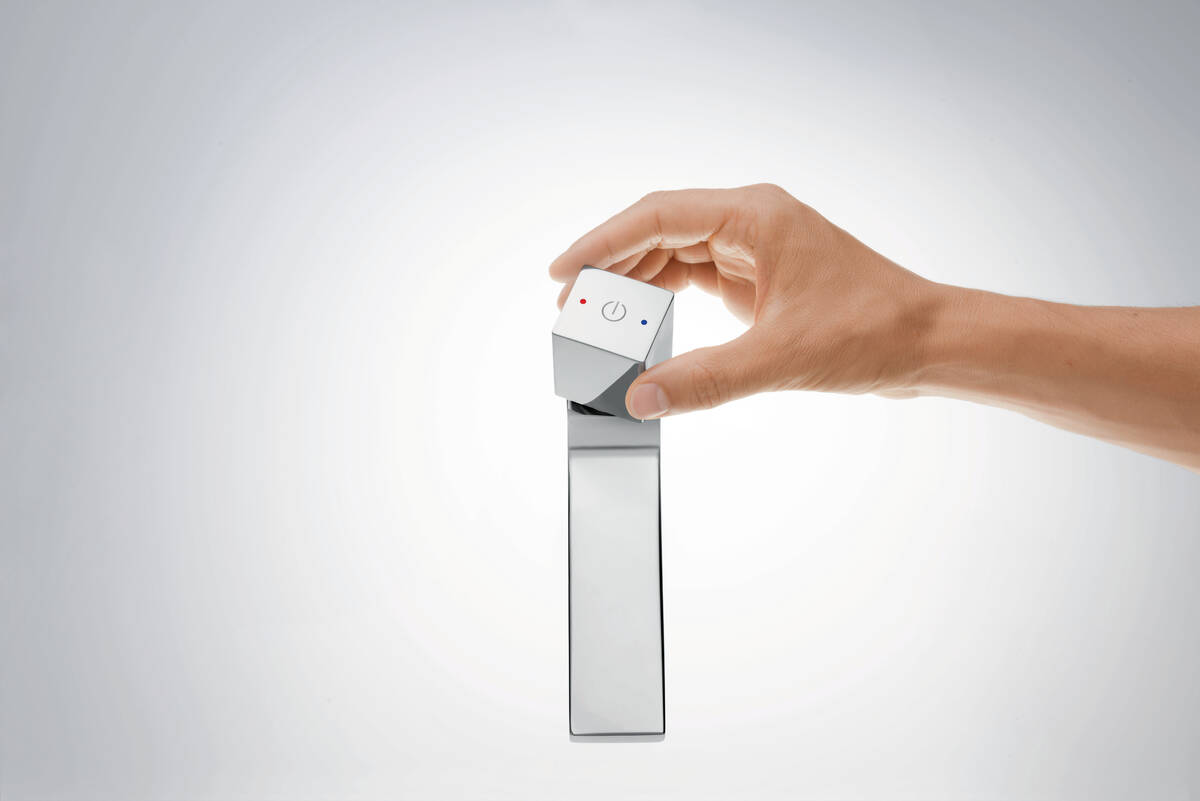

Select
Select for faucets
Fans of intuitive design can start, pause and stop the flow of water at the touch of a button. The Select push button simplifies routines such as shaving or brushing teeth and can also be operated using the back of the hand or an elbow.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
