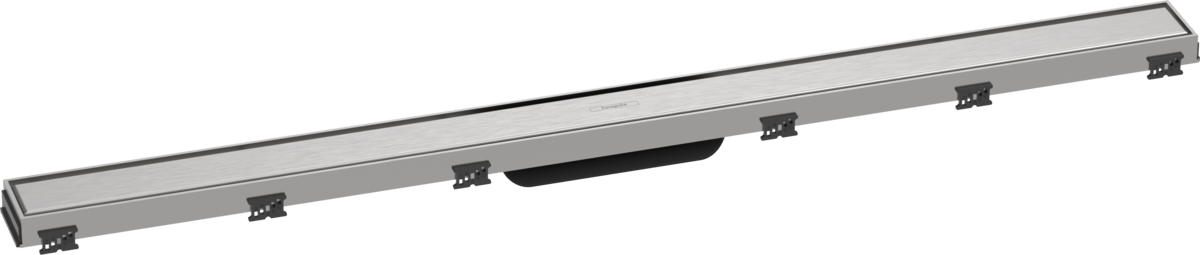

hansgrohe RainDrain MatchFinish set shower drain 1000 with height adjustable frame
1 / 2
View in AR
360° View
Change variant
hansgrohe RainDrain Match
Select variant
Finish set shower drain 1000 with height adjustable frame
Finish set shower drain 600 with height adjustable frame
Finish set shower drain 700 with height adjustable frame
Finish set shower drain 800 with height adjustable frame
Finish set shower drain 900 with height adjustable frame
Finish set shower drain 1200 with height adjustable frame
from
from
from
from
from
from
{{points}}
Secure your talismans for this product.
Product code 56041800
from
Discount Group {0}
RRP ex VAT
Add to notepad
Product noted
Product saved for 30 daysSee notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
Product added
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- consists of: design grate, height adjustable frame, wall installation flange, Dryphon
- mounting type: wall-mounted, free in the floor
- easy to clean surface
- easy adjustment to tile thickness with height adjustable frame (7 – 18 mm)
- tile thickness: up to 18 mm
- suitable for any type of tile
- up to 60 l/min drainage capacity
- where to use: new construction, renovation
- grate removal tool allows easy removal of the finish set
- type of odour seal: mechanical
- Dryphon enables waterless siphon system
- minimal installation height: 84 mm (flat uBox), 102 mm (standard uBox)
- wall-mounted possible
- tile inlay depth: 12 mm
- grate material: Stainless Steel 304 (1.4301)
- suitable for primary and secondary drainage
- frame width: 62 mm
- third party controlled acc. DIN EN 1253-3
Downloads
Planning data
Technical drawings
Instructions
Installation information
Scale drawing
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Further Parts are required
Required parts - Select variant
Find the right spare part
RainDrain Match Finish set shower drain 1000 with height adjustable frame
Product code 56041800
Finish Brushed Stainless Steel
Construction year
Product code 56041800
Finish Brushed Stainless Steel
Construction year
+
_
{{part.number}}
{{part.text}}
Product code
{{part.articleNumber}}
{{part.price}}
RRP ex VAT
{{key}} {{ value }}
Packaging unit: {{part.packagingUnit}}
In Stock
Not available
Innovative technologies
Easy to clean surface
At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
For a flush integration into the floor
The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.
QuickClean
Easy to clean surface
At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
Adjustable frame height
For a flush integration into the floor
The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.
Awards
Trust in highest quality
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
