Spare Part

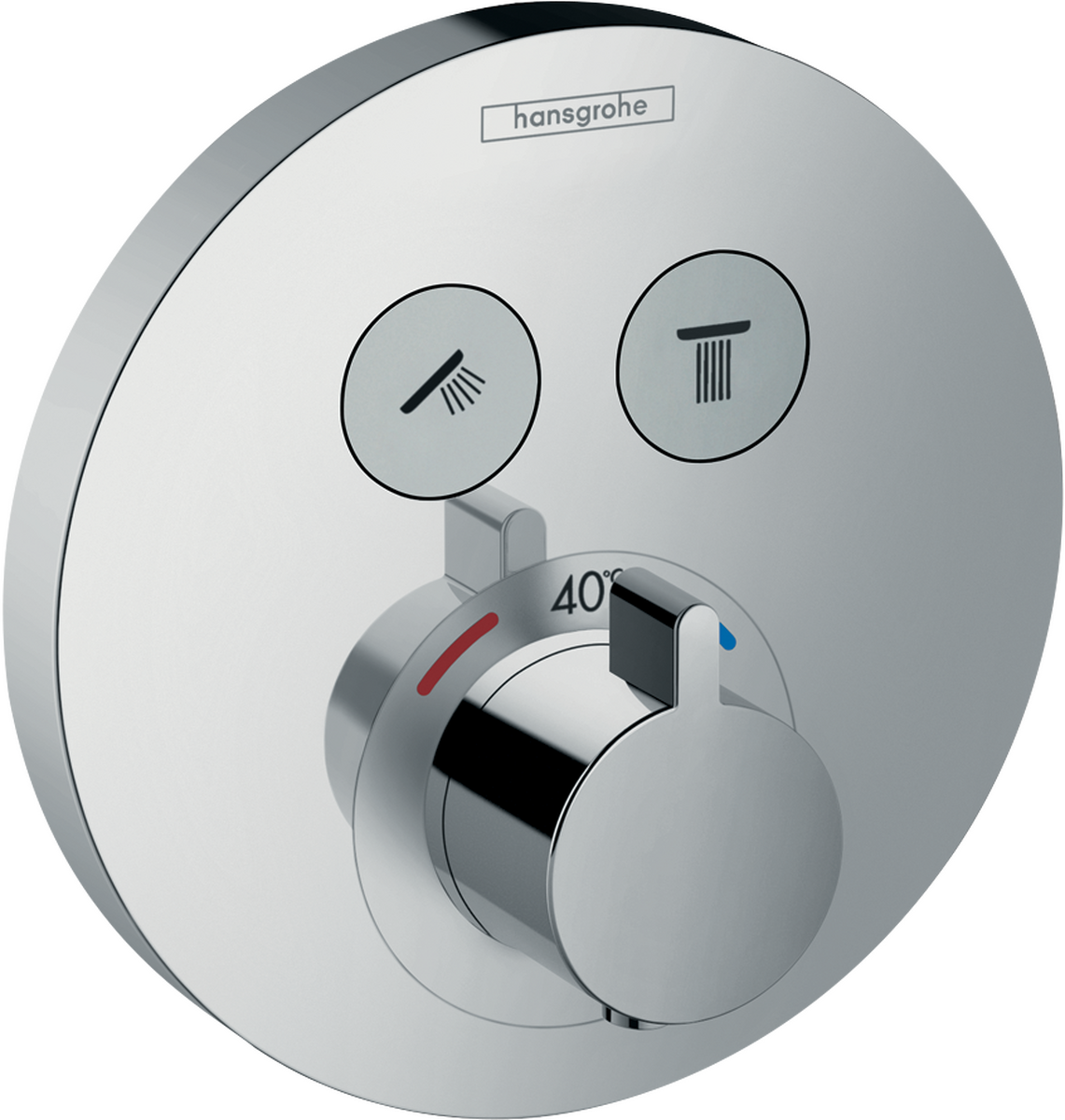

ShowerSelect S
Thermostat

Thermostatic mixer for concealed installation for 2 outlets
 View in AR
 360° View
Finish Chrome

Product code 15743000

Article features

  • 2 outlets
  • simultaneous use of several outlets
  • Select push-button on/off control for 2 outlets
  • thermostatic mixer cartridge, Start/stop valve to operate the outlets
  • installation type: concealed installation
  • maximum flow rate at 3 bar: 29,7 l/min
  • flow rate upper outlet: 25 l/min
  • flow rate lower outlet: 23 l/min
  • flow rate by simultaneous use of all outlets: 29,7 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • connection type: basic set
  • thermostatic mixer is delivered with buttons hand shower and Rain large
  • noise class: II
  • WRAS 2211001
  • REG4 1+ 2403725

Downloads

Certificates

WRAS (Water Regulations Advisory Scheme)

 The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

TMV2 - A thermostatic mixing valve, with a maximum temperature stop

 The TMV2 Scheme is the third party valve accreditation programme administered by Buildcert, testing valves and certifying their suitability for use in the domestic market.

Environmental Product Declaration

 An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.

Installation information

Scale drawing

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Further Parts are required
Please note that other products are required to install this product. Click here for more information.

Required parts - Select variant

Basic set ½"
hansgrohe iBox universal 2

Basic set ½"
Adapter plate for iBox universal 2
hansgrohe

Adapter plate for iBox universal 2
Basic set ½" and ¾"
hansgrohe iBox universal

Basic set ½" and ¾"

Optional accessories

iBox universal basic set extension 25 mm
hansgrohe

iBox universal basic set extension 25 mm
Extension set 150 mm
hansgrohe

Extension set 150 mm
