hansgrohe Vernis Blend

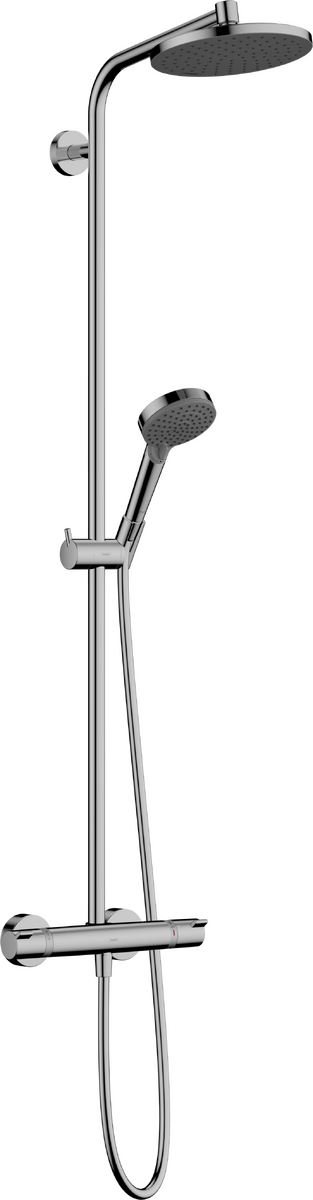

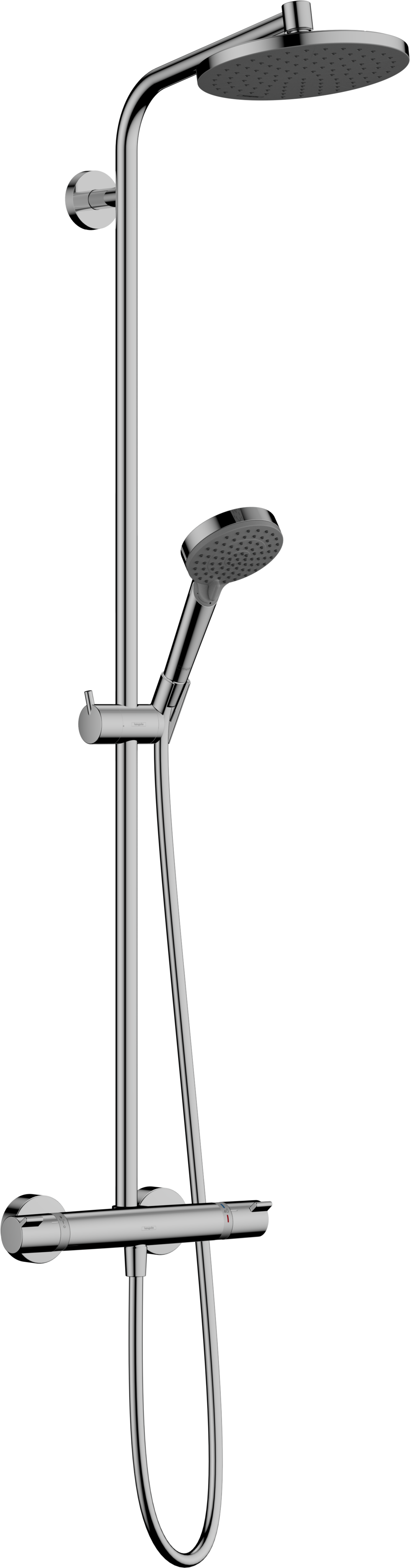

Showerpipe 200 1jet EcoSmart with thermostat

Showerpipe 200 1jet EcoSmart with thermostat
 View in AR
 360° View
Change variant
hansgrohe Vernis Blend
Select variant
Showerpipe 200 1jet EcoSmart with thermostat
Showerpipe 200 1jet with thermostat
Finish Chrome

Product code 26938000

Article features

  • consists of: overhead shower, hand shower, thermostatic shower mixer, shower hose, slider, shower rail
  • overhead shower Vernis Blend 200 1 Jet
  • shower head size overhead shower: 200 mm
  • spray type overhead shower: Rain
  • spray disc surface: chrome
  • removable shower head
  • outlet from: 4.6 l/min
  • spray type hand shower: Rain, IntenseRain
  • flow rate of hand shower at 3 bar: 7.5 l/min
  • maximum flow rate for Showerpipe at 3 bar: 8.7 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • overhead shower angle adjustable
  • height-adjustable slider
  • thermostatic mixer Ecostat Comfort
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • shower rail diameter: 22 mm
  • 2 outlets
  • WRAS 2310060

Consists of

Overhead shower 200 1jet EcoSmart
hansgrohe Vernis Blend

Overhead shower 200 1jet EcoSmart
Hand shower 100 Vario EcoSmart
hansgrohe Vernis Blend

Hand shower 100 Vario EcoSmart
Shower hose 160 cm
hansgrohe Isiflex

Shower hose 160 cm

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Certificates

WRAS (Water Regulations Advisory Scheme)

 The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Installation information

Scale drawing

Installation example

Flow diagram

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

EcoSmart

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Spray Types
Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.

IntenseRain

Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.

Trust in highest quality

5

year manufacturer’s guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
