AXOR CitterioSingle lever basin mixer 160 with pin handle without waste






Product code 39032000
Please try again.
Please try again.
Article features
- Consists of: single lever basin mixer, waste set
- ComfortZone 160 provides space for greater freedom of movement
- free-standing installation
- spout 141 mm long
- Spray pattern: laminar spray
- spray direction can be adjusted to minimise splash back
- Maximum flow rate (at 3 bar): 5 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- easy control joystick handle
- free flow non-closing waste
- QuickClean technology for easy limescale removal
- please specify when ordering if required for low pressure
- WRAS 2111039
Downloads
Technical drawings
Certificates

Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 01/11

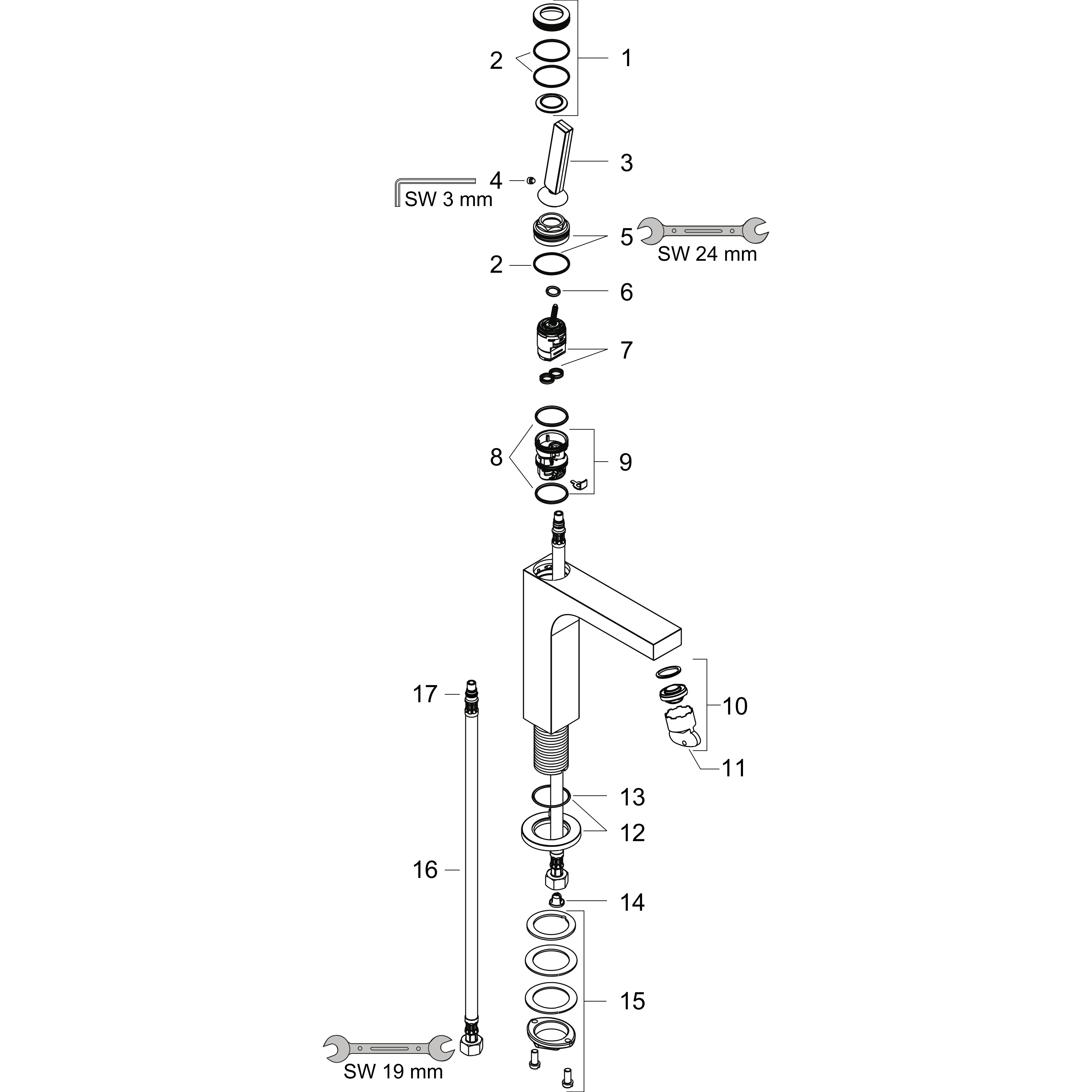

To the online spare parts shopItem no. | DescriptionProduct codeDescription and article no. |
---|
b | fixation extension 35 mm13898000 |
c | service tool for disassembling the handle92124000 |
a | waste50001000 |
1 | cover cap95666000 |
2 | O-ring 30x1,598433000 |
3 | handle39091000 |
4 | hollow set screw M6x697660000 |
5 | nut95667000 |
6 | O-ring 9x298119000 |
7 | cartridge, assy96339000 |
8 | O-ring 26x298147000 |
9 | adapter for cartridge95289000 |
10 | aerator M24x1 (5 l/min)95282000 |
11 | special tool95290000 |
12 | escutcheon95668000 |
13 | O-ring 33x1,598164000 |
14 | filter packing95291000 |
15 | fixing set (Ø 32)13961000 |
16 | connection hose 450 mm M8x0,75 G3/897206000 |
17 | O-ring 7x1,598422000 |
Innovative technologies
ComfortZone: mixers at different heights
Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.
EcoSmart: save water and energy
Hansgrohe mixers and showers, which are fitted with EcoSmart technology, require up to 60% less water than conventional products – without any loss of comfort. This means you can reduce your water and energy costs and conserve valuable resources.
QuickClean: Less limescale, more fun
Who likes cleaning? With QuickClean, limescale deposits and dirt on hansgrohe taps and showers disappear in an instant. Simply rub any dirt off the flexible silicone nozzles.
ComfortZone
ComfortZone: mixers at different heights
Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.
EcoSmart
EcoSmart: save water and energy
Hansgrohe mixers and showers, which are fitted with EcoSmart technology, require up to 60% less water than conventional products – without any loss of comfort. This means you can reduce your water and energy costs and conserve valuable resources.
QuickClean
QuickClean: Less limescale, more fun
Who likes cleaning? With QuickClean, limescale deposits and dirt on hansgrohe taps and showers disappear in an instant. Simply rub any dirt off the flexible silicone nozzles.
Impressions

Five-year manufacturer’s guarantee
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
