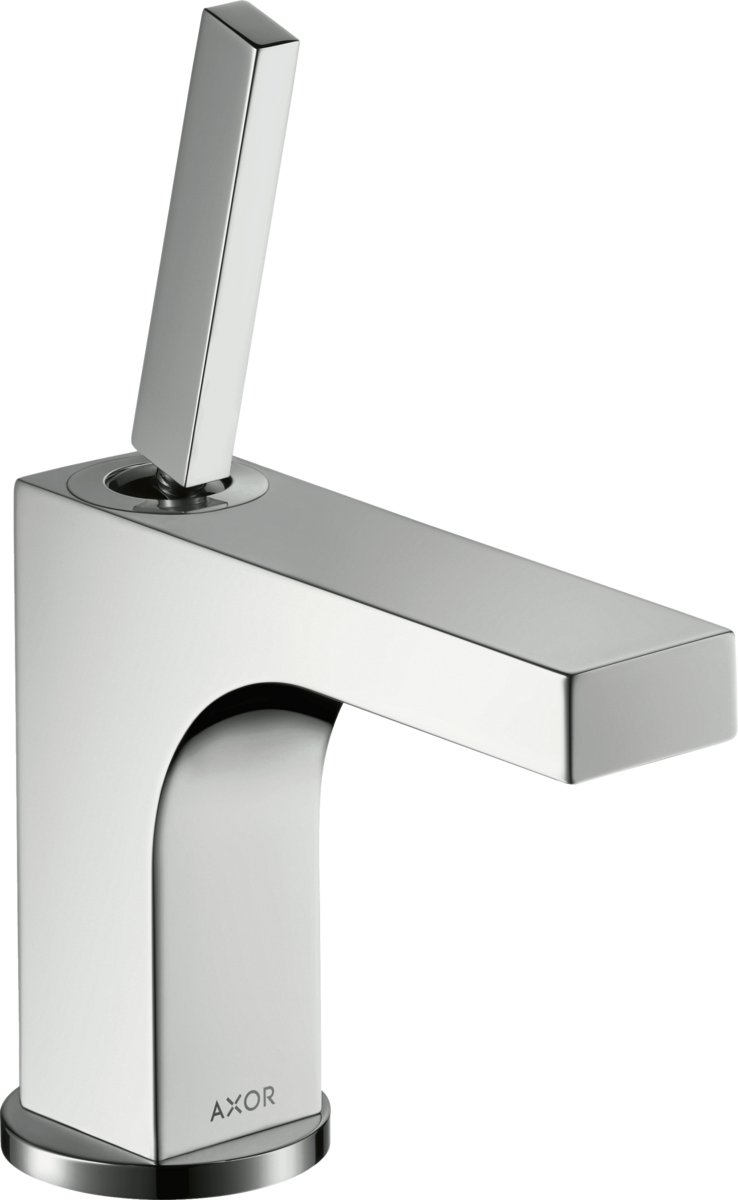

AXOR CitterioSingle lever basin mixer 90 with pin handle for cloakroom wash basins with pop-up waste
Product code 39035000
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Consists of: single lever basin mixer, waste set
- ComfortZone 90 provides space for greater freedom of movement
- spout 112 mm long
- spout height: 92 mm
- Handle variant: pin handle
- free-standing installation
- Spray pattern: laminar spray
- spray direction can be adjusted to minimise splash back
- Maximum flow rate (at 3 bar): 5 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- ceramic cartridge
- pop-up waste set 1¼"
- QuickClean technology for easy limescale removal
- WRAS 2111039
Downloads
Technical drawings
Spare parts for build year 01/11
| Item no. |
|---|
| b | fixation extension 35 mm13898000 |
| a | pop up waste94139000 |
| c | service tool for disassembling the handle92124000 |
| 1 | cover cap95666000 |
| 2 | O-ring 30x1,598433000 |
| 3 | handle39091000 |
| 4 | hollow set screw M6x697660000 |
| 5 | nut95667000 |
| 6 | O-ring 9x298119000 |
| 7 | cartridge, assy96339000 |
| 8 | O-ring 26x298147000 |
| 9 | adapter for cartridge95289000 |
| 10 | aerator M24x1 (5 l/min)95282000 |
| 11 | special tool95290000 |
| 12 | escutcheon95668000 |
| 13 | O-ring 33x1,598164000 |
| 14 | filter packing95291000 |
| 15 | fixing set (Ø 32)13961000 |
| 16 | connection hose 450 mm M8x0,75 G3/897206000 |
| 17 | O-ring 7x1,598422000 |
| 18 | pull rod96923000 |
Innovative technologies
Excellent user comfort
Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
ComfortZone
Excellent user comfort
Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.
EcoSmart
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Five-year manufacturer’s guarantee
5
year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
